Integra half cylinder _1.G3E

Standard, round profile

Overview of Advantages

  • Material: brass (nickel-plated, steel look)
  • Protection rating: IP55
  • Power supply via external electronics
  • Humidity: 0 to 95% not dewing
  • Temperature range: -25°C to +65°C
  • Reader method: ISO 14443A / contact-based
  • Interface: micro-USB (via electronics)
  • Operational capability: Stand Alone / offline (NOK+)

Product description

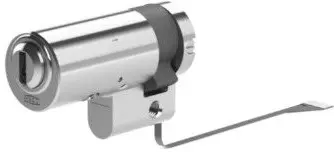

  • Integra half cylinder in standard version.
  • Mechatronic authorisation takes place via the separate electronics (online, offline, home).
  • Maximum cylinder length: 97.5mm

Scope of delivery

  • 1 Half cylinder
  • 1 fixing screw

Note

  • Requires electronics
  • Requires k-entry 6.0
  • Extension cables must be ordered separately, see chapter (Accessories & replacement parts)
Special equipment

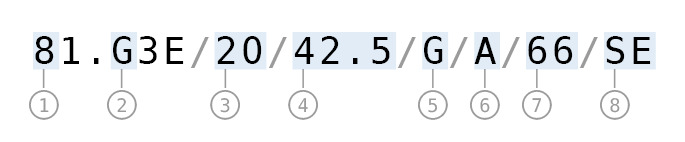

Artikelnummer
1: System9: 9000Ω²

8: 8000Ω²

4: 4000SΩ

2: 2000SΩ, 2000S, 2000 reg.
2: Security levelG: without drill protection
3: Installation type20: Electronics in faceplate
4: Length A42.5: 42.5 mm

47.5: 47.5 mm

52.5: 52.5 mm

XX: 5 mm Schritte (see appendix)
5: Security level AG: without drill protection
6: Corrosion protectionA: EN1670 Kl. 3
7: Cylinder colour A66: nickel-plated, steel look

04: gold decor
8: Cam typeSE: adjustable standard

SM: Standard position M

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

NE: adjustable standard narrow

NM: Standard position M narrow
Variants that can be ordered
Article number
91.G3E
81.G3E
41.G3E
21.G3E
