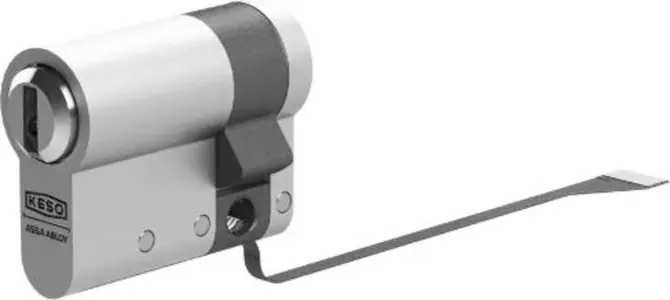

Integra half cylinder _1.A3E

Standard, Euro profile

Overview of Advantages

  • Material: brass, matt nickel plated
  • Protection rating: IP55
  • Power supply via external electronics
  • Humidity: 90 to 100% non-condensing
  • Temperature range: -25°C to +65°C
  • Reader method: ISO 14443A, contact-based
  • Interface: KAPI
  • Operational capability: Stand Alone / offline (NOK+)

Product description

  • Integra half cylinder in standard version.
  • Mechatronic authorisation takes place via the separate electronics (online, offline, home).
  • Maximum cylinder length: 90 mm
  • Special lengths on request

Scope of delivery

  • 1 Half cylinder
  • 1 fixing screw

Note

  • Requires electronics; see chapter (Accessories & replacementparts)
  • Requires k-entry 6.0
  • complies with EN15684:2012 (not certified)
  • Extension cables must be ordered separately, see chapter (Accessories & replacement parts)
Special equipment

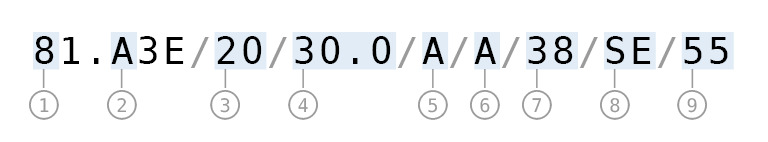

Artikelnummer
1: System9: 9000Ω²

8: 8000Ω²

4: 4000SΩ

2: 2000SΩ, 2000S, 2000 reg.
2: Security levelA: comparable EN15684:2012
3: Installation type20: Electronics in faceplate
4: Length A30: 30 mm

XX: 5 mm Schritte (see appendix)
5: Security level AA: comparable EN15684:2012
6: Corrosion protectionA: EN1670 Kl. 3
7: Cylinder colour A38: Nickel matt

04: gold decor
8: Cam typeKE: adjustable Eurokey

SE: adjustable standard

SM: Standard position M

SQ: Standard position Q

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

NE: adjustable standard narrow

NM: Standard position M narrow

NQ: Standard position Q narrow
9: Protection class55: IP55
Variants that can be ordered
Article number
91.A3E
81.A3E
41.A3E
21.A3E
