Integra half cylinder _1.H3E
with drill protection, round profile
Overview of Advantages
- Material: brass (nickel-plated, steel look)
- Protection rating: IP55
- Power supply via external electronics
- Humidity: 0 to 95% not dewing
- Temperature range: -25°C to +65°C
- Reader method: ISO 14443A / contact-based
- Interface: micro-USB (via electronics)
- Operational capability: Stand Alone / offline (NOK+)
Product description
- Integra half cylinder with hardened tumblers HRC60 for anti-drilling protection.
- Mechatronic authorisation takes place via the separate electronics (online, offline, home).
- Maximum cylinder length: 97.5mm
Scope of delivery
- 1 Half cylinder
- 1 fixing screw
Note
- Requires electronics
- Requires k-entry 6.0
- Extension cables must be ordered separately, see chapter (Accessories & replacement parts)

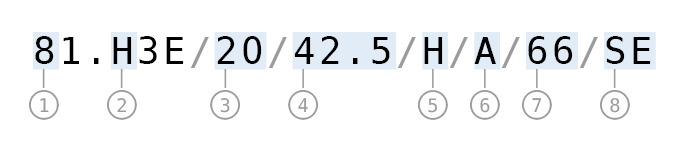

| 1: System | 8: 8000Ω² |
| 2: Security level | H: with drilling protection |
| 3: Installation type | 20: Electronics in faceplate |
| 4: Length A | 42.5: 42.5 mm 47.5: 47.5 mm 52.5: 52.5 mm XX: 5 mm Schritte (see appendix) |
| 5: Security level A | H: with drilling protection |
| 6: Corrosion protection | A: EN1670 Kl. 3 |
| 7: Cylinder colour A | 66: nickel-plated, steel look |
| 8: Cam type | SE: adjustable standard SM: Standard position M MT: Multilock MS: Multilock narrow SP: Spider gear wheel NE: adjustable standard narrow NM: Standard position M narrow |
| Article number |
|---|
| 81.H3E |
