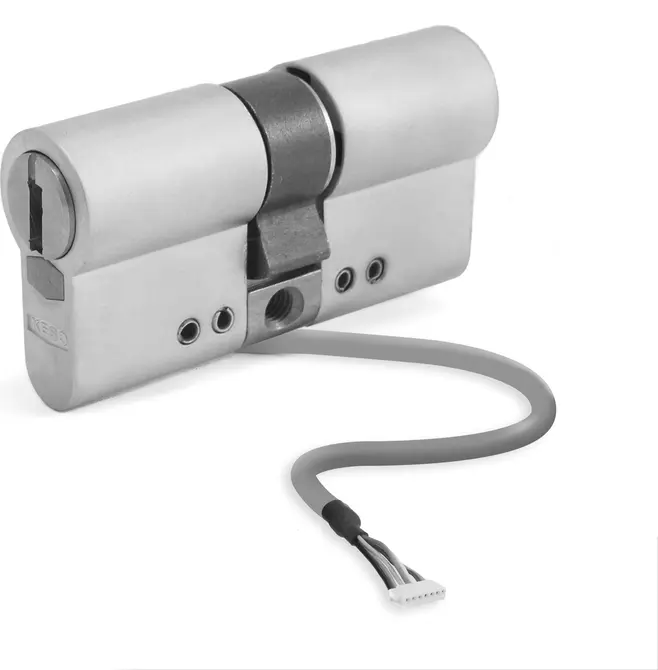

Double cylinder _1.43Z
with priority function, Euro profile
Overview of Advantages
- Priority function: one-sided
- KEKMaterial: Sidra metal
- Protection rating: IP53
- Power supply via external electronics
- Reader method: contact-free
- Temperature range: -20 to +60°
- Humidity: 0 to 95%, non-condensing
- Interface: KAPI
- Operability: Online/Offline/NOK
Product description
- Mechatronic double cylinder with priority function for all applications where opening can take place from outside with an authorised key, even with a key inserted on the inside.
- Outside mechatronic/inside mechanical
- Mechatronic authorisation takes place via the separate electronics (online, offline, home).
- The optional drilling protection corresponds to class VdS B+.
Scope of delivery
- 1 double cylinder
- 1 fixing screw
Note
- Requires electronics

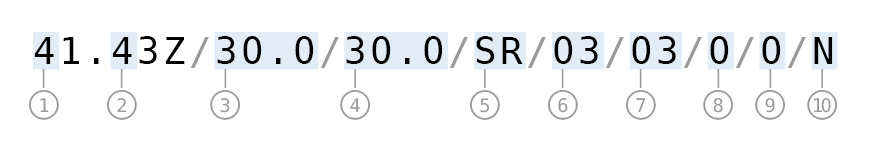

| 1: System | 4: 4000SΩ 2: 2000SΩ, 2000S, 2000 reg. |
| 2: Cylinder material | 4: Sidra metal |
| 3: Length A | 30: 30 mm XX: 5 mm Schritte (see appendix) |
| 4: Length B | 30: 30 mm XX: 5 mm Schritte (see appendix) |
| 5: Cam type | SR: Standard position R SL: Standard position L MT: Multilock MS: Multilock narrow SP: Spider gear wheel BL: Biffar left BR: Biffar right |
| 6: Sleeve A colour | 3: chrome plated matt 4: gold decor 5: bronzed light 8: chrome plated glossy |
| 7: Sleeve B colour | 3: chrome plated matt 4: gold decor 5: bronzed light 8: chrome plated glossy |
| 8: Colour rotor | 0: Standard rotor colour 4: gold decor 5: bronzed light 8: chrome plated glossy |
| 9: ABS | 0: without drill protection |
| 10: Oxide | N: without oxidation protection J: with oxidation protection |
| Article number |
|---|
| 41.43Z |
| 21.43Z |
