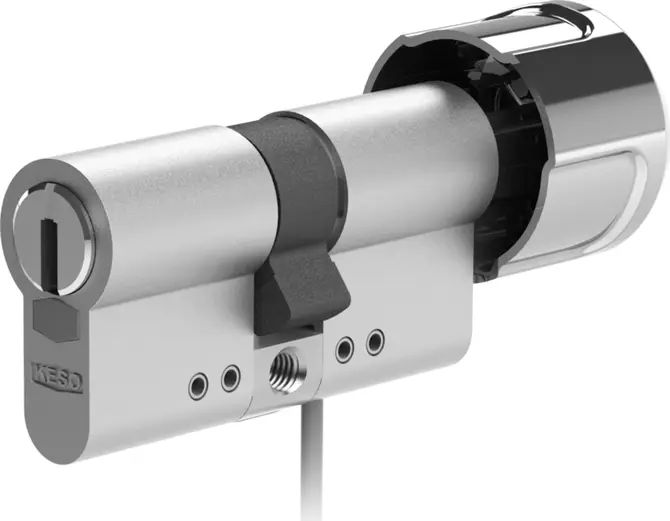

Thumbturn cylinder _1.43G

Standard, Euro profile

Overview of Advantages

  • Material: Sidra metal
  • Protection rating: IP53
  • Power supply via external electronics
  • Reader method: contact-free
  • Temperature range: -20 to +60°
  • Humidity: 0 to 95%, non-condensing
  • Interface: KAPI
  • Operability: Online/Offline/NOK

Product description

  • Mechatronic rotary knob cylinder in standard design.
  • Outside mechatronic cylinder/inside mechanical rotary knob
  • Mechatronic authorisation takes place via the separate electronics (online, offline, home).
  • The optional drilling protection corresponds to class VdS B+.

Scope of delivery

  • 1 rotary knob cylinder
  • 1 fixing screw

Note

  • Requires electronics
Special equipment
Artikelnummer
1: System4: 4000SΩ

2: 2000SΩ, 2000S, 2000 reg.
2: Cylinder material4: Sidra metal
3: Length A30: 30 mm

XX: 5 mm Schritte (see appendix)
4: Length B30: 30 mm

XX: 5 mm Schritte (see appendix)
5: Cam typeSM: Standard position M

SQ: Standard position Q

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

BL: Biffar left
6: Sleeve A colour3: chrome plated matt

4: gold decor

5: bronzed light

8: chrome plated glossy
7: Sleeve B colour3: chrome plated matt

4: gold decor

5: bronzed light

8: chrome plated glossy
8: Colour rotor0: Standard rotor colour

4: gold decor

5: bronzed light

8: chrome plated glossy
9: Thumbturn BE076: 30 mm standard

E051: 35 mm with key holding device

E052: double wing
10: Thumbturn colour2: nickel plated

3: chrome plated matt

4: gold decor

5: bronzed light

8: chrome plated glossy
11: ABS0: without drill protection

A: Side A
12: OxideN: without oxidation protection

J: with oxidation protection
Variants that can be ordered
Article number
41.43G
21.43G
