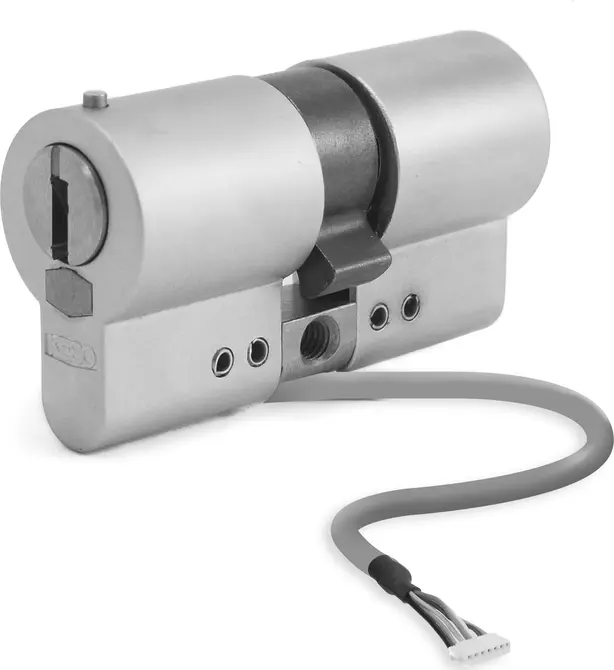

Double cylinder _1.54C
with contact on outer side, Euroswiss profile
Overview of Advantages
- Material: Sidra metal
- Protection rating: IP53
- Power supply via external electronics
- Reader method: contact-free
- Temperature range: -20 to +60°
- Humidity: 0 to 95%, non-condensing
- Interface: KAPI
- Operability: Online/Offline/NOK
Product description
- Mechatronic double cylinder with one-sided contact pin on the outer/electronics side for use with lift doors.
- The contact pin is pressed upwards when the key is inserted.
- Mechatronic authorisation takes place via the separate electronics (online, offline, home).
- The optional drilling protection corresponds to class VdS B+.
- The use of contact pin cylinders is restricted with existing systems. Clarify feasibility beforehand.
Scope of delivery
- 1 double cylinder
- 1 Fastening screw
Note
- Requires electronics
| 1: System | 4: 4000SΩ 2: 2000SΩ, 2000S, 2000 reg. 1: 1000SΩ, 1000S, 1000 reg., 1000 |
| 2: Cylinder material | 5: Sidra-Metal Euroswiss |
| 3: Length A | 30: 30 mm XX: 5 mm Schritte (see appendix) |
| 4: Length B | 30: 30 mm XX: 5 mm Schritte (see appendix) |
| 5: Cam type | SR: Standard position R SL: Standard position L MT: Multilock MS: Multilock narrow SP: Spider gear wheel |
| 6: Sleeve A colour | 3: chrome plated matt 4: gold decor 5: bronzed light 8: chrome plated glossy |
| 7: Sleeve B colour | 3: chrome plated matt 4: gold decor 5: bronzed light 8: chrome plated glossy |
| 8: Colour rotor | 0: Standard rotor colour 4: gold decor 5: bronzed light 8: chrome plated glossy |
| 9: ABS | 0: without drill protection |
| 10: Oxide | N: without oxidation protection J: with oxidation protection |
| Article number |
|---|
| 41.54C |
| 21.54C |
| 11.54C |
