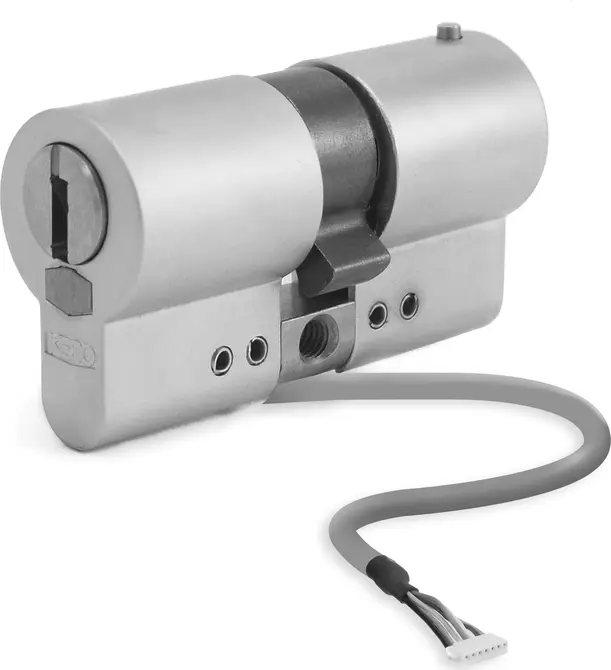

Double cylinder _1.54A

with contact on inner side, Euroswiss profile

Overview of Advantages

  • Material: Sidra metal
  • Protection rating: IP53
  • Power supply via external electronics
  • Reader method: contact-free
  • Temperature range: -20 to +60°
  • Humidity: 0 to 95%, non-condensing
  • Interface: KAPI
  • Operability: Online/Offline/NOK

Product description

  • Mechatronic double cylinder with one-sided contact pin on the inner/mechanical side for use with lift doors.
  • The contact pin is pressed upwards when the key is inserted.
  • Mechatronic authorisation takes place via the separate electronics (online, offline, home).
  • The optional drilling protection corresponds to class VdS B+.
  • The use of contact pin cylinders is only possible to a limited extent with existing systems; clarify feasibility in advance.

Scope of delivery

  • 1 double cylinder
  • 1 Fastening screw

Note

  • Requires electronics
Special equipment

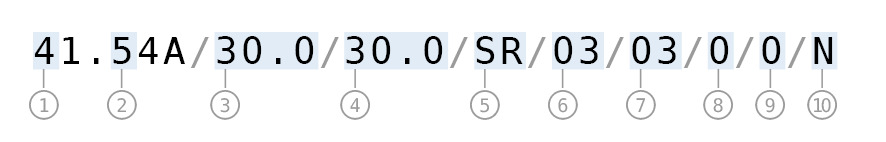

Artikelnummer
1: System4: 4000SΩ

2: 2000SΩ, 2000S, 2000 reg., 2000

1: 1000SΩ, 1000S, 1000 reg., 1000
2: Cylinder material5: Sidra-Metal Euroswiss
3: Length A30: 30 mm

XX: 5 mm Schritte (see appendix)
4: Length B30: 30 mm

XX: 5 mm Schritte (see appendix)
5: Cam typeSR: Standard position R

SL: Standard position L

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

BL: Biffar left

BR: Biffar right
6: Sleeve A colour3: chrome plated matt

4: gold decor

5: bronzed light

8: chrome plated glossy
7: Sleeve B colour3: chrome plated matt

4: gold decor

5: bronzed light

8: chrome plated glossy
8: Colour rotor0: Standard rotor colour

4: gold decor

5: bronzed light

8: chrome plated glossy
9: ABS0: without drill protection

A: Side A
10: OxideN: without oxidation protection

J: with oxidation protection
Variants that can be ordered
Article number
41.54A
21.54A
11.54A
