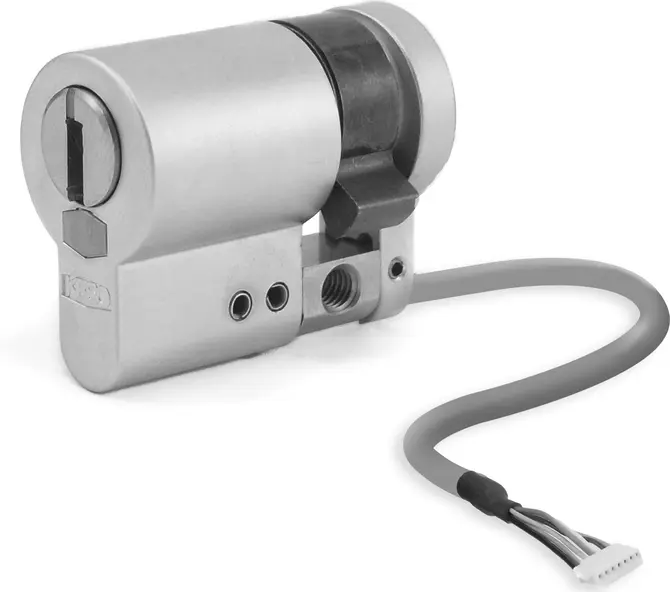

Half cylinder _1.53E
Standard, Euroswiss profile
Overview of Advantages
- Material: Sidra metal
- Protection rating: IP53
- Power supply via external electronics
- Reader method: contact-free
- Temperature range: -20 to +60°
- Humidity: 0 to 95%, non-condensing
- Interface: KAPI
- Operability: Online/Offline/NOK
Product description
- Mechatronic half cylinder in Standard version.
- Mechatronic authorisation takes place via the separate electronics (online, offline, home).
- The optional drilling protection corresponds to class VdS B+.
Scope of delivery
- 1 Half cylinder
- 1 fixing screw
Note
- Requires electronics

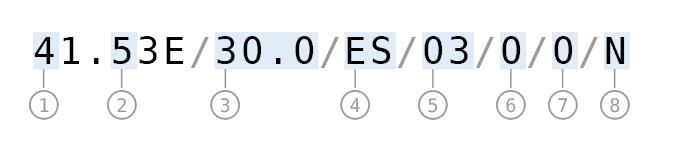

| 1: System | 4: 4000SΩ 3: 3000FPΩ, 3000SΩ, 3000S 2: 2000SΩ, 2000S, 2000 reg., 2000 1: 1000SΩ, 1000S, 1000 reg., 1000 |
| 2: Cylinder material | 5: Sidra-Metal Euroswiss |
| 3: Length A | 30: 30 mm XX: 5 mm Schritte (see appendix) |
| 4: Cam type | ES: adjustable 8x45° MT: Multilock MS: Multilock narrow SP: Spider gear wheel |
| 5: Sleeve A colour | 3: chrome plated matt 4: gold decor 5: bronzed light 8: chrome plated glossy |
| 6: Colour rotor | 0: Standard rotor colour 4: gold decor 5: bronzed light 8: chrome plated glossy |
| 7: ABS | 0: without drill protection A: Side A |
| 8: Oxide | N: without oxidation protection J: with oxidation protection |
| Article number |
|---|
| 41.53E |
| 31.53E |
| 21.53E |
| 11.53E |
