Thumb turn cylinder _1.43H.TE
with explosion protection, Euro profile
Overview of Advantages
- Material: Sidra metal
- Protection rating: IP53
- Power supply: Battery
- Battery service life: approx. 80,000 cycles or 2 years
- Reader method: contact-free
- Temperature range: -20 to +60°
- Humidity: 0 to 95%, non-condensing
- Interface: KAPI
- Operability: Offline (NOK) und Stand Alone
Product description
- Mechatronic thumbturn cylinder with integrated electronics for offline (NOK) and Stand Alone applications in explosion-prone areas.
- The electronics conform to ATEX Directives for explosion protection.
- Mechatronic cylinder outside/mechanical thumbturn inside
Scope of delivery
- 1 rotary knob cylinder including electronics
- 1 fixing screw
- 3 LR1 batteries
- 1 cover black
- * Data import

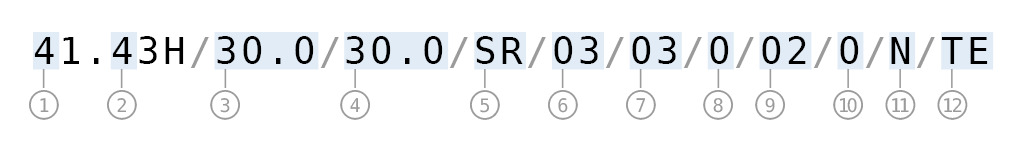

| 1: System | 4: 4000SΩ 2: 2000SΩ, 2000S, 2000 reg. |
| 2: Cylinder material | 4: Sidra metal |
| 3: Length A | 30: 30 mm XX: 5 mm Schritte (see appendix) |
| 4: Length B | 30: 30 mm XX: 5 mm Schritte (see appendix) |
| 5: Cam type | SR: Standard position R SL: Standard position L MT: Multilock MS: Multilock narrow BL: Biffar left |
| 6: Sleeve A colour | 3: chrome plated matt 4: gold decor 5: bronzed light 8: chrome plated glossy |
| 7: Sleeve B colour | 3: chrome plated matt 4: gold decor 5: bronzed light 8: chrome plated glossy |
| 8: Colour rotor | 0: Standard rotor colour 4: gold decor 5: bronzed light 8: chrome plated glossy |
| 9: Thumbturn colour | 2: nickel plated 3: chrome plated matt 4: gold decor 5: bronzed light 8: chrome plated glossy |
| 10: ABS | 0: without drill protection A: Side A |
| 11: Oxide | J: with oxidation protection N: without oxidation protection |
| 12: Function A | TE: PC Time NOK ATEX |
| Article number |
|---|
| 41.43H.TE |
| 21.43H.TE |
