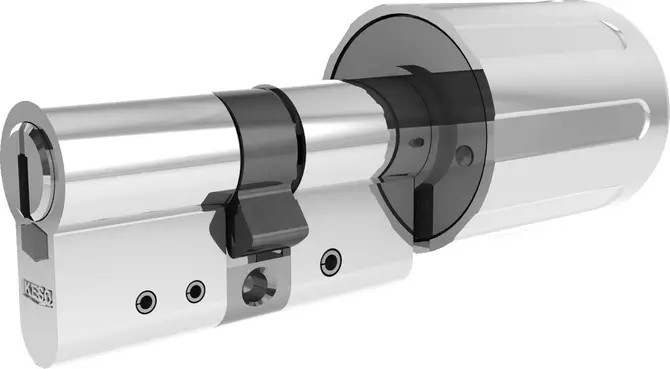

Thumb turn cylinder _1.43M.KH

with priority function, Euro profile

Overview of Advantages

  • Material: Sidra metal
  • Protection rating: IP53
  • Power supply: Battery
  • Battery service life: approx. 80,000 cycles or 2 years
  • Reader method: contact-free
  • Temperature range: -20 to +60°
  • Humidity: 0 to 95%, non-condensing
  • Interface: KAPI
  • Humidity: 15 to +70%

Product description

  • Mechatronic thumbturn cylinder with integrated electronics in Home functionality for purely stand-alone solutions with configurations via master, programming, and deletion keys. Priority function for all applications where unlocking can take place from outside with an authorised key, even when the inside thumbturn is blocked.
  • Mechatronic cylinder outside/mechanical thumbturn inside
  • The optional drilling protection corresponds to class VdS B+.

Scope of delivery

  • 1 Thumbturn cylinder including electronics
  • 1 fixing screw
  • 3 LR1 batteries
  • 1 cover black
  • * Data import
Special equipment

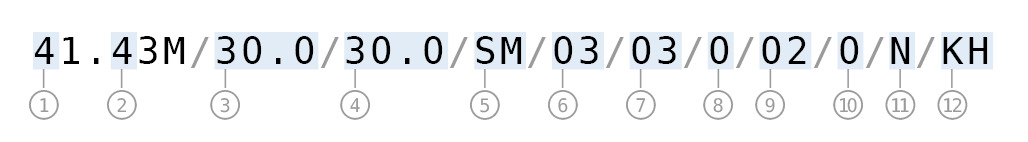

Artikelnummer
1: System4: 4000SΩ

2: 2000SΩ, 2000S, 2000 reg.
2: Cylinder material4: Sidra metal
3: Length A30: 30 mm

XX: 5 mm Schritte (see appendix)
4: Length B30: 30 mm

XX: 5 mm Schritte (see appendix)
5: Cam typeSM: Standard position M

SQ: Standard position Q

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel
6: Sleeve A colour3: chrome plated matt

4: gold decor

5: bronzed light

8: chrome plated glossy
7: Sleeve B colour3: chrome plated matt

4: gold decor

5: bronzed light

8: chrome plated glossy
8: Colour rotor0: Standard rotor colour

4: gold decor

5: bronzed light

8: chrome plated glossy
9: Thumbturn colour2: nickel plated

3: chrome plated matt

4: gold decor

5: bronzed light

8: chrome plated glossy
10: ABS0: without drill protection

A: Side A
11: OxideN: without oxidation protection

J: with oxidation protection
12: Function AKH: Home
Variants that can be ordered
Article number
41.43M.KH
21.43M.KH
