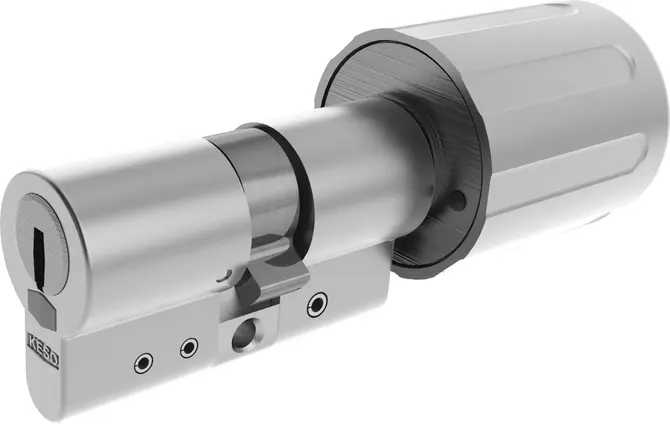

Thumb turn cylinder _1.53H.KT

Standard, Euroswiss profile

Overview of Advantages

  • Material: Sidra metal
  • Protection rating: IP53
  • Power supply: Battery
  • Battery service life: approx. 80,000 cycles or 2 years
  • Reader method: contact-free
  • Temperature range: -20 to +60°
  • Humidity: 0 to 95%, non-condensing
  • Interface: KAPI
  • Operability: Offline (NOK) und Stand Alone

Product description

  • Mechatronic thumbturn cylinder with integrated electronics for offline (NOK) and Stand Alone applications.
  • Mechatronic cylinder outside/mechanical thumbturn inside
  • The optional drilling protection corresponds to class VdS B+.

Scope of delivery

  • 1 Thumbturn cylinder including electronics
  • 1 fixing screw
  • 3 LR1 batteries
  • 1 cover black
  • * Data import
Special equipment
Artikelnummer
1: System4: 4000SΩ

3: 3000FPΩ, 3000SΩ, 3000S

2: 2000SΩ, 2000S, 2000 reg.

1: 1000SΩ, 1000S
2: Cylinder material5: Sidra-Metal Euroswiss
3: Length A30: 30 mm

XX: 5 mm Schritte (see appendix)
4: Length B30: 30 mm

XX: 5 mm Schritte (see appendix)
5: Cam typeSR: Standard position R

SL: Standard position L

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

BL: Biffar left

BR: Biffar right
6: Sleeve A colour3: chrome plated matt

4: gold decor

5: bronzed light

8: chrome plated glossy
7: Sleeve B colour3: chrome plated matt

4: gold decor

5: bronzed light

8: chrome plated glossy
8: Colour rotor0: Standard rotor colour

4: gold decor

5: bronzed light

8: chrome plated glossy
9: Thumbturn colour2: nickel plated

3: chrome plated matt

4: gold decor

5: bronzed light

8: chrome plated glossy
10: ABS0: without drill protection

A: Side A
11: OxideN: without oxidation protection

J: with oxidation protection
12: Function AKT: PC Time NOK
Variants that can be ordered
Article number
41.53H.KT
31.53H.KT
21.53H.KT
11.53H.KT
