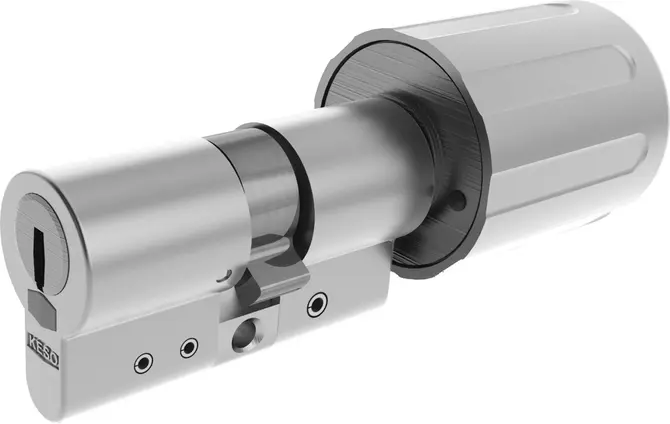

Thumb turn cylinder _1.53M.KT
with priority function, Euro profile
Overview of Advantages
- Material: Sidra metal
- Protection rating: IP53
- Power supply: Battery
- Battery service life: approx. 80,000 cycles or 2 years
- Reader method: contact-free
- Temperature range: -20 to +60°
- Humidity: 0 to 95%, non-condensing
- Interface: KAPI
- Operability: Offline (NOK) und Stand Alone
Product description
- Mechatronic thumbturn cylinder with integrated electronics for offline (NOK) and Stand Alone applications.
- Priority function for all applications where opening can take place from outside with an authorised key, even with a blocked inside thumbturn.
- Mechatronic cylinder outside/mechanical thumbturn inside
- The optional drilling protection corresponds to class VdS B+.
Scope of delivery
- 1 Thumbturn cylinder including electronics
- 1 fixing screw
- 3 LR1 batteries
- 1 cover black
- * Data import

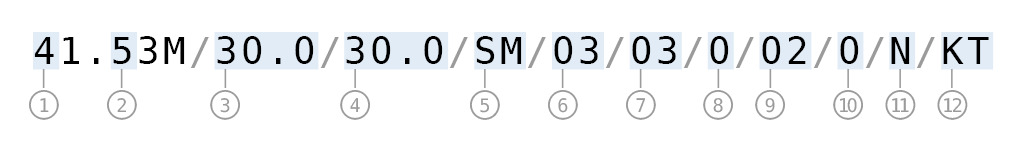

| 1: System | 4: 4000SΩ 2: 2000SΩ, 2000S, 2000 reg. 1: 1000SΩ, 1000S |
| 2: Cylinder material | 5: Sidra-Metal Euroswiss |
| 3: Length A | 30: 30 mm XX: 5 mm Schritte (see appendix) |
| 4: Length B | 30: 30 mm XX: 5 mm Schritte (see appendix) |
| 5: Cam type | SR: Standard position R SL: Standard position L MT: Multilock MS: Multilock narrow BL: Biffar left |
| 6: Sleeve A colour | 3: chrome plated matt 4: gold decor 5: bronzed light 8: chrome plated glossy |
| 7: Sleeve B colour | 3: chrome plated matt 4: gold decor 5: bronzed light 8: chrome plated glossy |
| 8: Colour rotor | 0: Standard rotor colour 4: gold decor 5: bronzed light 8: chrome plated glossy |
| 9: Thumbturn colour | 4: gold decor 5: bronzed light 8: chrome plated glossy |
| 10: ABS | 0: without drill protection A: Side A |
| 11: Oxide | N: without oxidation protection J: with oxidation protection |
| 12: Function A | KT: PC Time NOK |
| Article number |
|---|
| 41.53M.KT |
| 21.53M.KT |
| 11.53M.KT |
