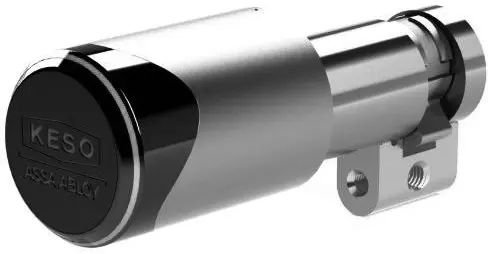

Integra digital cylinder E1.06C

Overview of Advantages

• Standard colour: nickel-plated
• Protection rating: IP54
• Power supply: Battery
• Battery life: approx. 30,000 cycles at max. 2 years (at room temperature)
• Temperature range: -20°C to +55°C
• Reader method: contact-free
• Interface: Wireless to AccessPoint
• Operational capability: Stand Alone / offline (NOK+)

Product description

• Integra digital cylinder in the standard version with integrated electronics for stand-alone applications.
• The Integra digital cylinder is LEGIC advant and MIFARE DESFIRE capable in one device.
• Maximum cylinder length 80 mm (plus rotary knob)

Scope of delivery

• 1 Thumbturn cylinder including electronics
• 1 Fastening screw
• 1 CR2 battery
• * Data import

Note

• Requires k-entry 6.0
