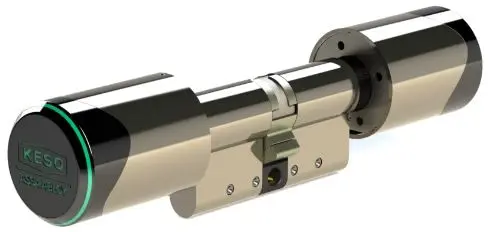

Integra digital cylinder E1.46_
Double cylinder, Euro profile
Overview of Advantages
- Standard colour: nickel-plated
- Protection rating: IP54
- Power supply: Battery
- Battery life: approx. 30,000 cycles at max. 2 years (at room temperature)
- Temperature range: -20°C to +55°C
- Reader method: contact-free
- Interface: Wireless to AccessPoint
- Operational capability: Stand Alone / offline (NOK+)
Product description
- Integra digital cylinder in the standard version with integrated electronics for stand-alone applications.
- The Integra digital cylinder is LEGIC advant and MIFARE DESFIRE capable in one device.
- Maximum cylinder length 80/80mm (plus rotary knob)
Scope of delivery
- 1 cylinder incl. electronics
- 1 Fastening screw
- 1 CR2 battery
- * Data import
Note
- The mechanical knob on the inside is removable as standard (E1.46D, E1.46E)
- Requires k-entry 6.0

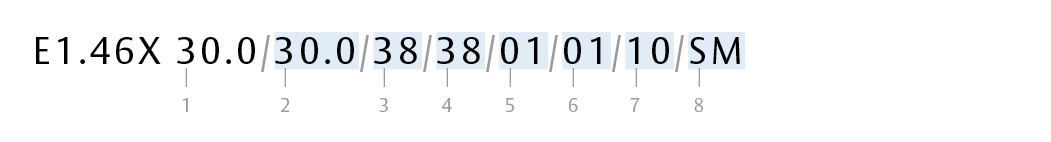

| 1: Length A | 30: 30 mm XX: 5 mm Schritte (see appendix) |
| 2: Length B | 30: 30 mm XX: 5 mm Schritte (see appendix) |
| 3: Cylinder colour A | 38: Nickel matt |
| 4: Cylinder colour B | 38: Nickel matt |
| 5: Type of knob A | 1: Metal |
| 6: Type of knob B | 1: Metal |
| 7: Mounting status | 10: Electronic thumb turn onesided removable |
| 8: Cam type | SM: Standard position M |
| Article number | Product descriptions |
|---|---|
| E1.46F | Electronics on both sides |
| E1.46E | Antipanic |
| E1.46D | Standard |
