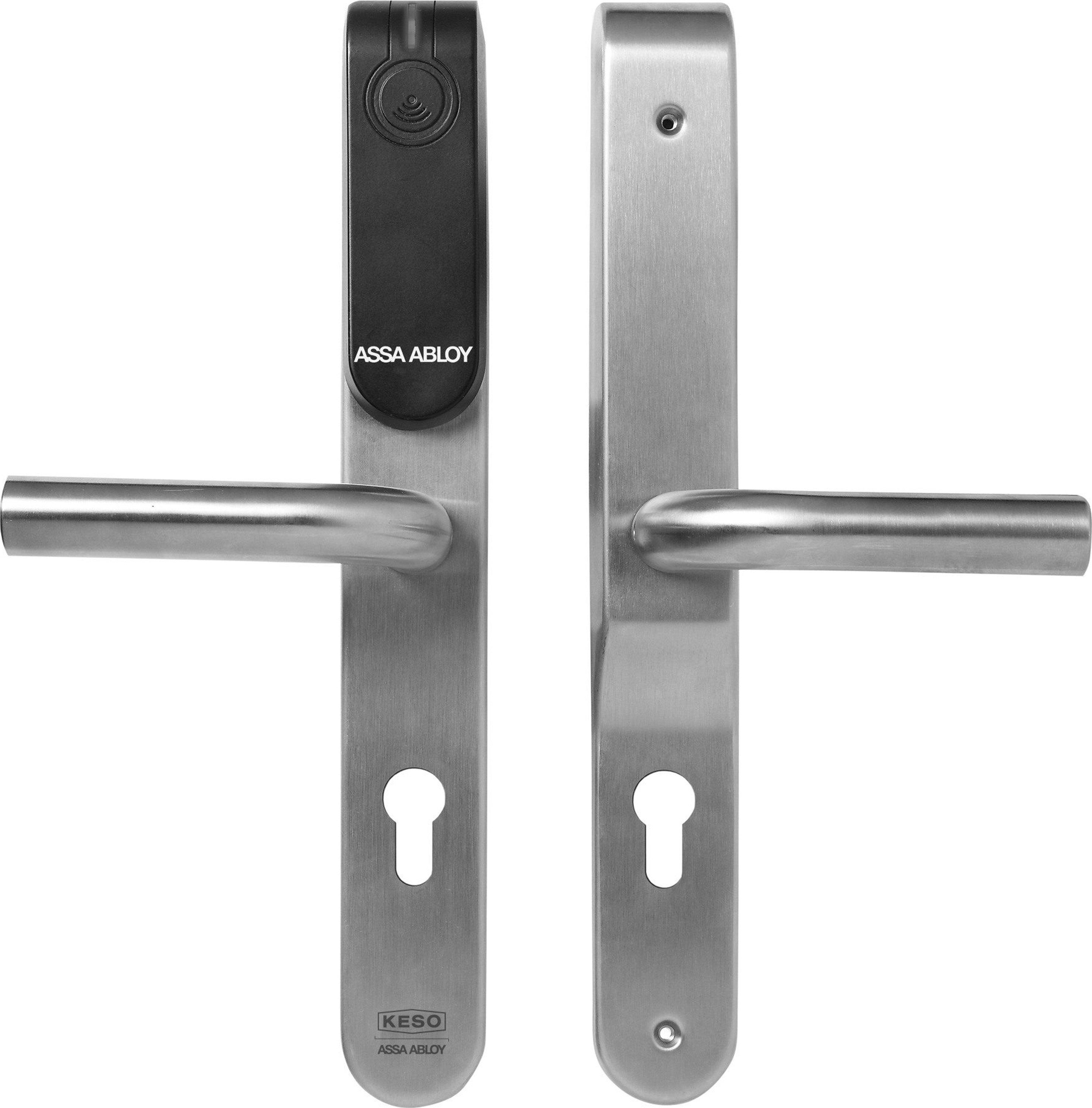

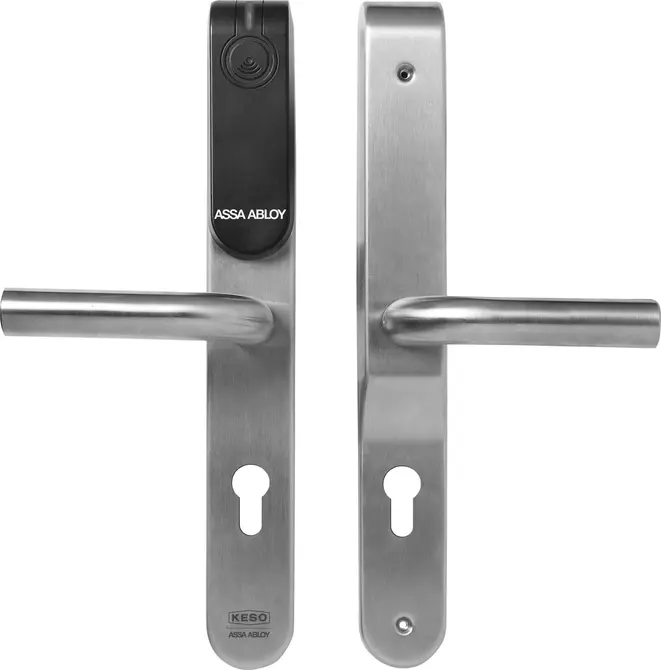

Electronic fitting KESO Integra
Offline & Stand Alone - Standard
Overview of Advantages
- Material: Stainless steel
- Protection class: IP54*
- Power supply: Battery
- Battery service life: approx. 40,000 actuations or 2 years
- Reader method: contact-free
- Temperature range: 0 to +60°*
- Interface: Wireless to AccessPoint
- Operability: Offline (NOK) und Stand Alone
- *Please note that adverse environmental conditions can impair the functionality of the product (excessive humidity, salt, external temperatures)
Product description
- Electronic fitting with integrated reader module for offline (NOK) and stand alone applications in a version for inside doors.
- Operation via battery.
- ISO 14443A on Legic Advant
Scope of delivery
- 1 Fitting incl. electronics and antenna
- 1 Fastening set
- 1 battery CR123A
- 1 Drilling template carton
Note
- Requires k-entry 6.0
- The programming device V3 is required

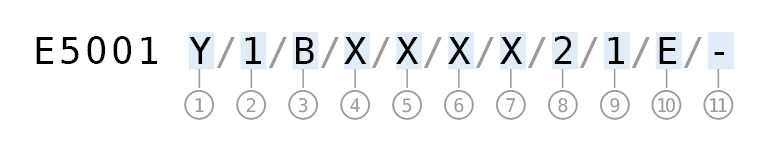

| 1: Function | Y: Offline / Stand Alone |
| 2: ID-Modul | 1: RFID |
| 3: Reader method | B: Multi RFID Legic Advant & Mifare Desfire |
| 4: Spindle | 8: 8 mm 9: 9 mm |
| 5: Door thickness | A: 40 - 49 mm B: 50 - 59 mm C: 60 - 69 mm D: 70 - 79 mm E: 80 - 89 mm F: 90 - 99 mm |
| 6: Cylinder cutout | -: Blind outside and inside 1: Euro outside and inside 3: Swiss outside and inside 5: Swiss outside, blind inside 6: Euro outside, blind inside |
| 7: Centres distance | -: without 0: 72 mm 1: 92 mm 2: 74 mm 3: 94 mm 5: 78 mm |
| 8: Handle | 2: U-shaped |
| 9: Surface | 1: Stainless steel brushed |
| 10: Logo | E: KESO / ASSA ABLOY |
| 11: Protocol | -: Without Hub |
| Order number | Product |
|---|---|
| E5001 | Electronic fitting KESO Integra E5001 |
