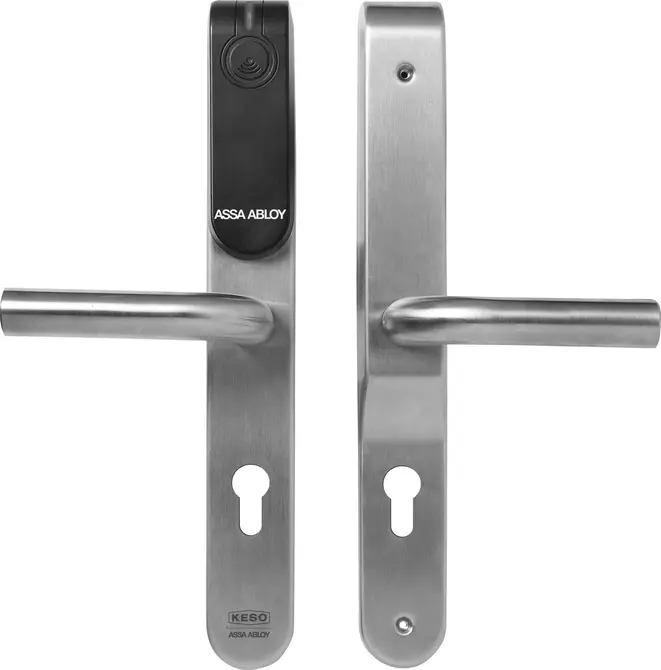

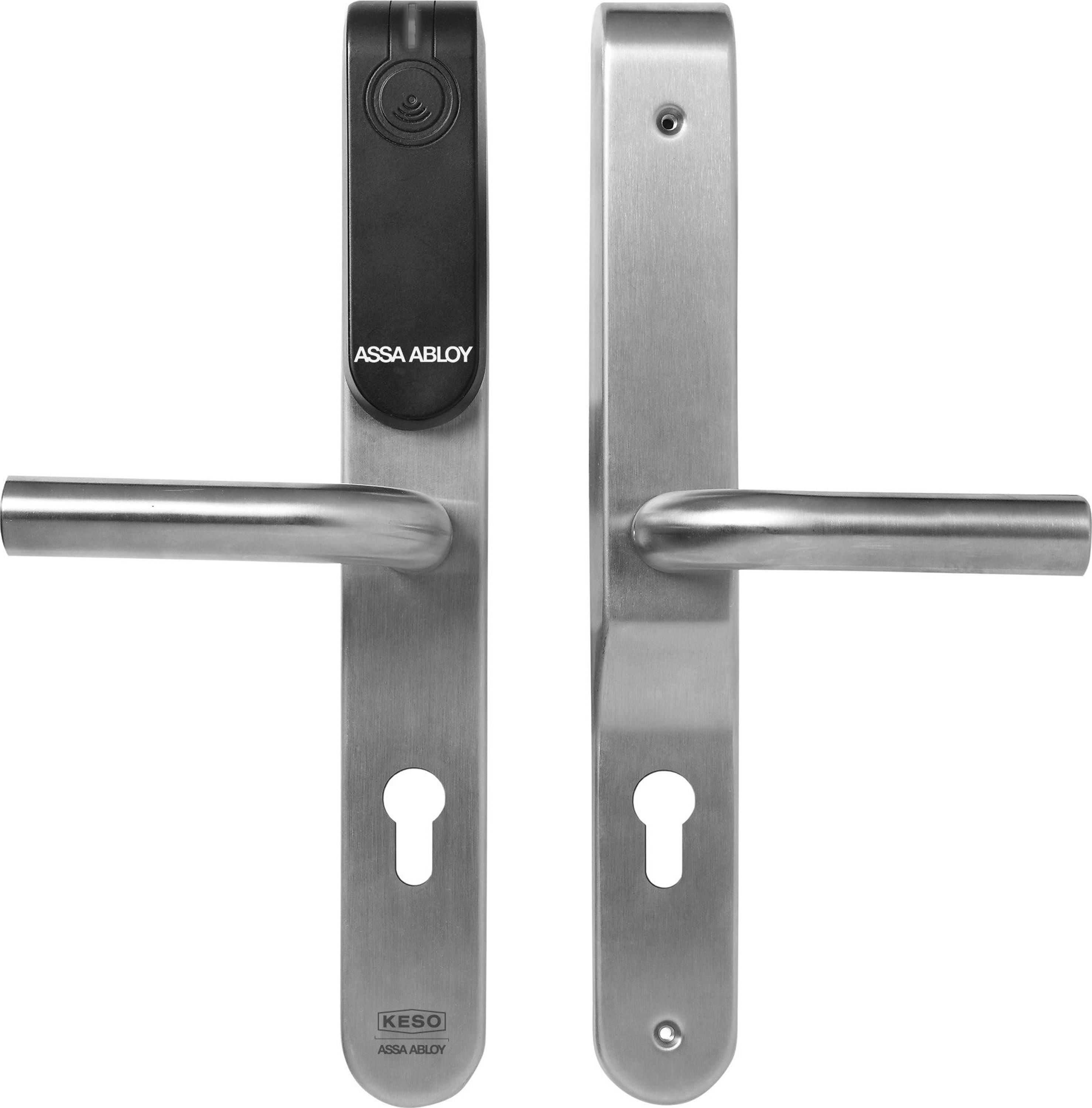

Electronic fitting KESO Integra

Offline & Stand Alone - Premium

Overview of Advantages

  • Material: Stainless steel
  • Protection class: IP54*
  • Power supply: Battery
  • Battery service life: approx. 40,000 actuations or 2 years
  • Reader method: contact-free
  • Temperature range: -25 to +60°*
  • Interface: Wireless to AccessPoint
  • Operability: Offline (NOK) und Stand Alone
  • *Please note that adverse environmental conditions can impair the functionality of the product (excessive humidity, salt, external temperatures)

Product description

  • Electronic fitting with integrated reader module for offline (NOK) and stand alone applications in the reinforced version.
  • Operation via battery.
  • ISO 14443A with Legic Advant.

Scope of delivery

  • 1 Fitting incl. electronics and antenna
  • 1 Fastening set
  • 1 battery CR123A
  • 1 Drilling template carton

Note

  • Requires k-entry 6.0
  • The programming device V3 is required
Special equipment

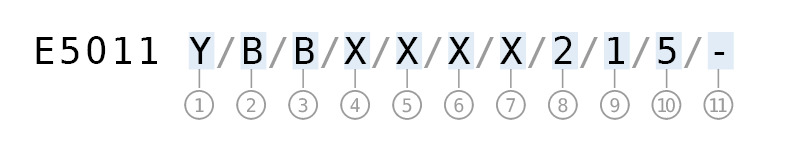

Artikelnummer
1: FunctionY: Offline / Stand Alone
2: ID-ModulB: RFID IP54
3: Reader methodB: Multi RFID Legic Advant & Mifare Desfire
4: Spindle9: 9 mm
5: Door thicknessK: 40 - 44 mm

L: 45 - 49 mm

M: 50 - 54 mm

N: 55 - 59 mm

O: 60 - 64 mm

P: 65 - 69 mm

Q: 70 - 74 mm

R: 75 - 79 mm

S: 80 - 84 mm

T: 85 - 89 mm

U: 90 - 94 mm

V: 95 - 99 mm
6: Cylinder cutout-: Blind outside and inside

1: Euro outside and inside

3: Swiss outside and inside

5: Swiss outside, blind inside

6: Euro outside, blind inside
7: Centres distance-: without

0: 72 mm

1: 92 mm

2: 74 mm

3: 94 mm

5: 78 mm
8: Handle2: U-shaped
9: Surface1: Stainless steel brushed
10: LogoE: KESO / ASSA ABLOY
11: Protocol-: Without Hub
Variants that can be ordered
Order number
Product
E5011Electronic fitting KESO Integra E5011
