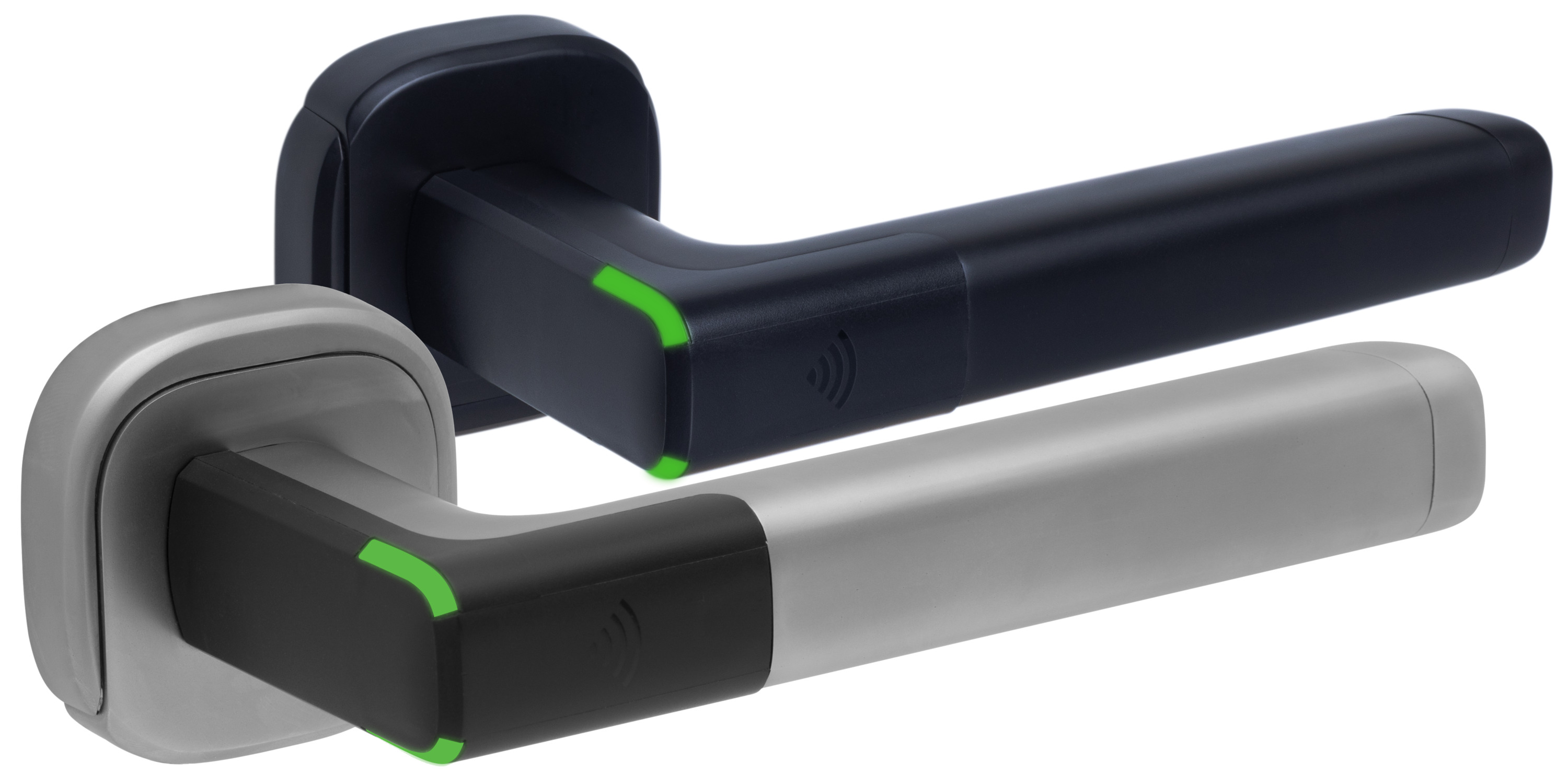

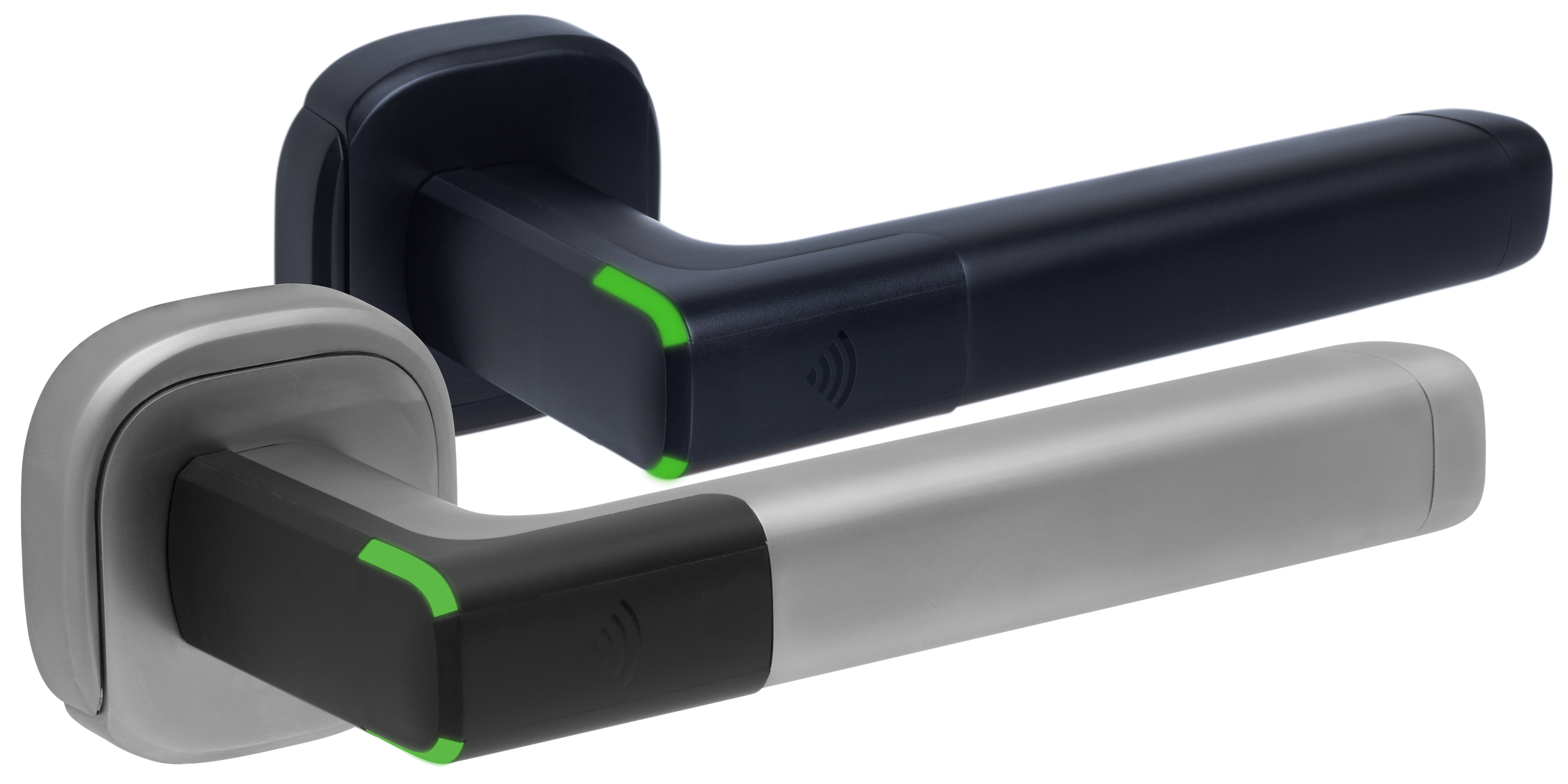

Electronic door handle Aperio H100

Online wireless

Overview of Advantages

  • Surface: satinised chrome or black
  • Application: Indoor use
  • Door thickness: Door leaf thickness between 30 and 80 mm
  • Lever handle: L-shaped, U-shaped with adapter (AH100-002)
  • Hexagon: 7 mm and 8 mm included in the scope of delivery, 9 mm available as an accessory (H100--AH100-032)
  • Power supply: Battery
  • Battery life: approx. 40,000 actions or 2 years
  • Reader method: contact-free
  • Temperature range: 0 to +55°
  • Interface: Wireless to door controller
  • Operability: Online

Product description

  • Aperio H100 electronic wireless handle with integrated reader module for online applications.
  • Requires a wireless hub and a door controller with Aperio firmware.
  • Operation via battery.
  • Authorisation is granted via the door controller and is requested from the end device by the wireless hub.

Scope of delivery

  • 1 Fitting incl. electronics and antenna
  • 1 Fastening set
  • 1 battery CR123A

Note

  • Requires door controller; see chapter 8
  • Requires Wireless Hub
  • Requires k-entry 6.0
Variants that can be ordered
Order number
Product descriptions
H100B8R-EURight
H100B8L-EULeft
H100B8R-EUBright / black
H100B8L-EUBleft / black
