i-handle S electronic fitting
PC Time NOK for battery operation
Overview of Advantages
- Material: Stainless steel
- Protection rating: IP30
- Power supply: Battery
- Reader method: contact-free
- Temperature range: -20 to +60°
- Humidity: 15 to 95%
- Interface: KAPI
- Operability: Offline (NOK) und Stand Alone
Product description

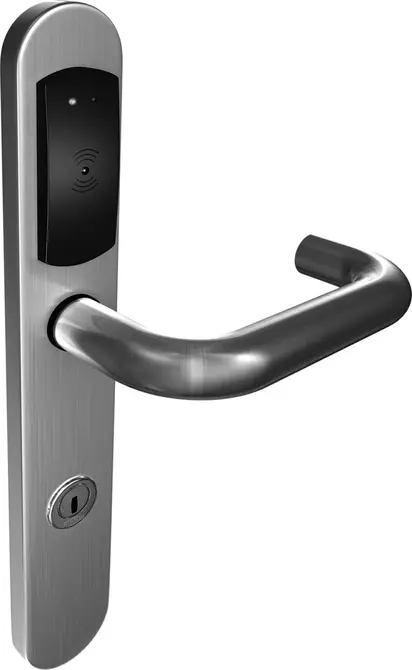

- i-Handle S electronic fitting with integrated electronics of PC Time NOK functionality for offline (NOK) and Stand Alone applications in Standard version.
- Operation via battery.
Scope of delivery
- 1 Fitting incl. electronics and antenna
- 1 Fastening set
- 3 AAA batteries
- 1 Drilling template carton
- * Data import

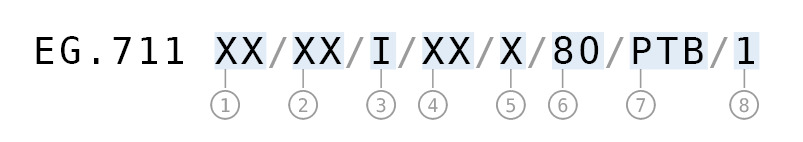

| 1: Handle set | SI: Sena VI: Vector XI: Xara ZI: Zafira |
| 2: Cylinder cutout | 00: Blank 01: EU Profile 04: Euroswiss 07: CH profile |
| 3: Surface | I: Stainless steel |
| 4: | 0: Blank 72: 72 mm 74: 74 mm 78: 78 mm 88: 88 mm 92: 92 mm 94: 94 mm 1: without |
| 5: Door thickness | 1: 38 - 43 mm 2: 44 - 49 mm 3: 50 - 55 mm 4: 56 - 61 mm 5: 62 - 67 mm 6: 68 - 73 mm 7: 104 - 110 mm 8: 80 - 85 mm 9: 74 - 80 mm |
| 6: Spindle | 80: 8 mm |
| 7: Electronics | PTB: PC Time |
| Order number | Product |
|---|---|
| EG.711.PTB | i-handle S electronic fitting EG.711.PTB |
