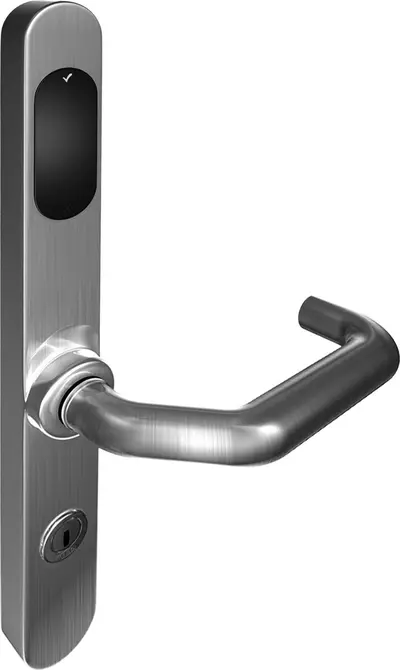

i-handle HS electronic fitting
PC Time NOK for battery operation
Overview of Advantages
- Material: Stainless steel
- Protection rating: IP54 outside, IP30 inside
- Power supply: Battery
- Battery service life: approx. 50,000 actuations or 2 years
- Reader method: contact-free
- Temperature range: -20 to +60°
- Humidity: 15 to 95%
- Interface: KAPI
- Operability: Online/Offline/NOK
Product description
- i-Handle HS electronic fitting with integrated electronics of PC Time NOK functionality for online, Offline (NOK) and Stand Alone applications in Standard version.
- Operation via battery.
Scope of delivery
- 1 Fitting incl. electronics and antenna
- 1 Fastening set
- 4 AA batteries
- 1 Drilling template carton
- * Data import
Note
- Internal battery

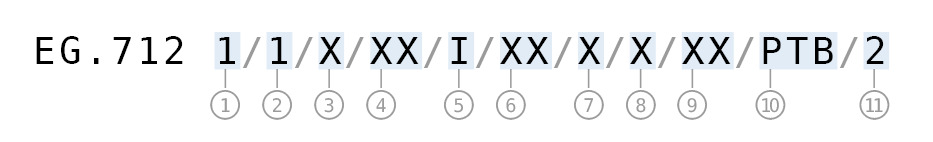

| 1: Outer handle | 1: L-shaped handle |
| 2: Inner handle | 1: L-shaped handle |
| 3: Direction | A: Left B: Right |
| 4: Cylinder cutout | 01: EU Profile 04: Euroswiss 07: CH profile 13: Blind with emergency feed |
| 5: Surface | I: Stainless steel |
| 6: | 0: Blank 72: 72 mm 74: 74 mm 78: 78 mm 88: 88 mm 92: 92 mm 94: 94 mm 2: with |
| 7: Door thickness | 1: 38 - 43 mm 2: 44 - 49 mm 3: 50 - 55 mm 4: 56 - 61 mm 5: 62 - 67 mm 6: 68 - 73 mm 7: 74 - 79 mm 8: 80 - 85 mm 9: 86 - 91 mm |
| 8: Fire protection | 6: Without fire protection 7: With fire protection |
| 9: Spindle | 80: 8 mm 90: 9 mm |
| 10: Electronics | PTB: PC Time |
| Order number | Product |
|---|---|
| EG.712.PTB | i-handle HS electronic fitting EG.712.PTB |
