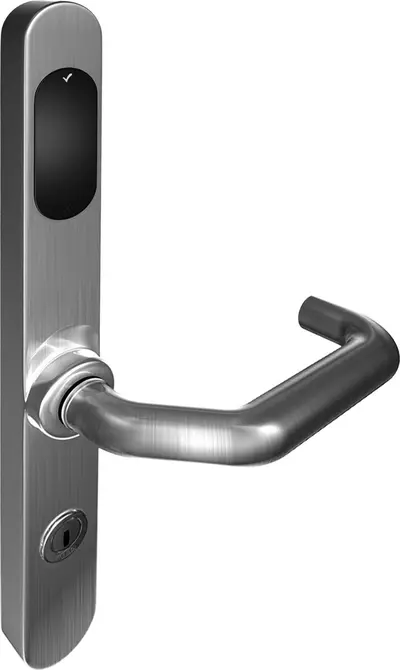

i-handle HS electronic fitting

PC Time NOK for mains operation

Overview of Advantages

  • Material: Stainless steel
  • Protection rating: IP54 outside, IP30 inside
  • Power supply: mains
  • Reader method: contact-free
  • Temperature range: -20 to +60°
  • Humidity: 15 to 95%
  • Interface: KAPI
  • Operability: Online/Offline/NOK

Product description

  • i-Handle HS electronic fitting with integrated electronics of PC Time NOK functionality for online, Offline (NOK) and Stand Alone applications in Standard version.
  • Operation via mains power supply.

Scope of delivery

  • 1 Fitting incl. electronics and antenna
  • 1 Cable for power supply
  • 1 Fastening set
  • 1 Drilling template carton
  • * Data import

Note

  • External power supply in i-Handle HS accessories chapter
  • Online electronics
Special equipment

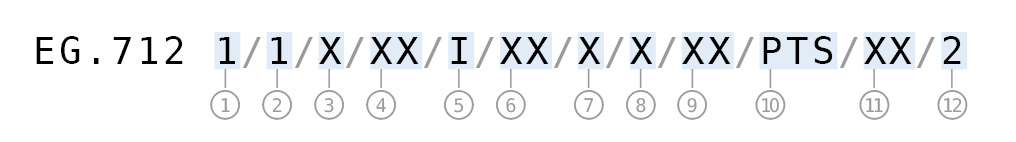

Artikelnummer
1: Outer handle1: L-shaped handle
2: Inner handle1: L-shaped handle
3: DirectionA: Left

B: Right
4: Cylinder cutout01: EU Profile

04: Euroswiss

07: CH profile

13: Blind with emergency feed
5: SurfaceI: Stainless steel
6: 0: Blank

72: 72 mm

74: 74 mm

78: 78 mm

88: 88 mm

92: 92 mm

94: 94 mm

2: with
7: Door thickness1: 38 - 43 mm

2: 44 - 49 mm

3: 50 - 55 mm

4: 56 - 61 mm

5: 62 - 67 mm

6: 68 - 73 mm

7: 74 - 79 mm

8: 80 - 85 mm

9: 86 - 91 mm
8: Fire protection6: Without fire protection

7: With fire protection
9: Spindle80: 8 mm

90: 9 mm
10: ElectronicsPTS: PC Time power operation
11: Cable0: without

13: 5 m

17: 20 m

18: 50 m

19: 100 m
Variants that can be ordered
Order number
Product
EG.712.PTSi-handle HS electronic fitting EG.712.PTS
