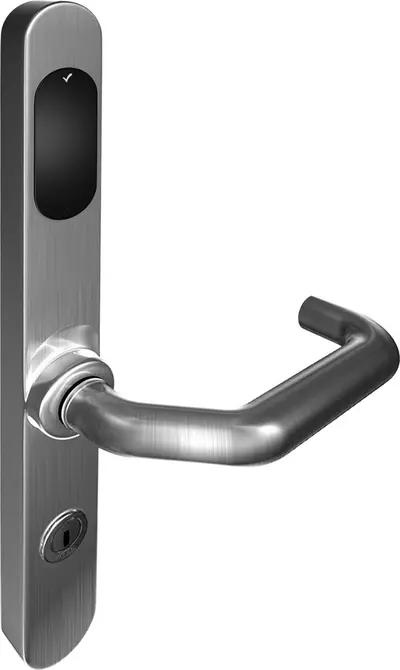

i-handle HS electronic fitting

Home for battery operation

Overview of Advantages

  • Material: Stainless steel
  • Protection rating: IP54 outside, IP30 inside
  • Power supply: Battery
  • Battery service life: approx. 50,000 actuations or 2 years
  • Reader method: contact-free
  • Temperature range: -20 to +60°
  • Humidity: 15 to 95%
  • Interface: KAPI
  • Humidity: 15 to +70%

Product description

  • i-Handle HS electronic fitting with integrated electronics of Home functionality for purely stand-alone solutions with configuration via master, programming, and deletion keys.
  • Operation via battery.

Scope of delivery

  • 1 Fitting incl. electronics and antenna
  • 4 AA batteries
  • 1 Fastening set
  • 1 Drilling template carton
  • * Data import

Note

  • External power supply in i-Handle HS accessories chapter
  • Optional online electronics
Special equipment

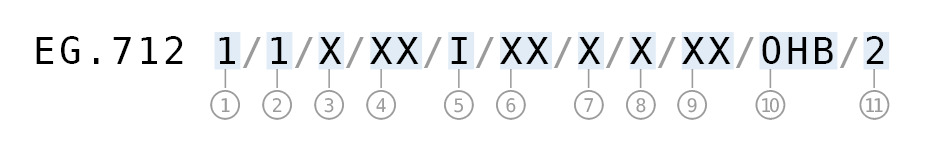

Artikelnummer
1: Outer handle1: L-shaped handle
2: Inner handle1: L-shaped handle
3: DirectionA: Left

B: Right
4: Cylinder cutout01: EU Profile

04: Euroswiss

07: CH profile

13: Blind with emergency feed
5: SurfaceI: Stainless steel
6: 0: Blank

72: 72 mm

74: 74 mm

78: 78 mm

88: 88 mm

92: 92 mm

94: 94 mm

2: with
7: Door thickness1: 38 - 43 mm

2: 44 - 49 mm

3: 50 - 55 mm

4: 56 - 61 mm

5: 62 - 67 mm

6: 68 - 73 mm

7: 74 - 79 mm

8: 80 - 85 mm

9: 86 - 91 mm
8: Fire protection6: Without fire protection

7: With fire protection
9: Spindle80: 8 mm

90: 9 mm
10: Electronics0HB: Home battery operation
Variants that can be ordered
Order number
Product
EG.712.0HBi-handle HS electronic fitting EG.712.0HB
