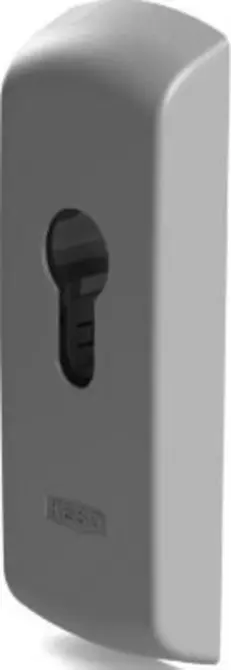

Article Set - Offline electronics Integra

mounted in the housing, Stand Alone in battery mode

Overview of Advantages

  • Material: plastic
  • Colour: nickel-plated matt, golddecor
  • Protection class: IP51
  • Power supply: Battery
  • Air humidity: 90% to 100%
  • Temperature range: -25 °C to +65 °C
  • Interface: Wireless to AccessPoint
  • Operational capability: Stand Alone / offline (NOK+)
  • Battery life: approx. 40,000 actions or 2 years
  • * The service life of the battery is reduced in tem-peratures below 0°C

Product description

  • Article set for electronics, housing and cables. Electronics for mechatronic cylinders for stand-alone and offline (NOK+) applications in the standard version.
  • The electronics are installed in a housing on the door and supplied via battery.

Scope of delivery

  • 1 electronic
  • 3 LR1 batteries
  • 1 housing
  • 1 Cable

Note

  • Requires k-entry 6.0
Special equipment

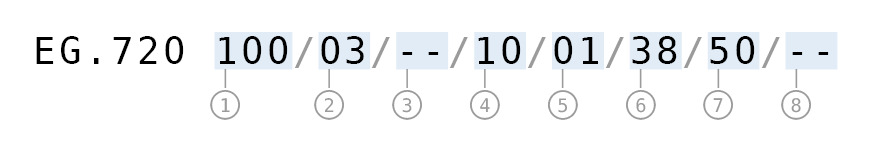

Artikelnummer
1: Firmware100: Integra
2: Installation type3: 40 mm

4: 55 mm
3: Cable--: Cylinder-dependent
4: Connection aperture10: micro USB
5: Cylinder cutout00: Blank

01: EU Profile

07: CH profile
6: Housing colour4: gold decor

38: Nickel matt
7: Protection class50: IP50
8: Explosion protection--: none
Variants that can be ordered
Order number
Product
EG.720Article Set - Offline electronics Integra EG.720
