Article Set - Offline electronics Integra

in compact housing, Stand Alone in battery operation

Overview of Advantages

  • Material: zinc die-cast
  • Colour: nickel plated matt,
  • Protection class: IP51
  • Power supply: Battery
  • Air humidity: 90% to 100%
  • Temperature range: -25 °C to +65 °C
  • Interface: Wireless to AccessPoint
  • Operational capability: Stand Alone / offline (NOK+)
  • Battery life: approx. 40,000 actions or 2 years
  • * The service life of the battery is reduced in tem-peratures below 0°C

Product description

  • Article set for electronics, housing and cables. Electronics for mechatronic cylinders for stand-alone and offline (NOK+) applications in the standard version.

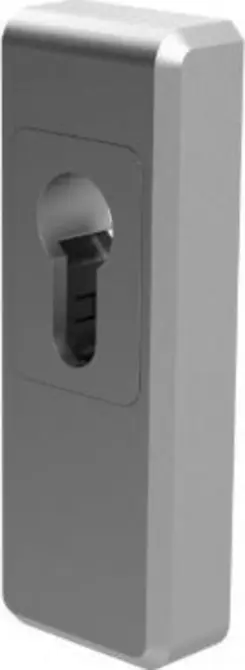

  • The electronics are mounted in a compact housing on the inside of the door on the cylinder and are battery-powered.

Scope of delivery

  • 1 electronic
  • 3 LR1 batteries
  • 1 housing
  • 1 Cable

Note

  • Requires k-entry 6.0
  • If the electronics are mounted in the compact housing, add 20 mm to the B side for mounting.
Special equipment
Artikelnummer
1: Firmware100: Integra
2: Cable--: without
3: Connection aperture10: micro USB
4: Cylinder cutout01: EU Profile

07: CH profile
5: Housing colour3: chrome plated matt

4: gold decor

38: Nickel matt
6: Protection class50: IP50
7: Explosion protection--: none
Variants that can be ordered
Order number
Product
EG.721Article Set - Offline electronics Integra EG.721
