Article Set - Offline home electronics for cylinders

Genie BS installed in housing, Home in battery operation

Overview of Advantages

  • Material: plastic
  • Colour: galvanised, matt chrome, gold decor, black
  • Protection rating: IP50
  • Power supply: Battery
  • Battery service life: approx. 50,000 actuations or 2 years
  • Temperature range: -20 to +50°
  • Humidity: 15 to +70%

Product description

  • Article set for electronics, housing and cable. Electronics for mechatronic cylinder in Home functionality for purely Stand Alone solutions with configuration via master, programming, and deletion keys.
  • Operation via battery.
  • The electronics are installed in a housing on the door and supplied via battery.

Scope of delivery

  • 1 electronic
  • 3 LR1 batteries
  • 1 housing
  • 1 Cable
  • * Data import
Special equipment

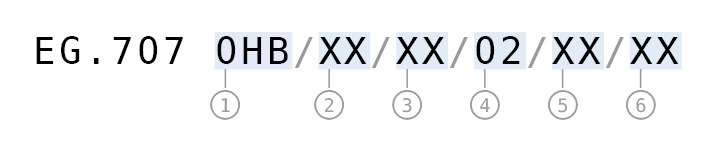

Artikelnummer
1: Electronics0HB: Home battery operation
2: Version3: 40 mm

4: 55 mm

10: on faceplate
3: Cable0: without

10: 0.2 m

1: 0,6 m

2: 1.2 m

3: 2 m
4: Connection aperture02: with connection aperture
5: Cylinder cutout00: Blank

01: EU Profile

04: Euroswiss
6: Colour fitting02: nickel plated

03: chrome plated matt

04: gold decor

05: graphite black
Variants that can be ordered
Order number
Product
EG.707.0HBArticle Set - Offline home electronics for cylinders EG.707.0HB
