Article Set - Offline electronics for cylinders

Genie BS for faceplate, PC Time in power mode

Overview of Advantages

  • Material: plastic
  • Colour: black
  • Protection rating: IP50
  • Power supply: mains
  • Temperature range: -20 to +50°
  • Humidity: 15 to +70%
  • Operability: Offline (NOK) und Stand Alone

Product description

  • Article set for electronics, faceplate and cable according to bottom configuration.
  • Electronics for mechatronic cylinder in standard version for offline (NOK) applications.
  • The electronics are integrated in the door with the corresponding faceplate and supplied via mains supply.

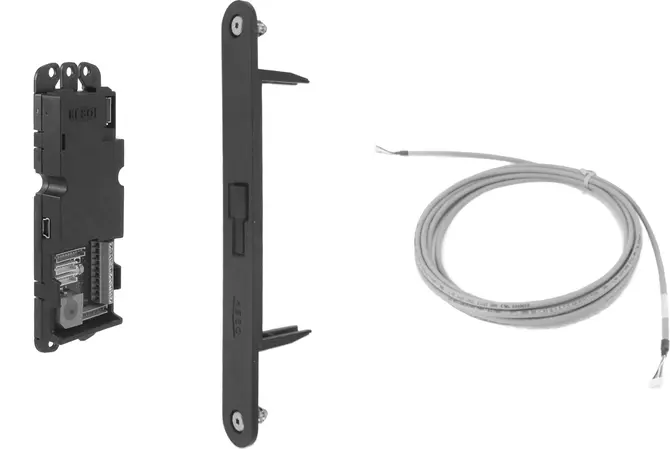

Scope of delivery

  • 1 electronic
  • 1 housing
  • 1 Extension cable (optional)
  • 1 Connecting plug
  • * Data import
Special equipment

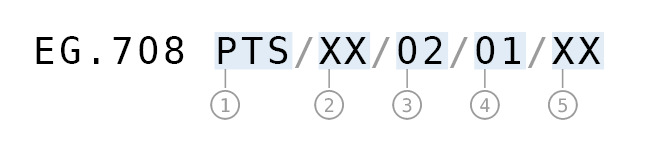

Artikelnummer
1: ElectronicsPTS: PC Time power operation
2: Version1:

2:
3: Connection aperture02: with connection aperture
4: Utilisation01: Cylinder
5: Cable0: without

1: 0,6 m

2: 1.2 m

3: 2 m

9: 4 m

10: 0.2 m

15: 6 m
Variants that can be ordered
Order number
Product
EG.708.PTSArticle Set - Offline electronics for cylinders EG.708.PTS
