MOZYeco

Overview of Advantages

  • Material: Housing chrome plated matt (standard)
  • Temperature range: -10° to +60°
  • Protection rating: IP40
  • Power supply: 12 VDC
  • Dimensions: 127 x 36 x 65 mm

Product description

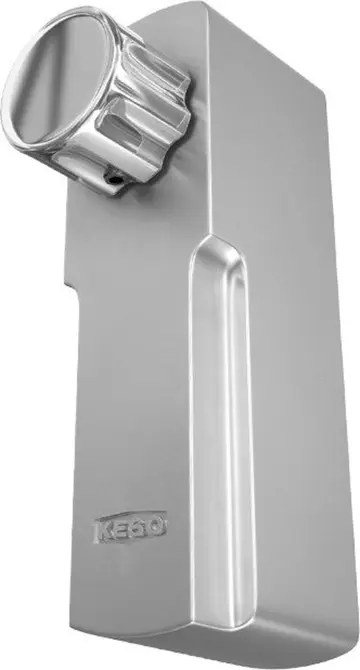

  • MOZYeco is a motorised cylinder for the automatic locking of doors.
  • Activation from outside: by means of a reader, a mechanical cylinder, or a mechatronic cylinder.
  • Activation from inside: at the push of a button
  • In the de-energised state, the door can be opened from outside using the cylinder and from inside by turning the knob.
  • Use in KESO systems is assured with a specific MOZYeco cylinder.

Scope of delivery

  • 1 Motor cylinder
  • 1 housing
  • 1 Knob
  • 1 Main cable
  • 1 Reed contact (not metal)
  • 1 cable transition set
  • 1 screw set
  • 2 heat shrink tubes
Variants that can be ordered
Order number
Product descriptions
17.012.0005without mains adapter
17.012.0001Set
