sFlipLock panic security mortise lock 14546PBa-SV

Panic function B, automatic locking, outwards opening

Overview of Advantages

  • Flip latch with sound insulation
  • Mechanical automatic locking
  • Easy to open under pre-load
  • Version with round cylinder or profile cylinder
  • Backset: 30 - 80mm

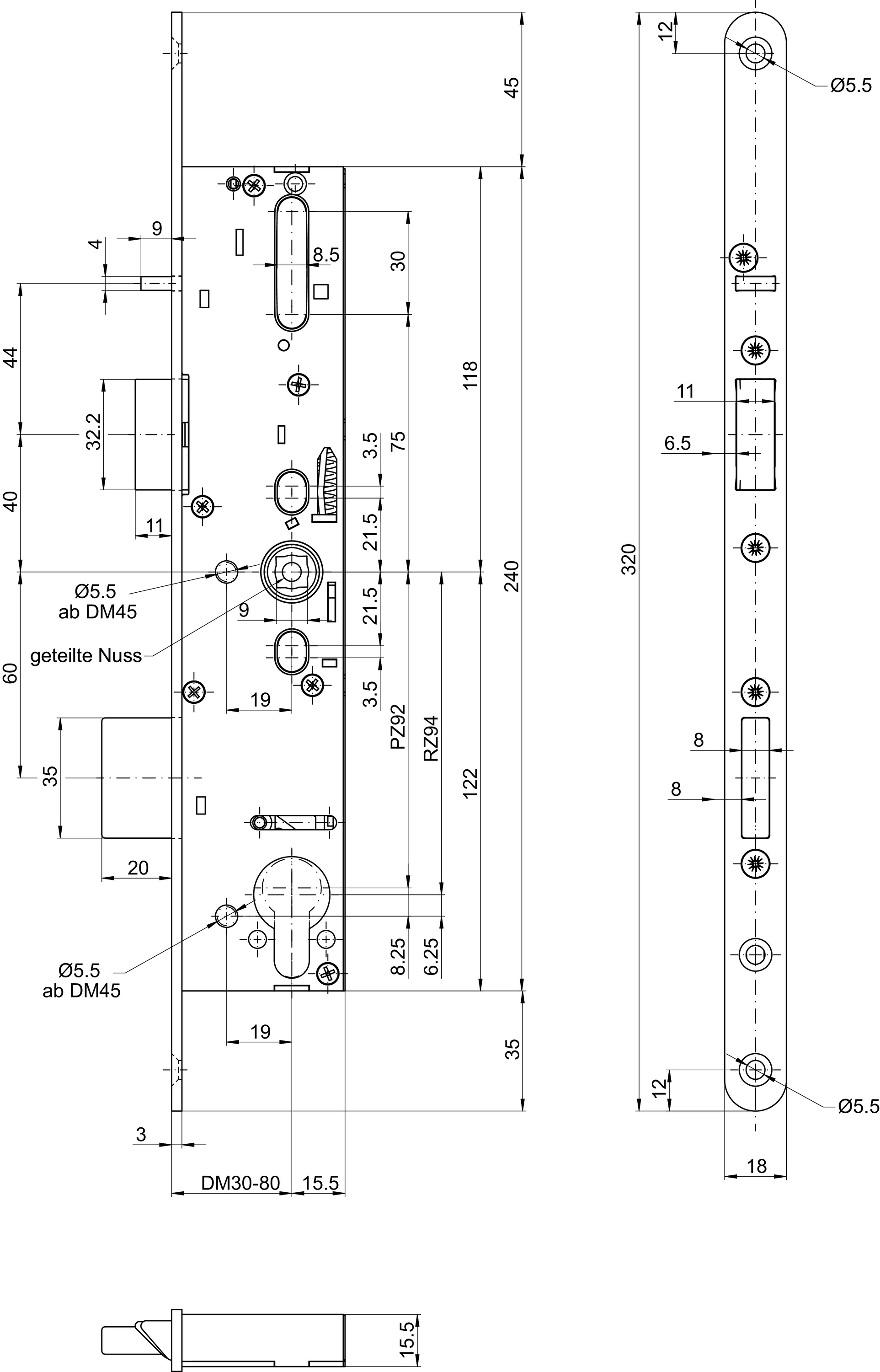

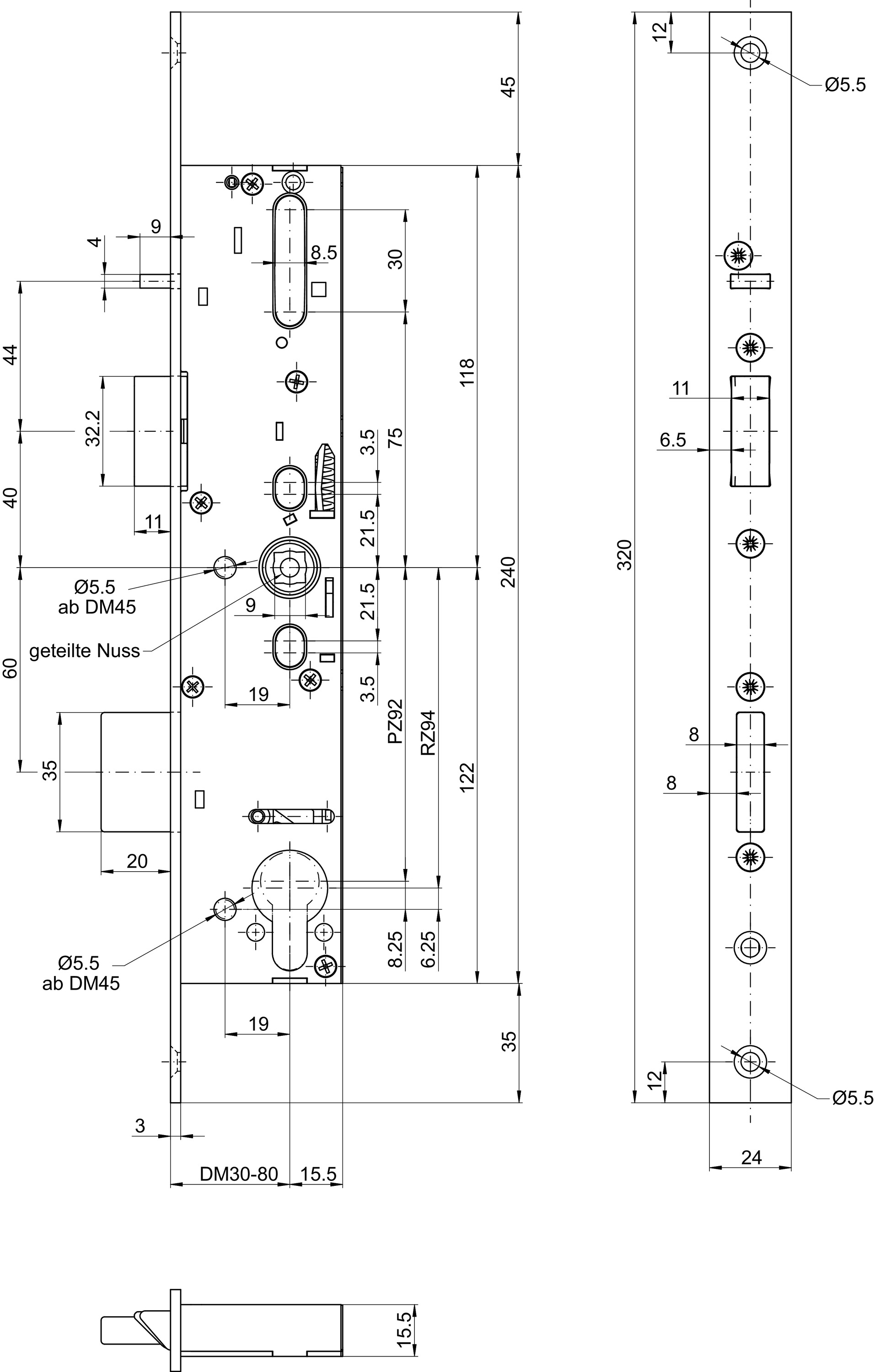

  • Round face plate in 18mm / 20mm width or square face plate 24mm
  • No
  • Certification according to EN 1125
  • Certification according to EN 1634-1 to 3
  • Intrusion resistance up to Class RC2 achievable in suitable door systems.

Product description

  • With these mortise locks, a door handle, panic door fitting or a pushbar is mounted on the inside of the door. A door handle is also mounted on the outside of the door. In unlocked state, the door can be opened from both sides. In locked state, the door can not be opened from the outside, but can always be opened from the inside (panic function opening outwards), the long bolt is retracted and the flip latch is released at the same time. The lock locks automatically when the door closes (automatic locking). The spindle (follower) is split with panic function B. This panic function is suitable for doors that also have to be opened from the outside at specific times (daytime operation). Daytime operation can be activated via the cylinder, with a key turned in the direction of opening to the stop - the door handle is then engaged on the outside of the door.

Area of Application

  • New construction and renovation
  • Internal building areas
  • In security doors, escape route and fire doors

Note

  • Suitable for freewheeling cylinders, not suitable for external bolt switch contacts. For the U-shaped version, the accessory shim B-14421 is required. Backset 45/50/65 on request.
  • Use special profile half spindle MSL 5968
  • Round rosettes (cross-screwed) only from backset 45 mm.
Technical data
Bolt throw20 mm
Latchnot reversible
SurfaceBrush-finished matt
Latch materialInox
material boltInox
Panic functionBa-SV
Alternative functionNo
Material faceplateInox
material boltInox
Follower9, two part
Dimensions of latch bolt mating componentLong bolt and automatic locking
Variants that can be ordered
Order number
Type of cylinder
Backset
Faceplate dimensions
Forend shape
Follower
DIN-direction
14602201RZ - round cylinder30320x18x3rounded9, two partRight
14602202RZ - round cylinder30320x18x3rounded9, two partLeft
14602203RZ - round cylinder35320x18x3rounded9, two partRight
14602204RZ - round cylinder35320x18x3rounded9, two partLeft
14602205RZ - round cylinder40320x18x3rounded9, two partRight
14602206RZ - round cylinder40320x18x3rounded9, two partLeft
14602211RZ - round cylinder60320x18x3rounded9, two partRight
14602213RZ - round cylinder70320x18x3rounded9, two partRight
14602214RZ - round cylinder70320x18x3rounded9, two partLeft
14602215RZ - round cylinder80320x18x3rounded9, two partRight
14602216RZ - round cylinder80320x18x3rounded9, two partLeft
14602221PZ - profile cylinder30320x18x3rounded9, two partRight
14602222PZ - profile cylinder30320x18x3rounded9, two partLeft
14602223PZ - profile cylinder35320x18x3rounded9, two partRight
14602224PZ - profile cylinder35320x18x3rounded9, two partLeft
14602225PZ - profile cylinder40320x18x3rounded9, two partRight
14602226PZ - profile cylinder40320x18x3rounded9, two partLeft
14602231PZ - profile cylinder60320x18x3rounded9, two partRight
14602232PZ - profile cylinder60320x18x3rounded9, two partLeft
14602233PZ - profile cylinder70320x18x3rounded9, two partRight
14602234PZ - profile cylinder70320x18x3rounded9, two partLeft
14602235PZ - profile cylinder80320x18x3rounded9, two partRight
14602236PZ - profile cylinder80320x18x3rounded9, two partLeft
14602241RZ - round cylinder30320x20x3rounded9, two partRight
14602242RZ - round cylinder30320x20x3rounded9, two partLeft
14602243RZ - round cylinder35320x20x3rounded9, two partRight
14602244RZ - round cylinder35320x20x3rounded9, two partLeft
14602245RZ - round cylinder40320x20x3rounded9, two partRight
14602246RZ - round cylinder40320x20x3rounded9, two partLeft
14602251RZ - round cylinder60320x20x3rounded9, two partRight
14602252RZ - round cylinder60320x20x3rounded9, two partLeft
14602253RZ - round cylinder70320x20x3rounded9, two partRight
14602254RZ - round cylinder70320x20x3rounded9, two partLeft
14602256RZ - round cylinder80320x20x3rounded9, two partLeft
14602261PZ - profile cylinder30320x20x3rounded9, two partRight
14602262PZ - profile cylinder30320x20x3rounded9, two partLeft
14602263PZ - profile cylinder35320x20x3rounded9, two partRight
14602264PZ - profile cylinder35320x20x3rounded9, two partLeft
14602271PZ - profile cylinder60320x20x3rounded9, two partRight
14602275PZ - profile cylinder80320x20x3rounded9, two partRight
14602276PZ - profile cylinder80320x20x3rounded9, two partLeft
14602281RZ - round cylinder30320x24x3Square9, two partRight
14602282RZ - round cylinder30320x24x3Square9, two partLeft
14602283RZ - round cylinder35320x24x3Square9, two partRight
14602284RZ - round cylinder35320x24x3Square9, two partLeft
14602285RZ - round cylinder40320x24x3Square9, two partRight
14602286RZ - round cylinder40320x24x3Square9, two partLeft
14602291RZ - round cylinder60320x24x3Square9, two partRight
14602292RZ - round cylinder60320x24x3Square9, two partLeft
14602293RZ - round cylinder70320x24x3Square9, two partRight
14602294RZ - round cylinder70320x24x3Square9, two partLeft
14602295RZ - round cylinder80320x24x3Square9, two partRight
14602296RZ - round cylinder80320x24x3Square9, two partLeft
14602301PZ - profile cylinder30320x24x3Square9, two partRight
14602302PZ - profile cylinder30320x24x3Square9, two partLeft
14602303PZ - profile cylinder35320x24x3Square9, two partRight
14602304PZ - profile cylinder35320x24x3Square9, two partLeft
14602305PZ - profile cylinder40320x24x3Square9, two partRight
14602306PZ - profile cylinder40320x24x3Square9, two partLeft
14602311PZ - profile cylinder60320x24x3Square9, two partRight
14602312PZ - profile cylinder60320x24x3Square9, two partLeft
14602313PZ - profile cylinder70320x24x3Square9, two partRight
14602314PZ - profile cylinder70320x24x3Square9, two partLeft
14602316PZ - profile cylinder80320x24x3Square9, two partLeft
