sFlipLock access, panic security mortise lock, motorised 15574PE-SV

Panic function E, automatic locking, evaluation lock contacts

Overview of Advantages

  • Attached motor unit with integrated motor control for the basic open/close function With switched output if the lock has undergone motorised release.
  • Display of the open position and feedback to electric door drives.
  • Opening signal (GND) e.g. via fingerprint, button, switching timer, etc.
  • Electrical interface RS485, e.g. for direct communication via biometrics scanner and error log. Tamper protection opening impulse now only via BUS.
  • Evaluation of potential-free contacts (AWS): Door status (changeover contact), handle panic side (changeover contact), delayed bolt switch contact (changeover contact), bolt switch contact (changeover contact), cylinder contact
  • Motorised opening in 1.5 seconds
  • Low power consumption: 350 mA at 24 V DC
  • Deadbolt stroke, single rotation, 20mm each
  • Mechanical automatic locking system
  • Version with round cylinder or profile cylinder
  • Backset: 30 - 80mm
  • Round face plate in 18 and 20 mm width, square face plate in 24 mm width
  • No
  • Certification according to EN 1125
  • Approved in accordance with EN 1634-1 to 3 with AWS
  • Approved in accordance with EN 12209 Class 7
  • Approved in accordance with EN 18251-2 Class 5
  • Intrusion resistance up to Class RC2 achievable in suitable door systems.

Product description

  • Exit through the locked door is possible at any time via the inside handle, panic bar or a pushbar. These pull the long bolt back and also unlock the flip latch (panic function). A knob or handle bar is mounted on the outside. The door can be opened via an electronic impulse, fingerprint, button, badge or timer switch or with the key via the drawback from the outside. Emergency opening from the outside is possible at all times via the cylinder when the door is locked. The lock locks automatically again when the door closes (automatic locking).

Area of Application

  • Internal building areas, office rooms, IT server rooms, industrial areas and public buildings
  • Security doors, escape route and fire doors in commercial and public buildings

Note

  • Suitable for freewheeling cylinders, not suitable for external bolt switch contacts. For the U-shaped version, the accessory shim B-15544 is required. Backset 45/50/65 on request. In combination with an evaluation control unit (AWS) (Art. no.14471401/02). The AWS, connecting cable and striking plates must be ordered separately.
  • Round rosettes (cross-screwed) only from backset 45 mm.
  • Only for system partners with a training certificate
Technical data
Bolt throw20 mm
Latchnot reversible
Surfacegalvanized
Version1-point locking
Latch materialstainless steel
material boltstainless steel
Panic functionE-SV
Alternative functionYes
Material faceplateINOX matt
material boltstainless steel
Follower9, one-piece
Dimensions of latch bolt mating componentFlip latch, automatic locking
Variants that can be ordered
Order number
Type of cylinder
Backset
Faceplate dimensions
Forend shape
Follower
DIN-direction
14605002RZ – round cylinder30445x18x3rounded9, one-pieceLeft
14605001RZ – round cylinder30445x18x3rounded9, one-pieceRight
14605042RZ – round cylinder30445x20x3rounded9, one-pieceLeft
14605041RZ – round cylinder30445x20x3rounded9, one-pieceRight
14605082RZ – round cylinder30445x24x3Square9, one-pieceLeft
14605081RZ – round cylinder30445x24x3Square9, one-pieceRight
14605004RZ – round cylinder35445x18x3rounded9, one-pieceLeft
14605003RZ – round cylinder35445x18x3rounded9, one-pieceRight
14605044RZ – round cylinder35445x20x3rounded9, one-pieceLeft
14605043RZ – round cylinder35445x20x3rounded9, one-pieceRight
14605084RZ – round cylinder35445x24x3Square9, one-pieceLeft
14605083RZ – round cylinder35445x24x3Square9, one-pieceRight
14605006RZ – round cylinder40445x18x3rounded9, one-pieceLeft
14605005RZ – round cylinder40445x18x3rounded9, one-pieceRight
14605046RZ – round cylinder40445x20x3rounded9, one-pieceLeft
14605045RZ – round cylinder40445x20x3rounded9, one-pieceRight
14605086RZ – round cylinder40445x24x3Square9, one-pieceLeft
14605085RZ – round cylinder40445x24x3Square9, one-pieceRight
14605012RZ – round cylinder60445x18x3rounded9, one-pieceLeft
14605011RZ – round cylinder60445x18x3rounded9, one-pieceRight
14605052RZ – round cylinder60445x20x3rounded9, one-pieceLeft
14605051RZ – round cylinder60445x20x3rounded9, one-pieceRight
14605092RZ – round cylinder60445x24x3Square9, one-pieceLeft
14605091RZ – round cylinder60445x24x3Square9, one-pieceRight
14605014RZ – round cylinder70445x18x3rounded9, one-pieceLeft
14605013RZ – round cylinder70445x18x3rounded9, one-pieceRight
14605054RZ – round cylinder70445x20x3rounded9, one-pieceLeft
14605053RZ – round cylinder70445x20x3rounded9, one-pieceRight
14605094RZ – round cylinder70445x24x3Square9, one-pieceLeft
14605093RZ – round cylinder70445x24x3Square9, one-pieceRight
14605016RZ – round cylinder80445x18x3rounded9, one-pieceLeft
14605015RZ – round cylinder80445x18x3rounded9, one-pieceRight
14605056RZ – round cylinder80445x20x3rounded9, one-pieceLeft
14605055RZ – round cylinder80445x20x3rounded9, one-pieceRight
14605096RZ – round cylinder80445x24x3Square9, one-pieceLeft
14605095RZ – round cylinder80445x24x3Square9, one-pieceRight
14605022PZ – profile cylinder30445x18x3rounded9, one-pieceLeft
14605021PZ – profile cylinder30445x18x3rounded9, one-pieceRight
14605062PZ – profile cylinder30445x20x3rounded9, one-pieceLeft
14605061PZ – profile cylinder30445x20x3rounded9, one-pieceRight
14605102PZ – profile cylinder30445x24x3Square9, one-pieceLeft
14605101PZ – profile cylinder30445x24x3Square9, one-pieceRight
14605024PZ – profile cylinder35445x18x3rounded9, one-pieceLeft
14605023PZ – profile cylinder35445x18x3rounded9, one-pieceRight
14605064PZ – profile cylinder35445x20x3rounded9, one-pieceLeft
14605063PZ – profile cylinder35445x20x3rounded9, one-pieceRight
14605104PZ – profile cylinder35445x24x3Square9, one-pieceLeft
14605103PZ – profile cylinder35445x24x3Square9, one-pieceRight
14605026PZ – profile cylinder40445x18x3rounded9, one-pieceLeft
14605025PZ – profile cylinder40445x18x3rounded9, one-pieceRight
14605066PZ – profile cylinder40445x20x3rounded9, one-pieceLeft
14605065PZ – profile cylinder40445x20x3rounded9, one-pieceRight
14605106PZ – profile cylinder40445x24x3Square9, one-pieceLeft
14605105PZ – profile cylinder40445x24x3Square9, one-pieceRight
14605032PZ – profile cylinder60445x18x3rounded9, one-pieceLeft
14605031PZ – profile cylinder60445x18x3rounded9, one-pieceRight
14605072PZ – profile cylinder60445x20x3rounded9, one-pieceLeft
14605071PZ – profile cylinder60445x20x3rounded9, one-pieceRight
14605112PZ – profile cylinder60445x24x3Square9, one-pieceLeft
14605111PZ – profile cylinder60445x24x3Square9, one-pieceRight
14605034PZ – profile cylinder70445x18x3rounded9, one-pieceLeft
14605033PZ – profile cylinder70445x18x3rounded9, one-pieceRight
14605074PZ – profile cylinder70445x20x3rounded9, one-pieceLeft
14605073PZ – profile cylinder70445x20x3rounded9, one-pieceRight
14605114PZ – profile cylinder70445x24x3Square9, one-pieceLeft
14605113PZ – profile cylinder70445x24x3Square9, one-pieceRight
14605036PZ – profile cylinder80445x18x3rounded9, one-pieceLeft
14605035PZ – profile cylinder80445x18x3rounded9, one-pieceRight
14605076PZ – profile cylinder80445x20x3rounded9, one-pieceLeft
14605075PZ – profile cylinder80445x20x3rounded9, one-pieceRight
14605116PZ – profile cylinder80445x24x3Square9, one-pieceLeft
14605115PZ – profile cylinder80445x24x3Square9, one-pieceRight
Accessories/Individual parts

Order number
Product
Connecting cable (e-) drive / (e-) access
Datenkabel_FlipLock_driveConnecting cable (e-) drive / (e-) access
External evaluation control unit (AWS)
AWS_FlipLock_access_e-accessExternal evaluation control unit (AWS)
Accessories sFlipLock / accessories mFlipLock
Netzteil 12 VDC 5AAccessories sFlipLock / accessories mFlipLock
Emergency power buffer module for sFlipLock and mFlipLock motorised
Reststrompuffer-ModulEmergency power buffer module for sFlipLock and mFlipLock motorised
Emergency power buffer module 10,7-27-V for sFlipLock and mFlipLock motorised
Base plate for U-shaped face plate
B-15544Base plate for U-shaped face plate
VariFlex sFlipLock striking plate
BV-14421VFVariFlex sFlipLock striking plate
BV-14421PFProfiFlex striking plate
Downloads for Product

General

Product sheet sFlipLock access, panic security mortise lock, motorised 15574PE-SV (PDF)
Operating instructions (PDF, 9.99 MB)

Certificates and attests

Certificate of constancy of performance EN 179 (PDF, 400 KB)
Certificate of constancy of performance EN 1125 FlipLock (PDF, 397 KB)
Certificate of constancy of performance EN 12209 (PDF, 195 KB)

Drawings for Specification Documents

Downloads (DXF, 2.38 MB)

Medias

Product image (JPG, 178 KB)
Product image (EPS, 12.45 MB)

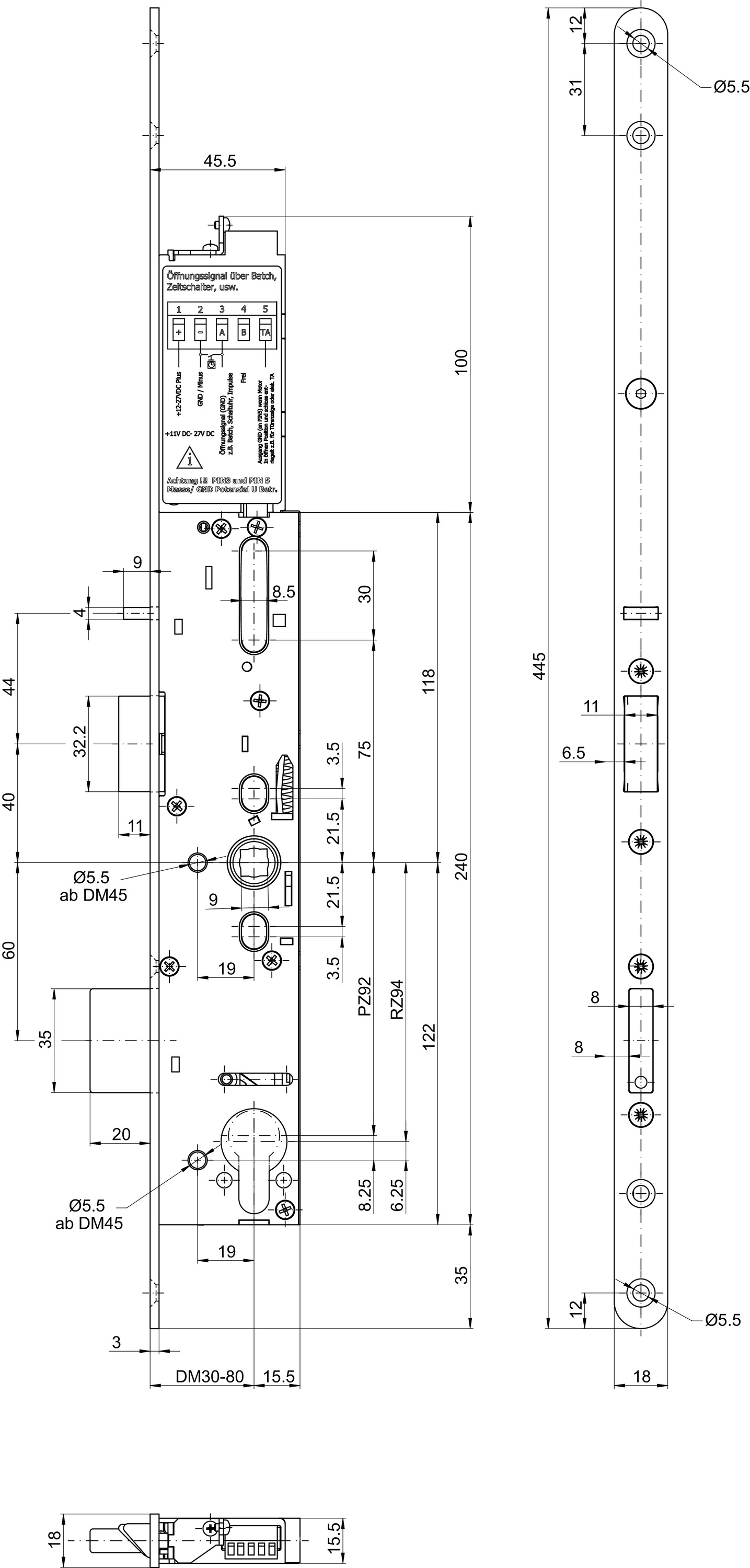

Technical drawing 1 (JPG, 327 KB)
Technical drawing 1 (EPS, 3.32 MB)

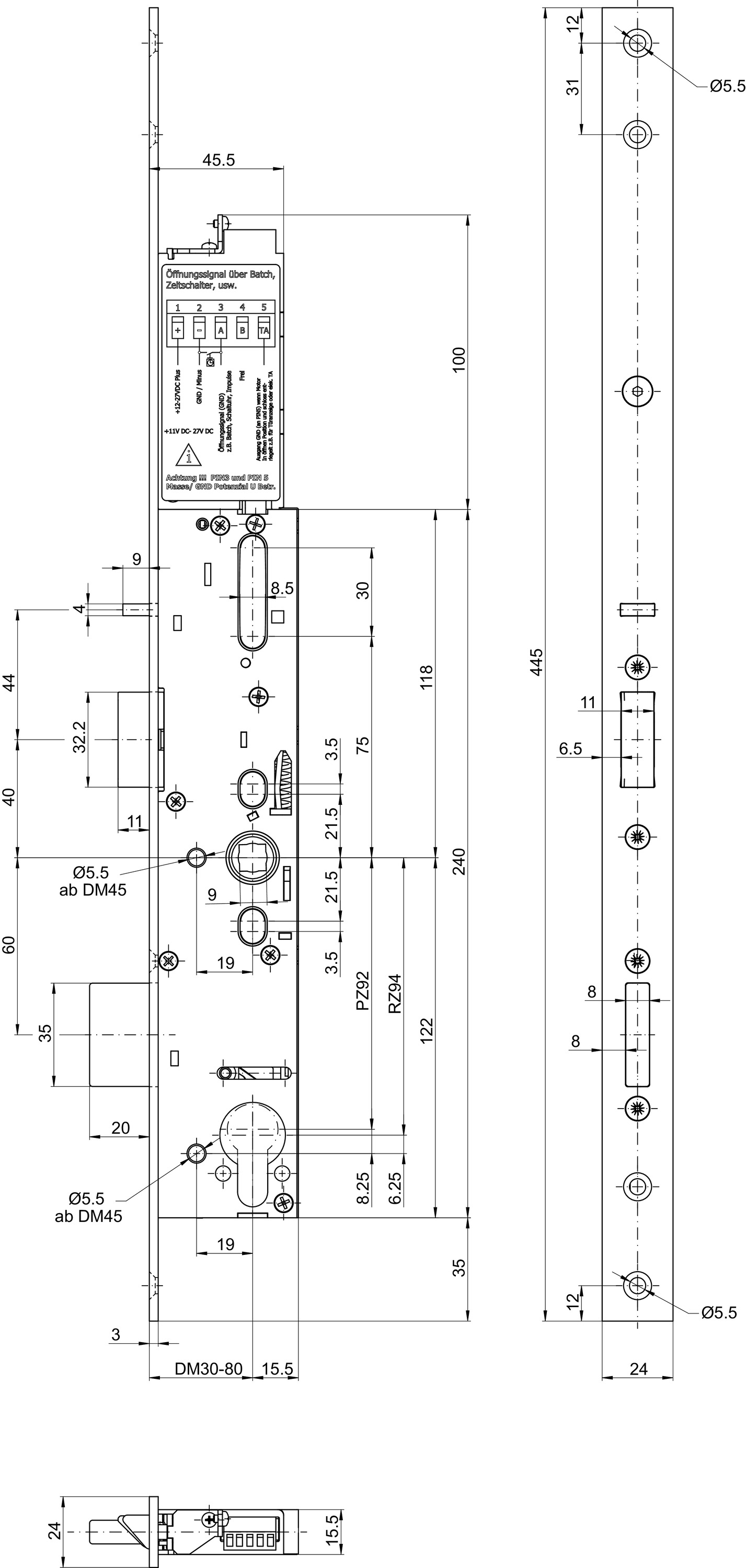

Technical drawing 2 (JPG, 333 KB)
