sFlipLock drive panic security mortise lock, motorised 15544PE-SV

Overview of Advantages

• Attached motor unit with integrated motor control for the basic open/close function With switched output if the lock has undergone motorised release.
• Display of the open position and feedback to electric door drives.
• Opening signal (GND) e.g. via fingerprint, button, switching timer, etc.
• Electrical interface RS485, e.g. for direct communication via biometrics scanner and error log. Tamper protection opening impulse now only via BUS.
• Motorised opening in 1.5 seconds
• Low power consumption: 350 mA at 24 V DC
• Deadbolt stroke, single rotation, 20mm each
• Mechanical automatic locking system
• Version with round cylinder or profile cylinder
• Backset: 30 - 80mm

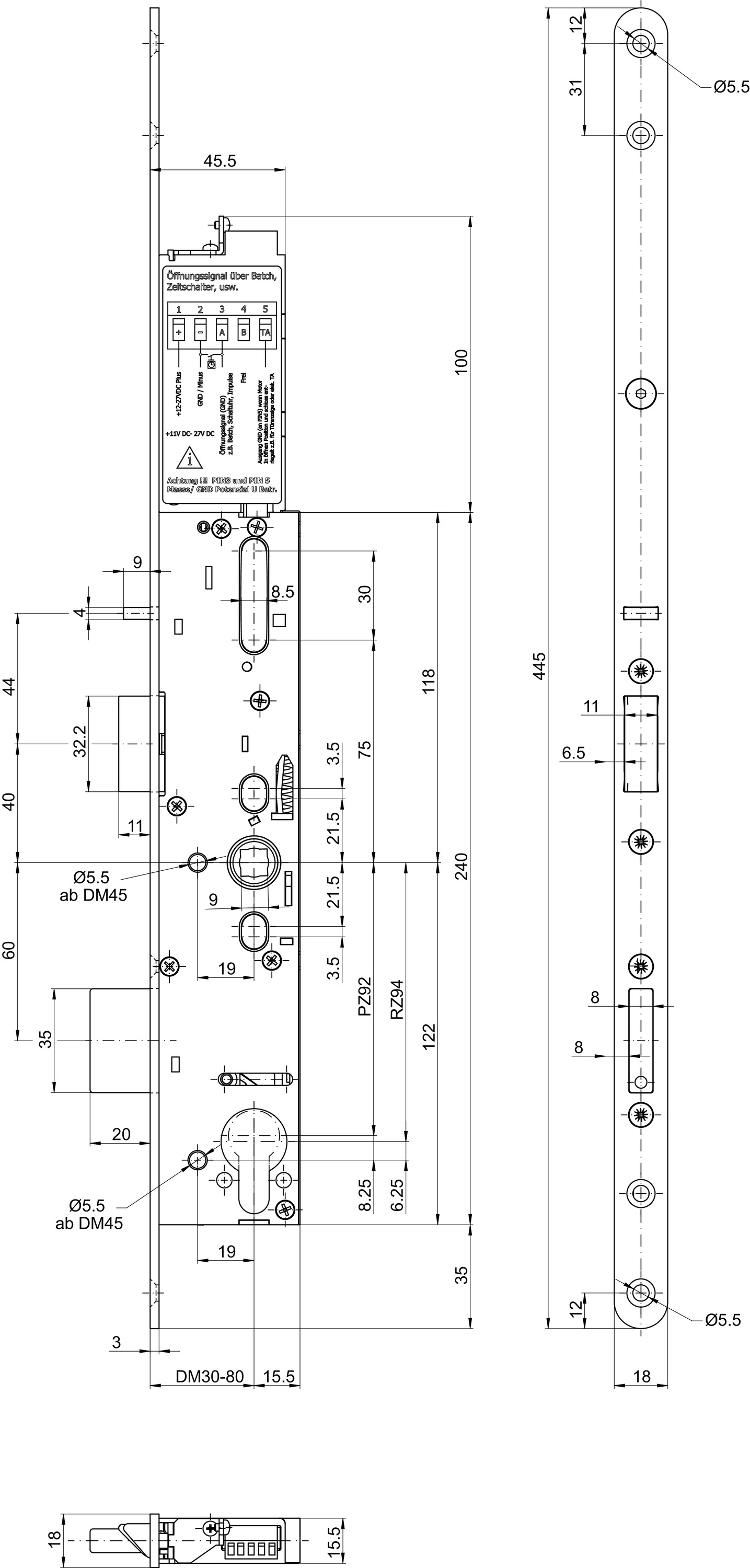

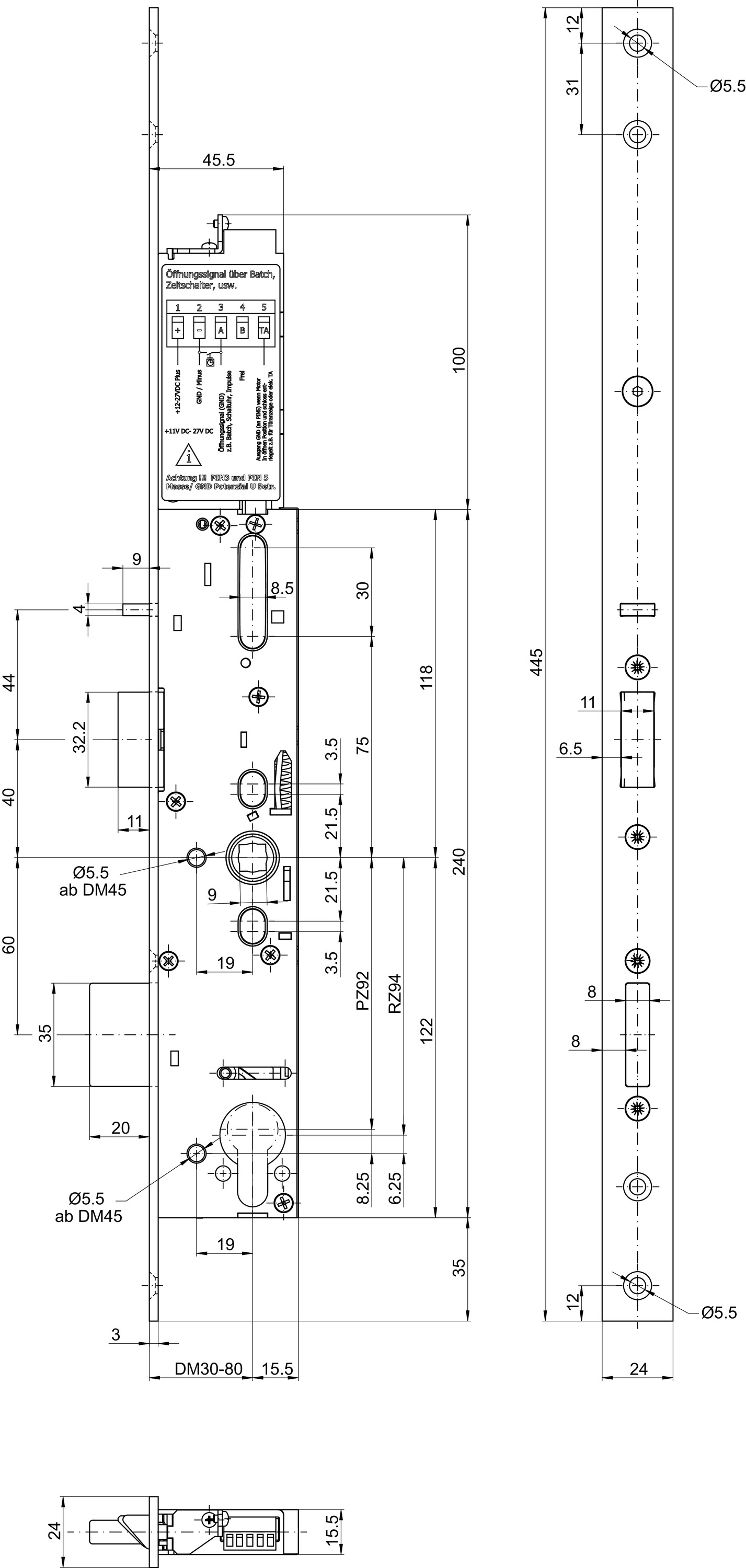

• Round face plate in 18 and 20 mm width, square face plate in 24 mm width
• No
• Certification according to EN 1125
• Approved in accordance with EN 1634-1 to 3 only with AWS
• Approved in accordance with EN 12209 Class 7
• Approved in accordance with EN 18251-2 Class 5
• Burglary resistant to class RC2 can be achieved in appropriate door systems

Product description

• Exit through the locked door is possible at any time via the inside handle, panic bar or a pushbar. These pull the long bolt back and also unlock the flip latch (panic function). A knob or handle bar is mounted on the outside. The door can be opened via an electronic impulse, fingerprint, button, badge or timer switch or with the key via the drawback from the outside. Emergency opening from the outside is possible at all times via the cylinder when the door is locked. The lock locks automatically again when the door closes (automatic locking).
• Attached motor unit with integrated motor control for the basic open/close function With switched output if the lock has undergone motorised release.

Area of Application

• Internal building areas, office rooms, IT server rooms, industrial areas and public buildings
• In security doors, escape route and fire doors

Note

• Suitable for freewheeling cylinders, not suitable for external bolt switch contacts. For the U-shaped version, the accessory shim B-15544 is required. Backset 45/50/65 on request. Connecting cable and striking plates must be ordered separately.
• Round rosettes (cross-screwed) only from backset 45 mm.
