mFlipLock security multi-point locking system 24421

Security multi-point locking system, mechanical

Overview of Advantages

  • 3 flip latches with sound insulation
  • Easy to open under pre-load
  • With latch-bolt function
  • Version with round cylinder or profile cylinder
  • Backset: 30 - 80mm
  • square face plate in 16, 18, 20 or 24 mm width, U-shaped face plate in 22 or 24 mm width
  • Certification according to EN 1634-1 to 3
  • Intrusion resistance up to Class RC3 achievable in suitable door systems

Product description

  • When the control latch runs in to the striking plate, the control latch becomes rigid and provides additional security for the door. The 3 flip latches allows the door to be opened even when under high pre-load.

Area of Application

  • New construction and renovation
  • Internal building areas
  • In security doors and fire doors.

Note

  • Suitable for freewheeling cylinders
  • On the frame side, only use bolt switch contact MSL 1886.
  • Backset 45/50/65 mm only on request.
  • Round rosettes (cross-screwed) only from backset 45 mm.
Technical data
Bolt throw20 mm
Latchnot reversible
SurfaceBrush-finished matt
Latch materialstainless steel
material boltstainless steel
Alternative functionYes
Material faceplateInox
material boltstainless steel
Follower9, one-piece
Dimensions of latch bolt mating componentFlip latch, long bolt and latch securing
Variants that can be ordered
Order number
Type of cylinder
Backset
Faceplate dimensions
Forend shape
Follower
DIN direction
14401301RZ – round cylinder301950x24x3Square9, one-pieceRight
14401302RZ – round cylinder301950x24x3Square9, one-pieceLeft
14401303RZ – round cylinder351950x24x3Square9, one-pieceRight
14401304RZ – round cylinder351950x24x3Square9, one-pieceLeft
14401306RZ – round cylinder401950x24x3Square9, one-pieceLeft
14401307RZ – round cylinder601950x24x3Square9, one-pieceRight
14401308RZ – round cylinder601950x24x3Square9, one-pieceLeft
14401309RZ – round cylinder701950x24x3Square9, one-pieceRight
14401310RZ – round cylinder701950x24x3Square9, one-pieceLeft
14401311RZ – round cylinder801950x24x3Square9, one-pieceRight
14401321PZ – profile cylinder301950x24x3Square9, one-pieceRight
14401323PZ – profile cylinder351950x24x3Square9, one-pieceRight
14401324PZ – profile cylinder351950x24x3Square9, one-pieceLeft
14401325PZ – profile cylinder401950x24x3Square9, one-pieceRight
14401326PZ – profile cylinder401950x24x3Square9, one-pieceLeft
14401327PZ – profile cylinder601950x24x3Square9, one-pieceRight
14401328PZ – profile cylinder601950x24x3Square9, one-pieceLeft
14401330PZ – profile cylinder701950x24x3Square9, one-pieceLeft
14401332PZ – profile cylinder801950x24x3Square9, one-pieceLeft
14401341RZ – round cylinder301950x20x3Square9, one-pieceRight
14401342RZ – round cylinder301950x20x3Square9, one-pieceLeft
14401343RZ – round cylinder351950x20x3Square9, one-pieceRight
14401344RZ – round cylinder351950x20x3Square9, one-pieceLeft
14401345RZ – round cylinder401950x20x3Square9, one-pieceRight
14401346RZ – round cylinder401950x20x3Square9, one-pieceLeft
14401347RZ – round cylinder601950x20x3Square9, one-pieceRight
14401348RZ – round cylinder601950x20x3Square9, one-pieceLeft
14401349RZ – round cylinder701950x20x3Square9, one-pieceRight
14401350RZ – round cylinder701950x20x3Square9, one-pieceLeft
14401351RZ – round cylinder801950x20x3Square9, one-pieceRight
14401352RZ – round cylinder801950x20x3Square9, one-pieceLeft
14401361PZ – profile cylinder301950x20x3Square9, one-pieceRight
14401362PZ – profile cylinder301950x20x3Square9, one-pieceLeft
14401365PZ – profile cylinder401950x20x3Square9, one-pieceRight
14401366PZ – profile cylinder401950x20x3Square9, one-pieceLeft
14401367PZ – profile cylinder601950x20x3Square9, one-pieceRight
14401368PZ – profile cylinder601950x20x3Square9, one-pieceLeft
14401369PZ – profile cylinder701950x20x3Square9, one-pieceRight
14401370PZ – profile cylinder701950x20x3Square9, one-pieceLeft
14401371PZ – profile cylinder801950x20x3Square9, one-pieceRight
14401372PZ – profile cylinder801950x20x3Square9, one-pieceLeft
14401381RZ – round cylinder301950x16x3Square9, one-pieceRight
14401382RZ – round cylinder301950x16x3Square9, one-pieceLeft
14401383RZ – round cylinder351950x16x3Square9, one-pieceRight
14401384RZ – round cylinder351950x16x3Square9, one-pieceLeft
14401386RZ – round cylinder401950x16x3Square9, one-pieceLeft
14401387RZ – round cylinder601950x16x3Square9, one-pieceRight
14401388RZ – round cylinder601950x16x3Square9, one-pieceLeft
14401389RZ – round cylinder701950x16x3Square9, one-pieceRight
14401390RZ – round cylinder701950x16x3Square9, one-pieceLeft
14401391RZ – round cylinder801950x16x3Square9, one-pieceRight
14401392RZ – round cylinder801950x16x3Square9, one-pieceLeft
14401402PZ – profile cylinder301950x16x3Square9, one-pieceLeft
14401403PZ – profile cylinder351950x16x3Square9, one-pieceRight
14401404PZ – profile cylinder351950x16x3Square9, one-pieceLeft
14401405PZ – profile cylinder401950x16x3Square9, one-pieceRight
14401407PZ – profile cylinder601950x16x3Square9, one-pieceRight
14401408PZ – profile cylinder601950x16x3Square9, one-pieceLeft
14401409PZ – profile cylinder701950x16x3Square9, one-pieceRight
14401410PZ – profile cylinder701950x16x3Square9, one-pieceLeft
14401411PZ – profile cylinder801950x16x3Square9, one-pieceRight
14401412PZ – profile cylinder801950x16x3Square9, one-pieceLeft
14401421RZ – round cylinder301950x24x6U-shaped9, one-pieceRight
14401422RZ – round cylinder301950x24x6U-shaped9, one-pieceLeft
14401423RZ – round cylinder351950x24x6U-shaped9, one-pieceRight
14401424RZ – round cylinder351950x24x6U-shaped9, one-pieceLeft
14401425RZ – round cylinder401950x24x6U-shaped9, one-pieceRight
14401426RZ – round cylinder401950x24x6U-shaped9, one-pieceLeft
14401427RZ – round cylinder601950x24x6U-shaped9, one-pieceRight
14401428RZ – round cylinder601950x24x6U-shaped9, one-pieceLeft
14401431RZ – round cylinder801950x24x6U-shaped9, one-pieceRight
14401432RZ – round cylinder801950x24x6U-shaped9, one-pieceLeft
14401441PZ – profile cylinder301950x24x6U-shaped9, one-pieceRight
14401443PZ – profile cylinder351950x24x6U-shaped9, one-pieceRight
14401444PZ – profile cylinder351950x24x6U-shaped9, one-pieceLeft
14401445PZ – profile cylinder401950x24x6U-shaped9, one-pieceRight
14401447PZ – profile cylinder601950x24x6U-shaped9, one-pieceRight
14401448PZ – profile cylinder601950x24x6U-shaped9, one-pieceLeft
14401451PZ – profile cylinder801950x24x6U-shaped9, one-pieceRight
14401452PZ – profile cylinder801950x24x6U-shaped9, one-pieceLeft
14401461RZ – round cylinder301950x22x6U-shaped9, one-pieceRight
14401462RZ – round cylinder301950x22x6U-shaped9, one-pieceLeft
14401463RZ – round cylinder351950x22x6U-shaped9, one-pieceRight
14401465RZ – round cylinder401950x22x6U-shaped9, one-pieceRight
14401467RZ – round cylinder601950x22x6U-shaped9, one-pieceRight
14401468RZ – round cylinder601950x22x6U-shaped9, one-pieceLeft
14401469RZ – round cylinder701950x22x6U-shaped9, one-pieceRight
14401470RZ – round cylinder701950x22x6U-shaped9, one-pieceLeft
14401471RZ – round cylinder801950x22x6U-shaped9, one-pieceRight
14401481PZ – profile cylinder301950x22x6U-shaped9, one-pieceRight
14401482PZ – profile cylinder301950x22x6U-shaped9, one-pieceLeft
14401484PZ – profile cylinder351950x22x6U-shaped9, one-pieceLeft
14401485PZ – profile cylinder401950x22x6U-shaped9, one-pieceRight
14401486PZ – profile cylinder401950x22x6U-shaped9, one-pieceLeft
14401487PZ – profile cylinder601950x22x6U-shaped9, one-pieceRight
14401488PZ – profile cylinder601950x22x6U-shaped9, one-pieceLeft
14401489PZ – profile cylinder701950x22x6U-shaped9, one-pieceRight
14401490PZ – profile cylinder701950x22x6U-shaped9, one-pieceLeft
14401492PZ – profile cylinder801950x22x6U-shaped9, one-pieceLeft
14401503RZ – round cylinder351950x18x3Square9, one-pieceRight
14401504RZ – round cylinder351950x18x3Square9, one-pieceLeft
14401505RZ – round cylinder401950x18x3Square9, one-pieceRight
14401506RZ – round cylinder401950x18x3Square9, one-pieceLeft
14401507RZ – round cylinder601950x18x3Square9, one-pieceRight
14401508RZ – round cylinder601950x18x3Square9, one-pieceLeft
14401509RZ – round cylinder701950x18x3Square9, one-pieceRight
14401510RZ – round cylinder701950x18x3Square9, one-pieceLeft
14401512RZ – round cylinder801950x18x3Square9, one-pieceLeft
14401521PZ – profile cylinder301950x18x3Square9, one-pieceRight
14401522PZ – profile cylinder301950x18x3Square9, one-pieceLeft
14401523PZ – profile cylinder351950x18x3Square9, one-pieceRight
14401525PZ – profile cylinder401950x18x3Square9, one-pieceRight
14401526PZ – profile cylinder401950x18x3Square9, one-pieceLeft
14401527PZ – profile cylinder601950x18x3Square9, one-pieceRight
14401528PZ – profile cylinder601950x18x3Square9, one-pieceLeft
14401529PZ – profile cylinder701950x18x3Square9, one-pieceRight
14401530PZ – profile cylinder701950x18x3Square9, one-pieceLeft
14401531PZ – profile cylinder801950x18x3Square9, one-pieceRight
14401532PZ – profile cylinder801950x18x3Square9, one-pieceLeft
Accessories/Individual parts

Order number
Product
VariFlex mFlipLock striking plate
BV-24421VFVariFlex mFlipLock striking plate
ProfiFlex mFlipLock striking plate
BV-24421PFProfiFlex mFlipLock striking plate
XL face plate extensions for mFlipLock
XL-24421XL face plate extensions for mFlipLock
XL face plate extensions, 350mm, 550mm or 800mm
Downloads for Product

General

Product sheet mFlipLock security multi-point locking system 24421 (PDF)
Operating instructions (PDF, 7.92 MB)

Drawings for Specification Documents

Downloads (DXF, 561 KB)

Medias

Product image (JPG, 82 KB)
Product image (EPS, 33.78 MB)

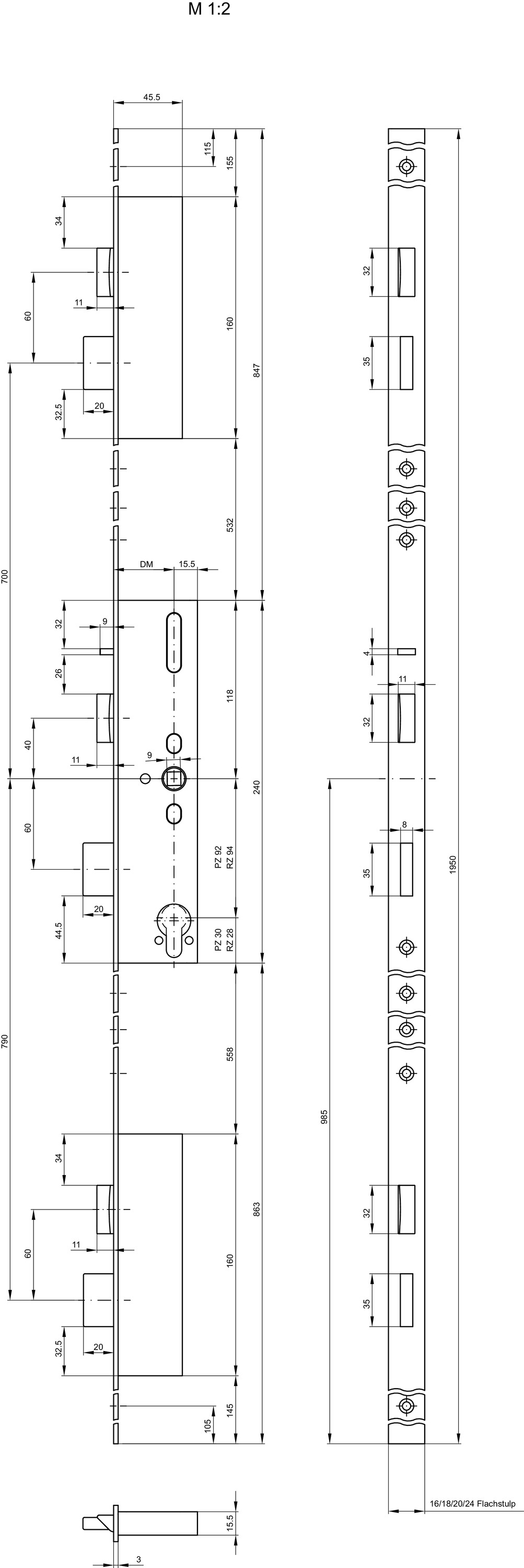

Technical drawing (JPG, 224 KB)
