mFlipLock access panic security multi-point lock 25574PE-SV-FF

Overview of Advantages

• With integrated escape door latch effeff 807-10
• Mounted motor unit with integrated motor control for the basic function (open/closed). With switched output if the lock is unlocked via the motor.
• Display of the open position and feedback to electric door drive
• Opening signal (GND) e.g. via fingerprint, button, switching timer, etc.
• Electrical interface RS 485, e.g. for direct communication via biometrics scanner and error log. Tampering protection opening impulse now only via BUS
• Evaluation potential-free contacts (evaluation control): door status (changeover contact), handle panic side (changeover contact), delayed bolt contact (changeover contact), bolt contact (changeover contact), cylinder contactlFlip latches enable easy motorised unlocking, even if the door is warped
• Motorised opening in 1.5 seconds
• Low power consumption: 350mA at 24V DC
• Deadbolt stroke, single rotation, 20mm each
• Mechanical automatic locking system
• Version with round cylinder or profile cylinder

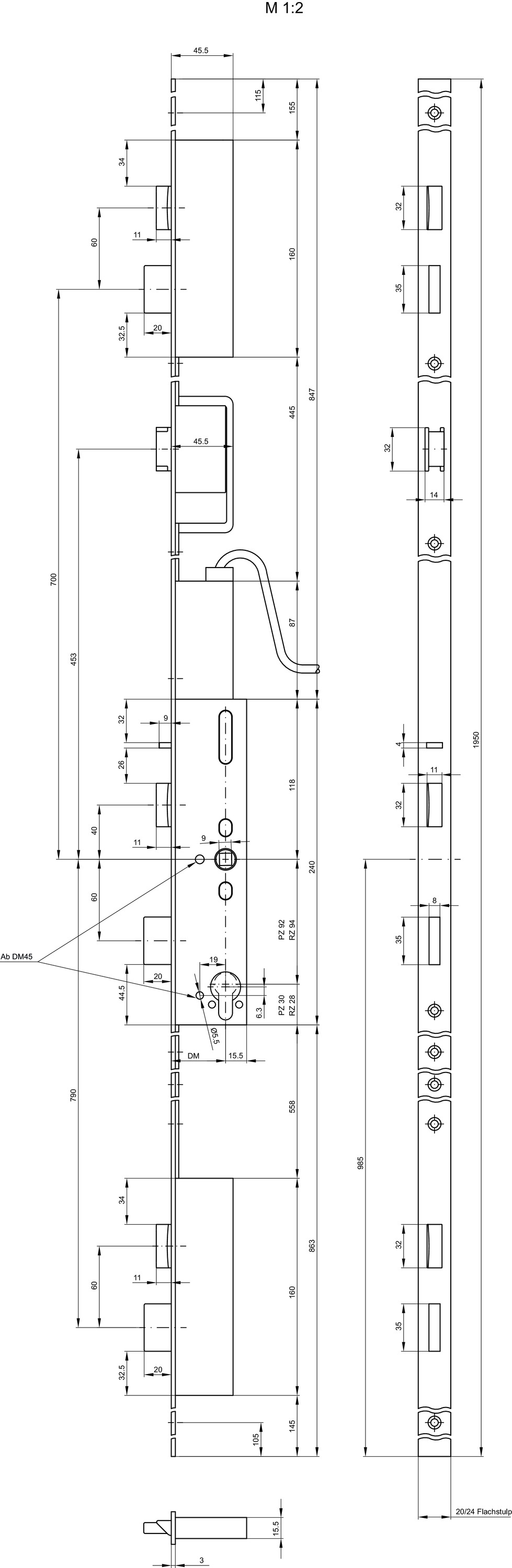

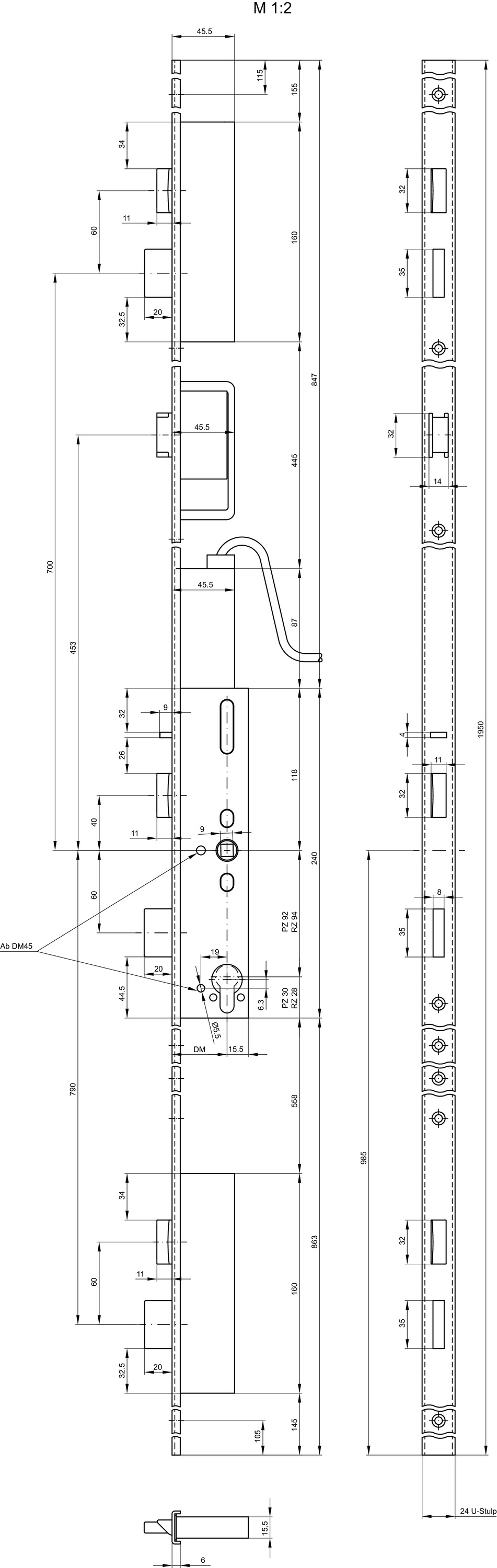

• square face plate in 20 or 24 mm width, U-shaped face plate in 24 mm width
• Certification according to EN 179
• Certification according to EN 1125
• Approved in accordance with EN 1634-1 to 3 with AWS
• Certification in accordance with EN 12209 class
• Approved in accordance with EN 18251-2 Class 5
• Intrusion resistance up to Class RC3 achievable in suitable door systems

Product description

• There is a card reader and an escape door terminal in the opposite direction to the escape direction. In an emergency, the emergency open button is pressed and the lock (escape latch) is released. Exit is then possible at any time via the inside handle, panic bar or a pushbar. The handle pulls the 3 long bolts back and also unlocks the 3 flip latches (panic function). A knob or handle bar is mounted on the outside. The door can be opened via an electronic impulse, fingerprint, button, badge or timer switch or with the key via the drawback from the outside. Emergency opening from the outside is possible at all times via the cylinder when the door is locked. The lock locks automatically again when the door closes (automatic locking). This lock always comes in combination with an evaluation control unit, which enables all contacts of the mFlipLock access motorised lock to be evaluated. The motorised lock can thus be opened, closed, run in daytime position or locked completely (blocked). The power supply for the motorised lock is also provided by the evaluation control. In emergency mode (power failure / triggering of the central fire alarm system), the motorised lock is locked automatically in open state by an integrated buffer capacitor. With the separate block input (locked), all input signals are decoupled and the motorised lock moves automatically into locked position.

Note

• Backset 45/50/65 mm only on request.
• Round rosettes (cross-screwed) only from backset 45 mm.
• In combination with an evaluation control unit (AWS) (Art. no.14471401/02). The AWS, the connecting cable and the striking plates must be ordered separately.
• With integrated escape door latch effeff 807-10
• Only for system partners with a training certificate
• External bolt switch contacts not permitted
