mFlipLock e-access security multi-point lock, handle-operated 26571SV

Overview of Advantages

• Electronically engaging door handle (inside and outside handle)
• Attached motor unit with integrated motor control for the basic open/close function With switched output if the lock has undergone motorised release.
• Display of the open position and feedback to electric door drives.
• Opening signal (GND) e.g. via fingerprint, button, switching timer, etc.
• Electrical interface RS 485, e.g. for direct communication via biometrics scanner and error log. Tamper protection opening impulse now only via BUS.
• Evaluation of potential-free contacts: Door status (changeover contact), handle panic side (changeover contact), delayed bolt switch contact (changeover contact), bolt switch contact (changeover contact), cylinder contact
• Motorised opening in 1.5 seconds
• Low power consumption: 350 mA at 24 V DC
• Deadbolt stroke, single rotation, 20mm each
• Mechanical automatic locking system
• Version with round cylinder or profile cylinder
• Backset: 30 - 80mm

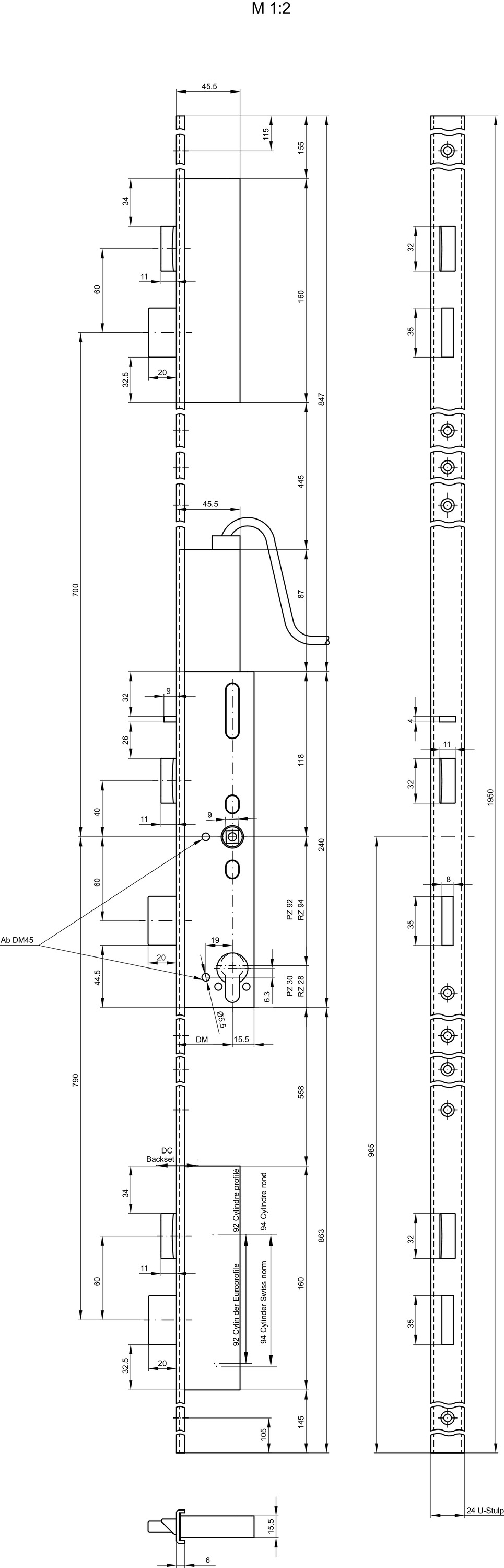

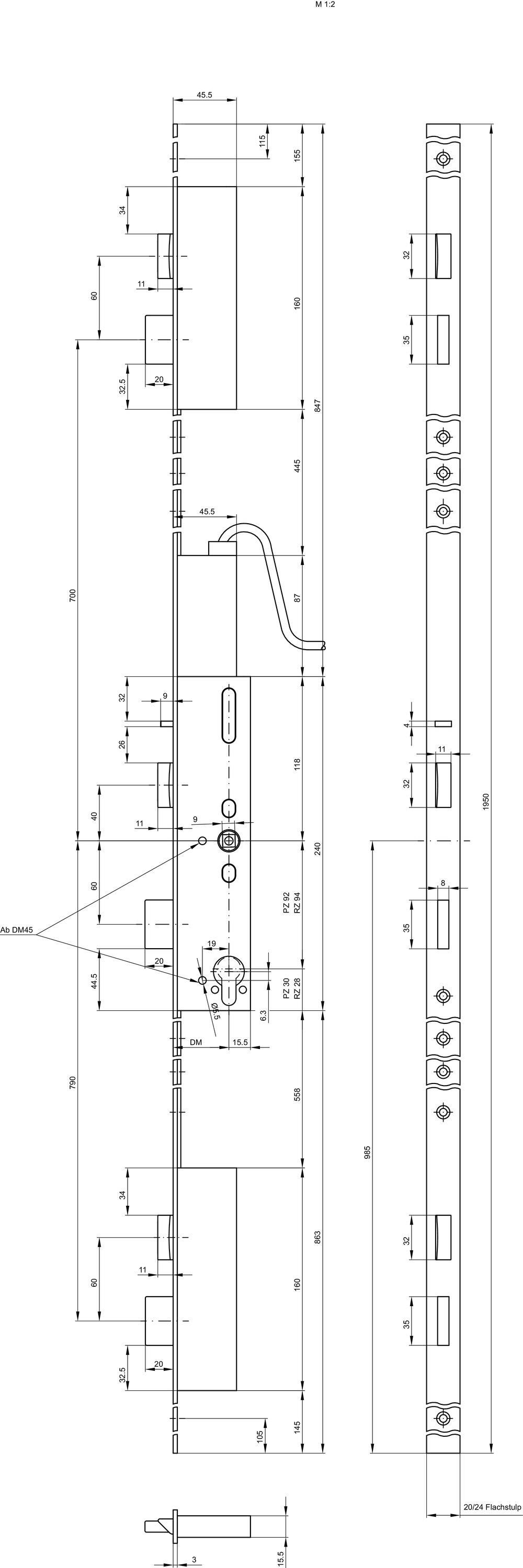

• square face plate in 20 or 24 mm width, U-shaped face plate in 24 mm width
• Approved in accordance with EN 1634-1 to 3 with AWS
• Approved in accordance with EN 12209 Class 7
• Approved in accordance with EN 18251-2 Class 5
• Intrusion resistance up to Class RC3 achievable in suitable door systems

Product description

• The mFlipLock e-access handle-operated multi-point lock without panic function is equipped with a continuous follower. A fitting with a door handles is typically mounted on both sides of the door. Unlocking from outside and from inside takes place via an electronic impulse, fingerprint, button, badge or timer switch, the outside handle and the inside handle are engaged on both sides here and the dead bolt is retracted to 5 mm first. The 3 flip latches are then released by the engaged door handle and the lock is completely released. Emergency opening from the outside or inside is possible at all times via the cylinder when the door is locked. The lock locks automatically again when the door closes (automatic locking). This lock always comes in combination with an evaluation control unit, which enables all contacts of mFlipLock e-access motorised lock to be evaluated. The motorised lock can thus be opened, closed, run in daytime position or locked completely (blocked). The power supply for the motorised lock is also provided by the evaluation control. In emergency mode (power failure / triggering of the central fire alarm system), the motorised lock is locked automatically in open state by an integrated buffer capacitor. With the separate block input (locked), all input signals are decoupled and the motorised lock moves automatically into locked position

Area of Application

• Access control and building management applications, incl. bus connection
• Public buildings, banks, prisons, hospitals (air locks)
• Access control, security and fire doors in commercial, public and industrial buildings

Note

• Suitable for freewheeling cylinders. Backset 45/50/65 on request. In combination with an evaluation control unit (AWS) (Art. no.14471401/02). The AWS, the connecting cable and the striking plates must be ordered separately.
• Only for system partners with a training certificate
• External bolt switch contacts not permitted
