mFlipLock e-access panic security multi-point lock, handle-operated 26576PBe-SV-FF

Overview of Advantages

• With integrated escape door latch effeff 807-10
• Electronically engaging door handle
• Attached motor unit with integrated motor control for the basic open/close function With switched output if the lock has undergone motorised release.
• Display of the open position and feedback to electric door drives.
• Opening signal (GND) e.g. via fingerprint, button, switching timer, etc.
• Electrical interface RS 485, e.g. for direct communication via biometrics scanner and error log
• Tamper protection opening impulse now only via BUS
• Evaluation of potential-free contacts (AWS): Door status (changeover contact), handle panic side (changeover contact), delayed bolt switch contact (changeover contact), bolt switch contact (changeover contact), cylinder contact
• Flip latches enable easy motorised unlocking, even with door warpage.
• Motorised opening in 1.5 seconds
• Low power consumption: 350 mA at 24 V DC
• Deadbolt stroke, single rotation, 20mm each
• Mechanical automatic locking system
• Version with round cylinder or profile cylinder
• Backset: 30 - 80mm

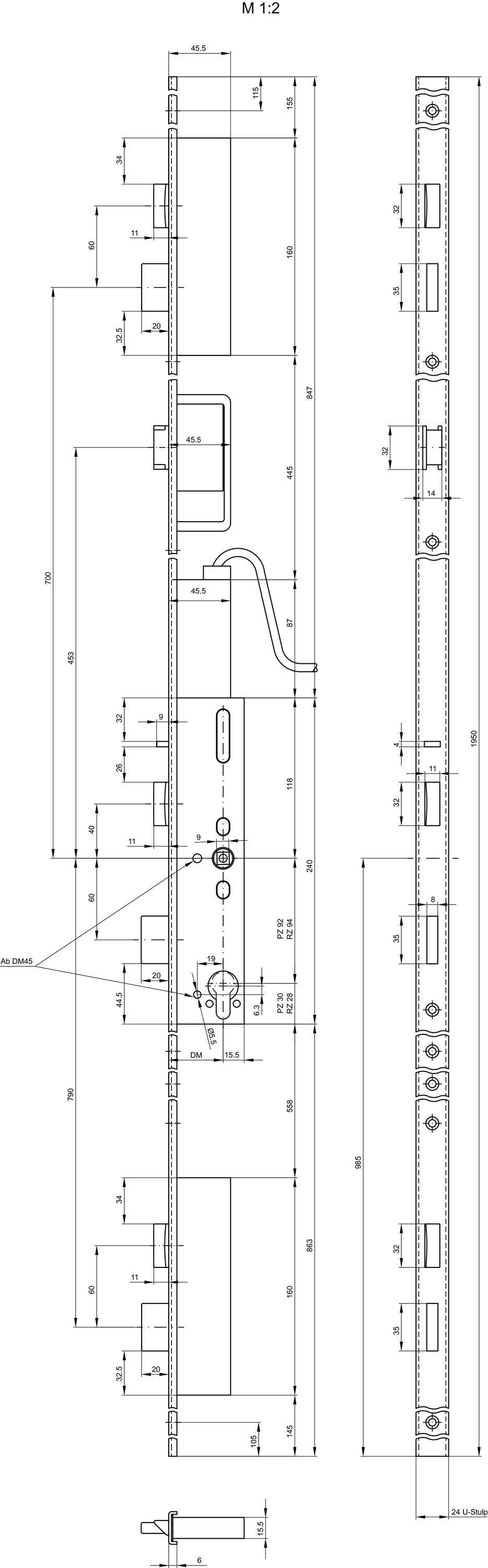

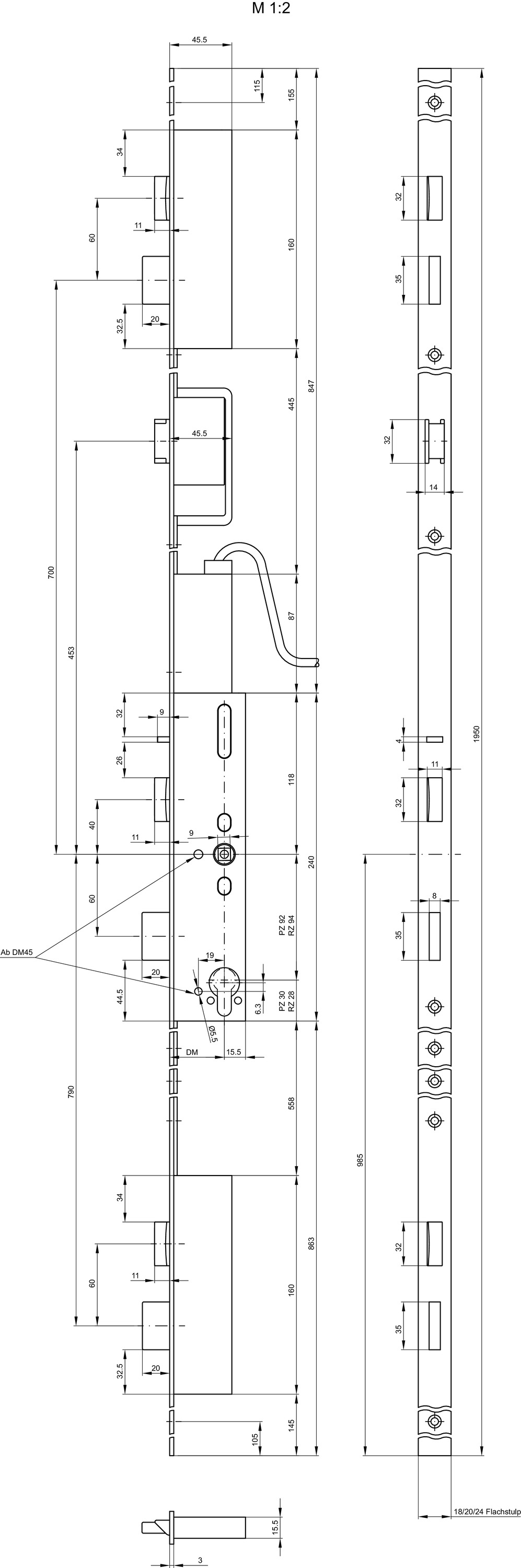

• square face plate in 18, 20 or 24 mm width, U-shaped face plate in 22 or 24 mm width
• No
• Approved in accordance with EN 1634-1 to 3 with AWS
• Approved in accordance with EN 12209 Class 7
• Approved in accordance with EN 18251-2 Class 5
• Intrusion resistance up to Class RC3 achievable in suitable door systems

Product description

• There is a card reader and an escape door terminal in the opposite direction to the escape direction. In an emergency, the emergency open button is pressed and the lock (escape latch) is released. The mFlipLock e-access handle-operated multi-point lock is equipped with a split handle follower so that the inside handle is engaged and the outside handle is not engaged. A fitting with a door handle is typically mounted on both sides of the door. Exit through the locked door is possible at any time via the inside handle. The handle pulls the 3 long bolts back and also unlocks the 3 flip latches (panic function, inwards opening). When unlocking from outside via an electronic impulse, fingerprint, button, badge or timer switch, the outside handle is engaged and the dead bolt is retracted to 5 mm first. The flip latch is then released by the door handle and the lock is completely released. Emergency opening from the outside is possible at all times via the cylinder when the door is locked. The lock locks automatically again when the door closes (automatic locking). This lock always comes in combination with an evaluation control unit, which enables all contacts of the mFlipLock e-access motorised lock to be evaluated. The motorised lock can thus be opened, closed, run in daytime position or locked completely (blocked). The power supply for the motorised lock is also provided by the evaluation control. In emergency mode (power failure / triggering of the central fire alarm system), the motorised lock is locked automatically in open state by an integrated buffer capacitor. With the separate block input (locked), all input signals are decoupled and the motorised lock moves automatically into locked position.

Note

• Backset 40/45/50/65 mm only on request
• Round rosettes (cross-screwed) only from backset 45 mm.
• In combination with an evaluation control unit (AWS) (Art. no.14471401/02). The AWS, the connecting cable and the striking plates must be ordered separately.
• Use special profile half spindle MSL 5968
• With integrated escape door latch effeff 807-10
• Only for system partners with a training certificate
• External bolt switch contacts not permitted
