mFlipLock drive panic security multi-point lock, motorised 25544PE-SV

Panic function E, automatic locking

Overview of Advantages

  • Attached motor unit with integrated motor control for the basic open/close function With switched output if the lock has undergone motorised release.
  • Display of the open position and feedback to electric door drives.
  • Opening signal (GND) e.g. via fingerprint, button, switching timer, etc.
  • Electrical interface RS 485, e.g. for direct communication via biometrics scanner and error log. Tamper protection opening impulse now only via BUS.
  • Motorised opening in 1.5 seconds
  • Low power consumption: 350 mA at 24 V DC
  • Deadbolt stroke, single rotation, 20mm each
  • Mechanical automatic locking system
  • Version with round cylinder or profile cylinder
  • Backset: 30 - 80mm
  • square face plate in 18, 20 or 24 mm width, U-shaped face plate in 22 or 24 mm width
  • No
  • Certification according to EN 1125
  • Approved in accordance with EN 1634-1 to 3 only with AWS
  • Approved in accordance with EN 12209 Class 7
  • Approved in accordance with EN 18251-2 Class 5
  • Intrusion resistance up to Class RC3 achievable in suitable door systems.

Product description

  • Exit through the locked door is possible at any time via the inside handle, panic bar or a pushbar. The handle pulls the 3 long bolts back and also unlocks the 3 flip latches (panic function). A knob or handle bar is mounted on the outside. The door can be opened via an electronic impulse, fingerprint, button, badge or timer switch or with the key via the drawback from the outside. Emergency opening from the outside is possible at all times via the cylinder when the door is locked. The lock locks automatically again when the door closes (automatic locking).

Area of Application

  • For access control and monitoring in building management
  • Main entrance doors, private service doors
  • Security doors, escape route and fire doors in commercial and public buildings
  • Internal building area in combination with access components

Note

  • Suitable for freewheeling cylinders
  • External bolt switch contacts not permitted
  • Backset 45/50/65 mm only on request.
  • Round rosettes (cross-screwed) only from backset 45 mm.
  • Connecting cable and striking plates must be ordered separately.
Technical data
Bolt throw20 mm
Latchnot reversible
SurfaceBrush-finished matt
Versionsingle leaf
Latch materialstainless steel
material boltstainless steel
Panic functionE
Alternative functionYes
Material faceplateInox
material boltstainless steel
Follower9, one-piece
Dimensions of latch bolt mating componentFlip latch, long bolt and automatic locking
Variants that can be ordered
Order number
Type of cylinder
Backset
Faceplate dimensions
Forend shape
Follower
DIN-direction
14407001RZ – round cylinder301950x24x6U-shaped9, one-pieceRight
14407002RZ – round cylinder301950x24x6U-shaped9, one-pieceLeft
14407003RZ – round cylinder351950x24x6U-shaped9, one-pieceRight
14407004RZ – round cylinder351950x24x6U-shaped9, one-pieceLeft
14407005RZ – round cylinder401950x24x6U-shaped9, one-pieceRight
14407006RZ – round cylinder401950x24x6U-shaped9, one-pieceLeft
14407009RZ – round cylinder601950x24x6U-shaped9, one-pieceRight
14407010RZ – round cylinder601950x24x6U-shaped9, one-pieceLeft
14407011RZ – round cylinder701950x24x6U-shaped9, one-pieceRight
14407013RZ – round cylinder801950x24x6U-shaped9, one-pieceRight
14407014RZ – round cylinder801950x24x6U-shaped9, one-pieceLeft
14407022PZ – profile cylinder301950x24x6U-shaped9, one-pieceLeft
14407023PZ – profile cylinder351950x24x6U-shaped9, one-pieceRight
14407024PZ – profile cylinder351950x24x6U-shaped9, one-pieceLeft
14407025PZ – profile cylinder401950x24x6U-shaped9, one-pieceRight
14407026PZ – profile cylinder401950x24x6U-shaped9, one-pieceLeft
14407029PZ – profile cylinder601950x24x6U-shaped9, one-pieceRight
14407030PZ – profile cylinder601950x24x6U-shaped9, one-pieceLeft
14407031PZ – profile cylinder701950x24x6U-shaped9, one-pieceRight
14407033PZ – profile cylinder801950x24x6U-shaped9, one-pieceRight
14407034PZ – profile cylinder801950x24x6U-shaped9, one-pieceLeft
14407043RZ – round cylinder351950x22x6U-shaped9, one-pieceRight
14407044RZ – round cylinder351950x22x6U-shaped9, one-pieceLeft
14407045RZ – round cylinder401950x22x6U-shaped9, one-pieceRight
14407046RZ – round cylinder401950x22x6U-shaped9, one-pieceLeft
14407049RZ – round cylinder601950x22x6U-shaped9, one-pieceRight
14407050RZ – round cylinder601950x22x6U-shaped9, one-pieceLeft
14407051RZ – round cylinder701950x22x6U-shaped9, one-pieceRight
14407054RZ – round cylinder801950x22x6U-shaped9, one-pieceLeft
14407061PZ – profile cylinder301950x22x6U-shaped9, one-pieceRight
14407062PZ – profile cylinder301950x22x6U-shaped9, one-pieceLeft
14407063PZ – profile cylinder351950x22x6U-shaped9, one-pieceRight
14407064PZ – profile cylinder351950x22x6U-shaped9, one-pieceLeft
14407065PZ – profile cylinder401950x22x6U-shaped9, one-pieceRight
14407066PZ – profile cylinder401950x22x6U-shaped9, one-pieceLeft
14407069PZ – profile cylinder601950x22x6U-shaped9, one-pieceRight
14407070PZ – profile cylinder601950x22x6U-shaped9, one-pieceLeft
14407071PZ – profile cylinder701950x22x6U-shaped9, one-pieceRight
14407072PZ – profile cylinder701950x22x6U-shaped9, one-pieceLeft
14407073PZ – profile cylinder801950x22x6U-shaped9, one-pieceRight
14407074PZ – profile cylinder801950x22x6U-shaped9, one-pieceLeft
14407081RZ – round cylinder301950x24x3Square9, one-pieceRight
14407082RZ – round cylinder301950x24x3Square9, one-pieceLeft
14407083RZ – round cylinder351950x24x3Square9, one-pieceRight
14407084RZ – round cylinder351950x24x3Square9, one-pieceLeft
14407085RZ – round cylinder401950x24x3Square9, one-pieceRight
14407086RZ – round cylinder401950x24x3Square9, one-pieceLeft
14407089RZ – round cylinder601950x24x3Square9, one-pieceRight
14407090RZ – round cylinder601950x24x3Square9, one-pieceLeft
14407091RZ – round cylinder701950x24x3Square9, one-pieceRight
14407092RZ – round cylinder701950x24x3Square9, one-pieceLeft
14407093RZ – round cylinder801950x24x3Square9, one-pieceRight
14407094RZ – round cylinder801950x24x3Square9, one-pieceLeft
14407101PZ – profile cylinder301950x24x3Square9, one-pieceRight
14407103PZ – profile cylinder351950x24x3Square9, one-pieceRight
14407104PZ – profile cylinder351950x24x3Square9, one-pieceLeft
14407105PZ – profile cylinder401950x24x3Square9, one-pieceRight
14407106PZ – profile cylinder401950x24x3Square9, one-pieceLeft
14407109PZ – profile cylinder601950x24x3Square9, one-pieceRight
14407110PZ – profile cylinder601950x24x3Square9, one-pieceLeft
14407111PZ – profile cylinder701950x24x3Square9, one-pieceRight
14407112PZ – profile cylinder701950x24x3Square9, one-pieceLeft
14407121RZ – round cylinder301950x20x3Square9, one-pieceRight
14407123RZ – round cylinder351950x20x3Square9, one-pieceRight
14407124RZ – round cylinder351950x20x3Square9, one-pieceLeft
14407125RZ – round cylinder401950x20x3Square9, one-pieceRight
14407126RZ – round cylinder401950x20x3Square9, one-pieceLeft
14407129RZ – round cylinder601950x20x3Square9, one-pieceRight
14407130RZ – round cylinder601950x20x3Square9, one-pieceLeft
14407131RZ – round cylinder701950x20x3Square9, one-pieceRight
14407132RZ – round cylinder701950x20x3Square9, one-pieceLeft
14407133RZ – round cylinder801950x20x3Square9, one-pieceRight
14407134RZ – round cylinder801950x20x3Square9, one-pieceLeft
14407141PZ – profile cylinder301950x20x3Square9, one-pieceRight
14407142PZ – profile cylinder301950x20x3Square9, one-pieceLeft
14407143PZ – profile cylinder351950x20x3Square9, one-pieceRight
14407144PZ – profile cylinder351950x20x3Square9, one-pieceLeft
14407145PZ – profile cylinder401950x20x3Square9, one-pieceRight
14407146PZ – profile cylinder401950x20x3Square9, one-pieceLeft
14407149PZ – profile cylinder601950x20x3Square9, one-pieceRight
14407150PZ – profile cylinder601950x20x3Square9, one-pieceLeft
14407151PZ – profile cylinder701950x20x3Square9, one-pieceRight
14407152PZ – profile cylinder701950x20x3Square9, one-pieceLeft
14407153PZ – profile cylinder801950x20x3Square9, one-pieceRight
14407154PZ – profile cylinder801950x20x3Square9, one-pieceLeft
14407243RZ – round cylinder351950x18x3Square9, one-pieceRight
14407245RZ – round cylinder401950x18x3Square9, one-pieceRight
14407246RZ – round cylinder401950x18x3Square9, one-pieceLeft
14407251RZ – round cylinder601950x18x3Square9, one-pieceRight
14407252RZ – round cylinder601950x18x3Square9, one-pieceLeft
14407253RZ – round cylinder701950x18x3Square9, one-pieceRight
14407254RZ – round cylinder701950x18x3Square9, one-pieceLeft
14407255RZ – round cylinder801950x18x3Square9, one-pieceRight
14407256RZ – round cylinder801950x18x3Square9, one-pieceLeft
14407257PZ – profile cylinder301950x18x3Square9, one-pieceRight
14407258PZ – profile cylinder301950x18x3Square9, one-pieceLeft
14407260PZ – profile cylinder351950x18x3Square9, one-pieceLeft
14407261PZ – profile cylinder401950x18x3Square9, one-pieceRight
14407262PZ – profile cylinder401950x18x3Square9, one-pieceLeft
14407267PZ – profile cylinder601950x18x3Square9, one-pieceRight
14407268PZ – profile cylinder601950x18x3Square9, one-pieceLeft
14407269PZ – profile cylinder701950x18x3Square9, one-pieceRight
14407270PZ – profile cylinder701950x18x3Square9, one-pieceLeft
14407271PZ – profile cylinder801950x18x3Square9, one-pieceRight
14407272PZ – profile cylinder801950x18x3Square9, one-pieceLeft
Accessories/Individual parts

Order number
Product
Connecting cable (e-) drive / (e-) access
Datenkabel_FlipLock_driveConnecting cable (e-) drive / (e-) access
Accessories sFlipLock / accessories mFlipLock
Netzteil 12 VDC 5AAccessories sFlipLock / accessories mFlipLock
Emergency power buffer module for sFlipLock and mFlipLock motorised
Reststrompuffer-ModulEmergency power buffer module for sFlipLock and mFlipLock motorised
Emergency power buffer module 10,7-27-V for sFlipLock and mFlipLock motorised
VariFlex mFlipLock striking plate
BV-24421VFVariFlex mFlipLock striking plate
ProfiFlex mFlipLock striking plate
BV-24421PFProfiFlex mFlipLock striking plate
XL face plate extensions for mFlipLock
XL-24421XL face plate extensions for mFlipLock
XL face plate extensions, 350mm, 550mm or 800mm
Downloads for Product

General

Product sheet mFlipLock drive panic security multi-point lock, motorised 25544PE-SV (PDF)
Operating instructions (PDF, 7.92 MB)

Certificates and attests

Certificate of constancy of performance EN 179 (PDF, 400 KB)
Certificate of constancy of performance EN 1125 FlipLock (PDF, 397 KB)

Drawings for Specification Documents

Downloads (DXF, 722 KB)

Medias

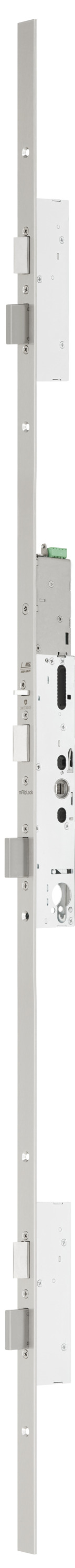

Product image (JPG, 86 KB)
Product image (EPS, 33.78 MB)

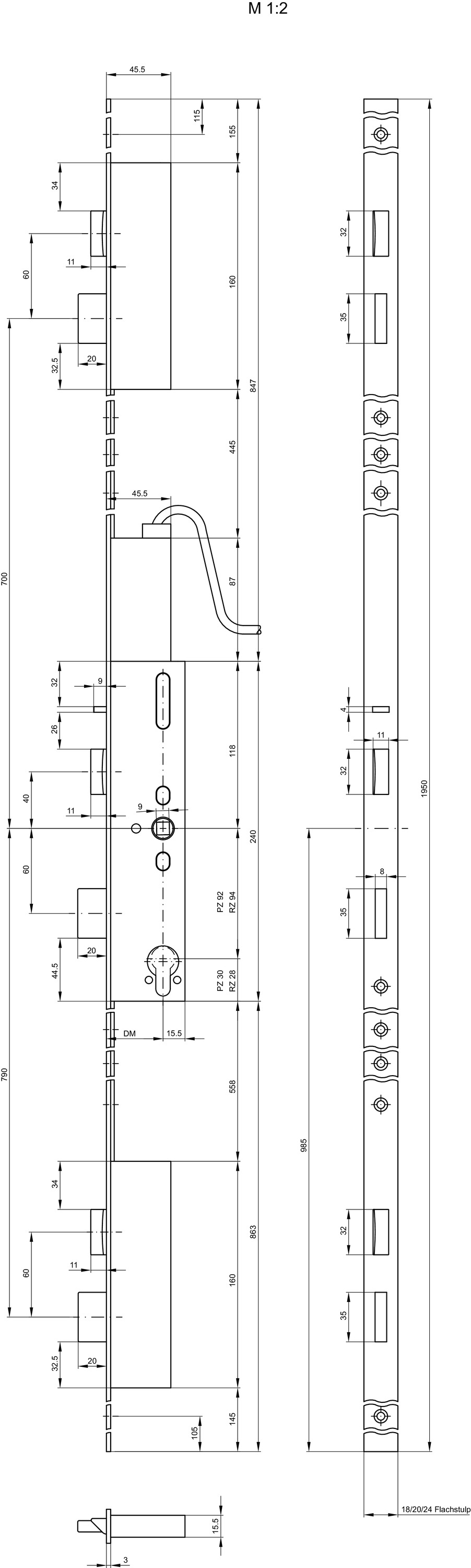

Technical drawing 1 (JPG, 197 KB)
Technical drawing 1 (EPS, 2.00 MB)

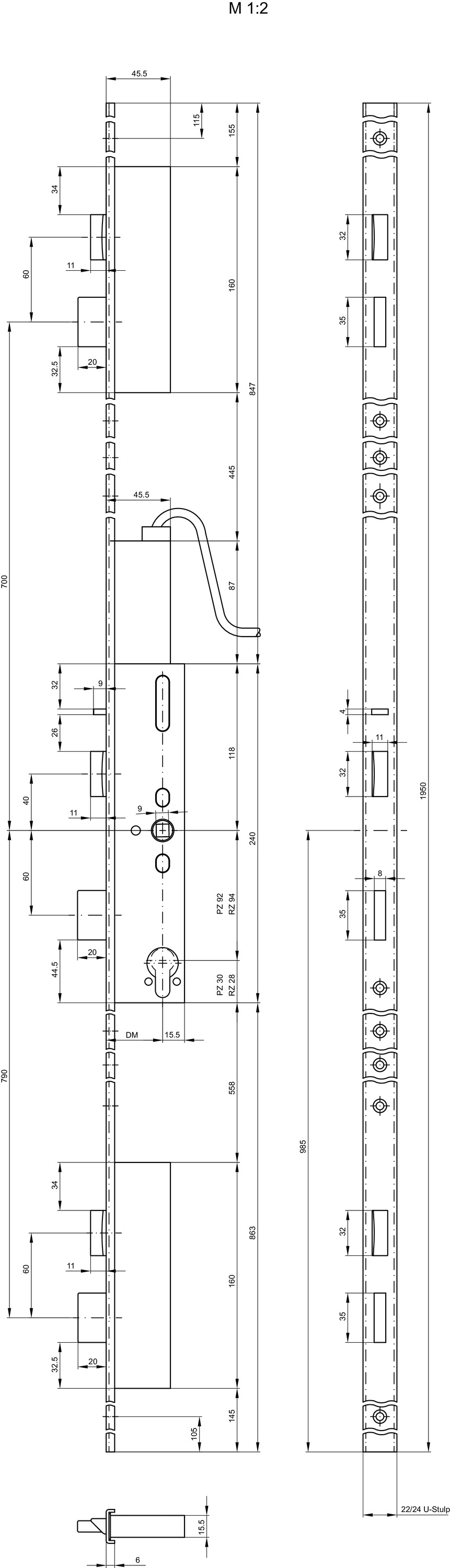

Technical drawing 2 (JPG, 216 KB)
