mFlipLock e-drive panic security multi-point lock, handle-operated 26546PBa-SV

Overview of Advantages

• Electronically engaging door handle
• Attached motor unit with integrated motor control for the basic open/close function With switched output if the lock has undergone motorised release.
• Display of the open position and feedback to electric door drives
• Opening signal (GND) e.g. via fingerprint, button, switching timer, etc.
• Electrical interface RS 485, e.g. for direct communication via biometrics scanner and error log
• Tamper protection opening impulse now only via BUS
• Flip latches enable easy motorised unlocking, even with door warpage.
• Motorised opening in 1.5 seconds
• Low power consumption: 350 mA at 24 V DC
• Deadbolt stroke, single rotation, 20mm each
• Mechanical automatic locking system
• Version with round cylinder or profile cylinder
• Backset: 30 - 80mm

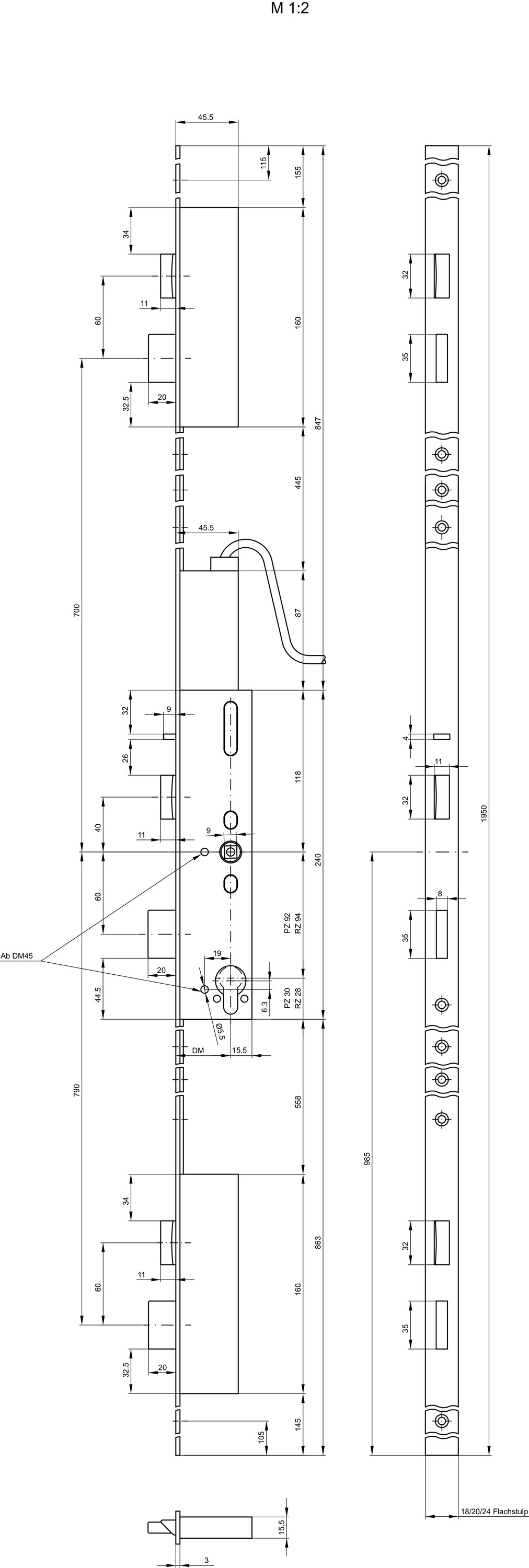

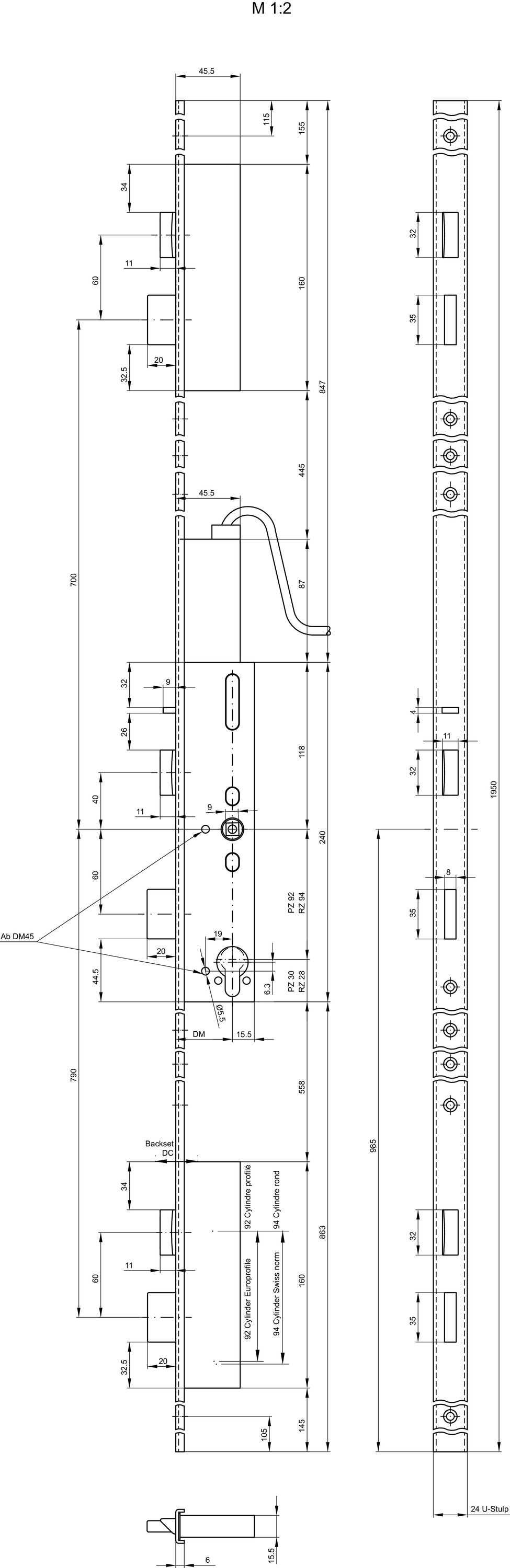

• square face plate in 18, 20 or 24 mm width, U-shaped face plate in 22 or 24 mm width
• No
• Certification according to EN 1125
• Approved in accordance with EN 1634-1 to 3 only with AWS
• Approved in accordance with EN 12209 Class 7
• Approved in accordance with EN 18251-2 Class 5
• Intrusion resistance up to Class RC3 achievable in suitable door systems

Product description

• The mFlipLock e-drive handle-operated multi-point lock is equipped with a split handle follower so that the inside handle is engaged and the outside handle is not engaged. A fitting with a door handle is typically mounted on both sides of the door. Exit through the locked door is possible at any time via the inside door handle contact handle. The handle pulls the 3 long bolts back and also unlocks the 3 flip latches (panic function, inwards opening). When unlocking from outside via an electronic impulse, fingerprint, button, badge or timer switch, the outside handle is engaged and the dead bolt is retracted to 5 mm first. The fliplatch is then released by the door handle and the lock is completely released. Emergency opening from the outside is possible at all times via the cylinder when the door is locked. The lock locks automatically again when the door closes (automatic locking).

Area of Application

• Entrance doors, IT server rooms, industrial areas and public buildings
• Security doors, escape route and fire doors in commercial and public buildings

Note

• Suitable for freewheeling cylinders
• External bolt switch contacts not permitted
• Backset 40/45/50/65 mm only on request
• Round rosettes (cross-screwed) only from backset 45 mm.
• Connecting cable and striking plates must be ordered separately.
• Use special profile half spindle MSL 5968
