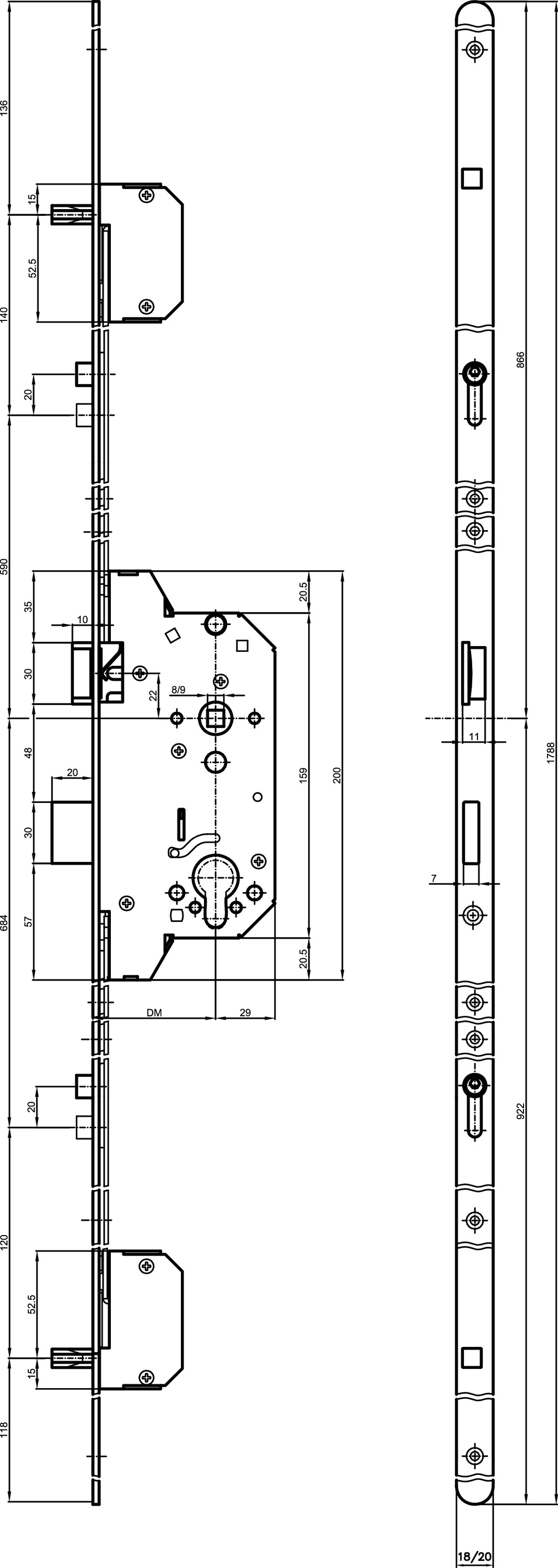

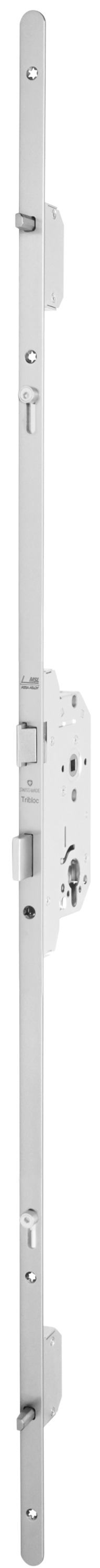

Security multi-point lock system 1854

Overview of Advantages

• Use roller pins in the event of door warpage
• Deadbolt stroke, single rotation, 20mm each
• 6-point locking
• Version with round cylinder or profile cylinder
• Backset: 60-80mm
• Certification according to EN 1634-1 to 3
• Intrusion resistance up to Class RC3 achievable in suitable door systems

Product description

• A handle is mounted on both sides. Once the door falls shut, the roller pins are moved upwards into the locking position in the striking plate in the door frame via an upwards handle movement. This pulls the door leaf to the door frame. A key rotation in locking direction extends the two single-throw bolts and the main bolt. The latch and both roller pins are blocked. The lock is locked 6x. Turning the key in opening direction retracts all bolts, the latch and roller pins are released. Moving the handle downwards moves the roller pins in the striking plate down into open position and the latch is drawn in

Area of Application

• Entrance and private service doors
• Security and fire doors in commercial, public and residential buildings

Note

• As two-leaf version in use with passive leaf locking 1711.
• On the frame side, only use bolt switch contact MSL 1886.
