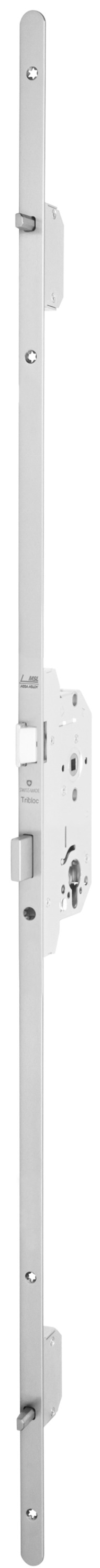

Security multi-point lock system 1855

Handle operation or key operation

Overview of Advantages

  • Setting key operation or handle operation
  • With latch-bolt function
  • Deadbolt stroke, single rotation, 20mm each
  • Version with round cylinder or profile cylinder
  • Backset: 60-80mm
  • Certification according to EN 1634-1 to 3
  • Intrusion resistance up to RC3 can be achieved in suitable door systems

Product description

  • With this lock, the function handle operation (handle/handle) or key operation (knob/handle) can be optionally set or switched prior to installation. Function key operation (knob/handle): When locking the door, a key rotation in locking direction extends all 3 bolts and both the latch and the bolt are blocked. Unlocking takes place with a key rotation in opening direction, all 3 bolts are retracted. Handle operation (handle/handle): The single-throw bolts are extended when the handle is moved. A key rotation in locking direction extends the main lock bolt. This blocks the latch and the single-throw bolts. During the opening process, the main bolt is unlocked via a key rotation. The single-throw bolts and latch are retracted when the handle is moved down.

Area of Application

  • Entrance and private service doors
  • Security and fire doors in commercial, public and residential buildings

Note

  • On the frame side, only use bolt switch contact MSL 1886.
  • PU corresponds to a pack of 10 including depot fee for reusable packaging
Technical data
Bolt throw20 mm
Latchnot reversible
Distance78 mm
Forend shaperounded
Version4-point locking
Latch materialDelrin
material boltSteel nickel-plated
Alternative functionYes
Material faceplateInox
material boltSteel
Dimensions of latch bolt mating componentDeadbolt stroke, single rotation, 20mm each
Variants that can be ordered
Order number
Type of cylinder
Backset
Faceplate dimensions
Forend shape
Follower
DIN-direction
11730001RZ – round cylinder601788x18x3rounded8, single partRight
11730002RZ – round cylinder601788x18x3rounded8, single partLeft
11730003RZ – round cylinder701788x18x3rounded8, single partRight
11730004RZ – round cylinder701788x18x3rounded8, single partLeft
11730005RZ – round cylinder801788x18x3rounded8, single partRight
11730006RZ – round cylinder801788x18x3rounded8, single partLeft
11730013RZ – round cylinder601788x18x3rounded9, one-pieceRight
11730014RZ – round cylinder601788x18x3rounded9, one-pieceLeft
11730015RZ – round cylinder701788x18x3rounded9, one-pieceRight
11730016RZ – round cylinder701788x18x3rounded9, one-pieceLeft
11730017RZ – round cylinder801788x18x3rounded9, one-pieceRight
11730018RZ – round cylinder801788x18x3rounded9, one-pieceLeft
11730025PZ – profile cylinder601788x18x3rounded8, single partRight
11730026PZ – profile cylinder601788x18x3rounded8, single partLeft
11730027PZ – profile cylinder701788x18x3rounded8, single partRight
11730028PZ – profile cylinder701788x18x3rounded8, single partLeft
11730029PZ – profile cylinder801788x18x3rounded8, single partRight
11730030PZ – profile cylinder801788x18x3rounded8, single partLeft
11730037PZ – profile cylinder601788x18x3rounded9, one-pieceRight
11730038PZ – profile cylinder601788x18x3rounded9, one-pieceLeft
11730039PZ – profile cylinder701788x18x3rounded9, one-pieceRight
11730040PZ – profile cylinder701788x18x3rounded9, one-pieceLeft
11730041PZ – profile cylinder801788x18x3rounded9, one-pieceRight
11730042PZ – profile cylinder801788x18x3rounded9, one-pieceLeft
11730121RZ – round cylinder601788x20x3rounded8, single partRight
11730122RZ – round cylinder601788x20x3rounded8, single partLeft
11730123RZ – round cylinder701788x20x3rounded8, single partRight
11730124RZ – round cylinder701788x20x3rounded8, single partLeft
11730125RZ – round cylinder801788x20x3rounded8, single partRight
11730126RZ – round cylinder801788x20x3rounded8, single partLeft
11730127RZ – round cylinder601788x20x3rounded9, one-pieceRight
11730128RZ – round cylinder601788x20x3rounded9, one-pieceLeft
11730129RZ – round cylinder701788x20x3rounded9, one-pieceRight
11730130RZ – round cylinder701788x20x3rounded9, one-pieceLeft
11730131RZ – round cylinder801788x20x3rounded9, one-pieceRight
11730132RZ – round cylinder801788x20x3rounded9, one-pieceLeft
11730133PZ – profile cylinder601788x20x3rounded8, single partRight
11730134PZ – profile cylinder601788x20x3rounded8, single partLeft
11730135PZ – profile cylinder701788x20x3rounded8, single partRight
11730136PZ – profile cylinder701788x20x3rounded8, single partLeft
11730137PZ – profile cylinder801788x20x3rounded8, single partRight
11730138PZ – profile cylinder801788x20x3rounded8, single partLeft
11730139PZ – profile cylinder601788x20x3rounded9, one-pieceRight
11730140PZ – profile cylinder601788x20x3rounded9, one-pieceLeft
11730141PZ – profile cylinder701788x20x3rounded9, one-pieceRight
11730142PZ – profile cylinder701788x20x3rounded9, one-pieceLeft
11730143PZ – profile cylinder801788x20x3rounded9, one-pieceRight
11730144PZ – profile cylinder801788x20x3rounded9, one-pieceLeft
11730201RZ – round cylinder601788x18x3rounded8, single partRight
11730202RZ – round cylinder601788x18x3rounded8, single partLeft
11730203RZ – round cylinder701788x18x3rounded8, single partRight
11730204RZ – round cylinder701788x18x3rounded8, single partLeft
11730205RZ – round cylinder801788x18x3rounded8, single partRight
11730207RZ – round cylinder601788x18x3rounded9, one-pieceRight
11730208RZ – round cylinder601788x18x3rounded9, one-pieceLeft
11730209RZ – round cylinder701788x18x3rounded9, one-pieceRight
11730210RZ – round cylinder701788x18x3rounded9, one-pieceLeft
11730211RZ – round cylinder801788x18x3rounded9, one-pieceRight
11730212RZ – round cylinder801788x18x3rounded9, one-pieceLeft
11730217RZ – round cylinder801788x20x3rounded8, single partRight
11730218RZ – round cylinder801788x20x3rounded8, single partLeft
11730219RZ – round cylinder601788x20x3rounded9, one-pieceRight
11730220RZ – round cylinder601788x20x3rounded9, one-pieceLeft
11730221RZ – round cylinder701788x20x3rounded9, one-pieceRight
11730222RZ – round cylinder701788x20x3rounded9, one-pieceLeft
11730223RZ – round cylinder801788x20x3rounded9, one-pieceRight
Accessories/Individual parts

Order number
Product
Strike plate
B-1854Strike plate
Casa Alpha passive leaf locking system
1711Casa Alpha passive leaf locking system
Automatic locking upwards and downwards
ProfiFlex Bi Tribloc striking plate
BV-1854PFProfiFlex Bi Tribloc striking plate
Accessories
B-1855Accessories
ProfiFlex Tribloc striking plate
BV-1855PFProfiFlex Tribloc striking plate
Accessories
1870Accessories
Accessories Tribloc 1857H
1877Accessories Tribloc 1857H
