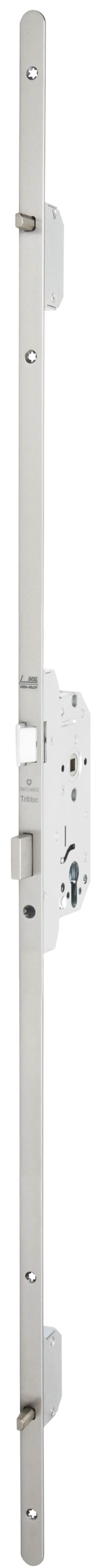

LatchTribloc 1856.7
Bolt latches, latch blocking
Overview of Advantages
- With latch-bolt function
- Deadbolt stroke, single rotation, 20mm each
- Certification according to EN 1634-1 to 3
- Intrusion resistance up to Class RC3 achievable in suitable door systems
Product description
- With a key rotation in the locking direction, the bolt and the bolt latches are extended and blocked. Opening process: via a key rotation in the opening direction, the main bolt is retracted, turning the bolt latches into spring-borne latches. Continued rotation in the transmission function or actuating the handle retracts the latch and all bolt latches.
Area of Application
- Entrance and private service doors
- Security and fire doors in commercial, public and residential buildings
Note
- On the frame side, only use bolt switch contact MSL 1886.
- Suitable for freewheeling cylinders
| Bolt throw | 20 mm |
| Latch | not reversible |
| Surface | Brush-finished matt |
| Distance | 78 mm |
| Forend shape | rounded |
| Version | 4-point locking |
| Latch material | Delrin / steel nickel-plated |
| material bolt | Delrin / steel nickel-plated |
| Faceplate dimensions | 1788x18x3 |
| Alternative function | Yes |
| Material faceplate | Inox |
| material bolt | Steel |
| Dimensions of latch bolt mating component | Deadbolt stroke, single rotation, 20mm each |
| DIN-direction | Left |
| Backset | 80 |
| Type of cylinder | PZ - profile cylinder |
| Follower | 9, one-piece |
| | Order number | Product |
|---|---|---|
 | B-1854 | Strike plate |
 | B-1855 | Accessories |
 | 1711 | Casa Alpha passive leaf locking system Automatic locking upwards and downwards |
 | BV-1855PF | ProfiFlex Tribloc striking plate |
 | B-1856 Z.243 | Accessories |
 | 1870 | Accessories |
 | 1877 | Accessories Tribloc 1857H |
