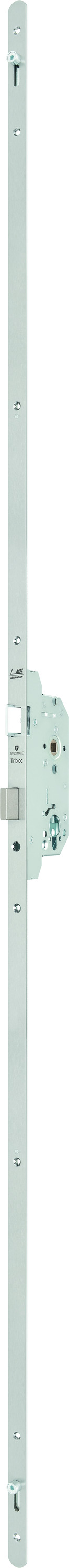

Security multi-point lock system 1857

With roller pins and handle-operated

Overview of Advantages

  • Delrin latch
  • 4-point locking
  • version with adjustable roller pins, handle operated
  • Deadbolt stroke, single rotation, 20mm each
  • Forced follower 8 or 9mm
  • Without latch-bolt function
  • Distance 78 mm
  • Deadbolt stroke 20mm, single rotation
  • Bolt made from hardened special steel
  • Striking plate positions similar to previous model 1841
  • Bottom plate can be rotated by 180°
  • Round face plate 1788 x 18/20mm (option filler face plate square) Inox

Note

  • If this article is used as a replacement for model 1840 or 1841, the frame striking plate must be turned 180 degrees at the bottom.
Technical data
Bolt throw20 mm
Latchnot reversible
SurfaceBrush-finished matt
Distance78 mm
Forend shaperounded
Latch materialDelrin / steel nickel-plated
material boltDelrin / steel nickel-plated
Alternative functionNo
Material faceplateInox
material boltSteel
Variants that can be ordered
Order number
Type of cylinder
Backset
Faceplate dimensions
Forend shape
Follower
DIN-direction
11732001RZ - round cylinder601788x18x3rounded8, single partRight
11732002RZ - round cylinder601788x18x3rounded8, single partLeft
11732003RZ - round cylinder701788x18x3rounded8, single partRight
11732004RZ - round cylinder701788x18x3rounded8, single partLeft
11732005RZ - round cylinder801788x18x3rounded8, single partRight
11732006RZ - round cylinder801788x18x3rounded8, single partLeft
11732007RZ - round cylinder601788x18x3rounded9, one-pieceRight
11732008RZ - round cylinder601788x18x3rounded9, one-pieceLeft
11732009RZ - round cylinder701788x18x3rounded9, one-pieceRight
11732010RZ - round cylinder701788x18x3rounded9, one-pieceLeft
11732011RZ - round cylinder801788x18x3rounded9, one-pieceRight
11732012RZ - round cylinder801788x18x3rounded9, one-pieceLeft
11732013PZ - profile cylinder601788x18x3rounded8, single partRight
11732014PZ - profile cylinder601788x18x3rounded8, single partLeft
11732015PZ - profile cylinder701788x18x3rounded8, single partRight
11732016PZ - profile cylinder701788x18x3rounded8, single partLeft
11732017PZ - profile cylinder801788x18x3rounded8, single partRight
11732018PZ - profile cylinder801788x18x3rounded8, single partLeft
11732019PZ - profile cylinder601788x18x3rounded9, one-pieceRight
11732020PZ - profile cylinder601788x18x3rounded9, one-pieceLeft
11732021PZ - profile cylinder701788x18x3rounded9, one-pieceRight
11732022PZ - profile cylinder701788x18x3rounded9, one-pieceLeft
11732023PZ - profile cylinder801788x18x3rounded9, one-pieceRight
11732073RZ - round cylinder501788x18x3rounded8, single partRight
11732074RZ - round cylinder501788x18x3rounded8, single partLeft
11732075RZ - round cylinder501788x18x3rounded9, one-pieceRight
11732076RZ - round cylinder501788x18x3rounded9, one-pieceLeft
11732077PZ - profile cylinder501788x18x3rounded8, single partRight
11732078PZ - profile cylinder501788x18x3rounded8, single partLeft
11732079PZ - profile cylinder501788x18x3rounded9, one-pieceRight
11732080PZ - profile cylinder501788x18x3rounded9, one-pieceLeft
11732101RZ - round cylinder601788x20x3rounded8, single partRight
11732102RZ - round cylinder601788x20x3rounded8, single partLeft
11732103RZ - round cylinder701788x20x3rounded8, single partRight
11732104RZ - round cylinder701788x20x3rounded8, single partLeft
11732105RZ - round cylinder801788x20x3rounded8, single partRight
11732106RZ - round cylinder801788x20x3rounded8, single partLeft
11732107RZ - round cylinder601788x20x3rounded9, one-pieceRight
11732108RZ - round cylinder601788x20x3rounded9, one-pieceLeft
11732109RZ - round cylinder701788x20x3rounded9, one-pieceRight
11732110RZ - round cylinder701788x20x3rounded9, one-pieceLeft
11732111RZ - round cylinder801788x20x3rounded9, one-pieceRight
11732112RZ - round cylinder801788x20x3rounded9, one-pieceLeft
11732113PZ - profile cylinder601788x20x3rounded8, single partRight
11732114PZ - profile cylinder601788x20x3rounded8, single partLeft
11732115PZ - profile cylinder701788x20x3rounded8, single partRight
11732116PZ - profile cylinder701788x20x3rounded8, single partLeft
11732117PZ - profile cylinder801788x20x3rounded8, single partRight
11732118PZ - profile cylinder801788x20x3rounded8, single partLeft
11732119PZ - profile cylinder601788x20x3rounded9, one-pieceRight
11732120PZ - profile cylinder601788x20x3rounded9, one-pieceLeft
11732121PZ - profile cylinder701788x20x3rounded9, one-pieceRight
11732122PZ - profile cylinder701788x20x3rounded9, one-pieceLeft
11732123PZ - profile cylinder801788x20x3rounded9, one-pieceRight
11732124PZ - profile cylinder801788x20x3rounded9, one-pieceLeft
