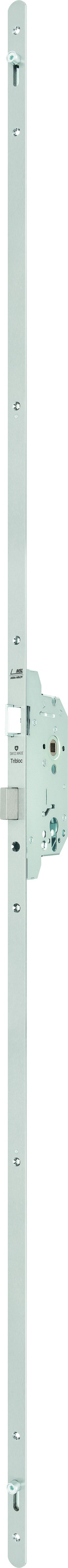

RollTribloc 1857.3
With roller pins and handle-operated
Overview of Advantages
- Use roller pins in the event of door warpage
- Deadbolt stroke, single rotation, 20mm each
- Certification according to EN 1634-1 to 3
Note
- If this article is used as a replacement for model 1840 or 1841, the frame striking plate must be turned 180 degrees at the bottom.
| Bolt throw | 20 mm |
| Latch | not reversible |
| Surface | Brush-finished matt |
| Distance | 78 mm |
| Forend shape | rounded |
| Latch material | Delrin / steel nickel-plated |
| material bolt | Delrin / steel nickel-plated |
| Alternative function | No |
| Material faceplate | Inox |
| material bolt | Steel |
| DIN-direction | Right |
| Backset | 70 |
| Type of cylinder | PZ - profile cylinder |
| Faceplate dimensions | 1788x18x3 |
| Follower | 8, single part |
