Panic security multi-point locking system 1856PE-XL
Panic function E, bolt latches, face plate extension, latch blocking

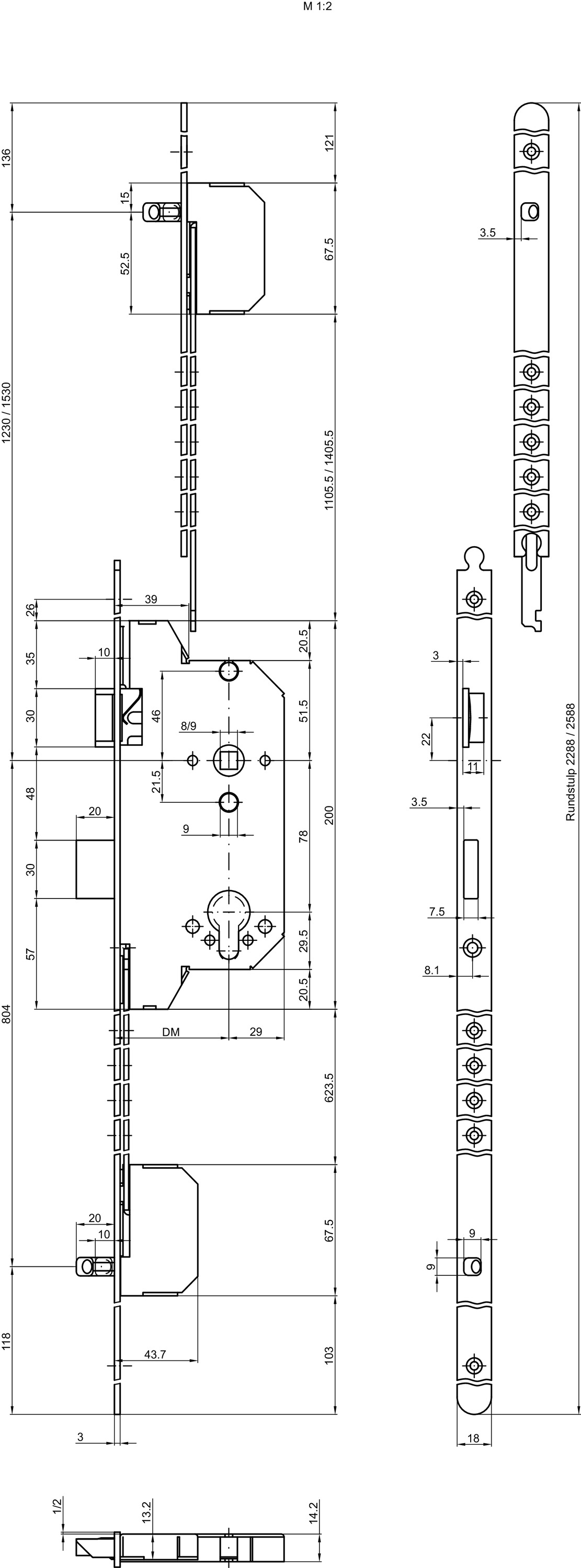

Product image
Overview of Advantages
With latch-bolt function
Face plate extension 500mm or 800mm
Deadbolt stroke, single rotation, 20mm each
Version with round cylinder or profile cylinder
Backset: 60-80mm
No
Certification according to EN 1125
Certification according to EN 1634-1 to 3
Intrusion resistance up to Class RC3 achievable in suitable door systems
Product description
With this multi-point locking system with face plate extension, a door handle, panic bar or push bar is used for operation on the inside. A rod or knob plate can be mounted on the outside depending on the architectural specifications. With a key rotation in the locking direction, the bolt and the bolt latches are extended and blocked. Opening process: via a key rotation in the opening direction, the main bolt is retracted, turning the bolt latches into spring-borne latches. Continued rotation in the transmission function or actuating the handle retracts the latch and all bolt latches. The door can always be opened via the inside handle even in locked state so that people can exit the area or building (panic function).
Area of Application
Escape door technology in commercial and public buildings with increased security, for new construction and renovations
Note
Thumbturn cylinders may not be used
On the frame side, only use bolt switch contact MSL 1886.
