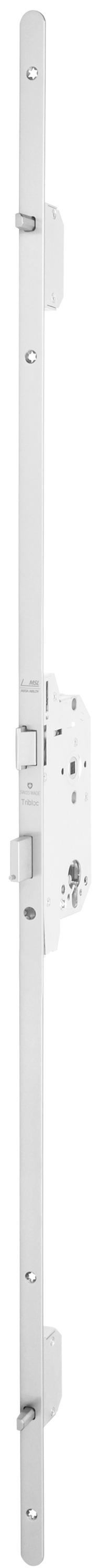

Panic security multi-point locking system 1859PBe-ZF

Overview of Advantages

• Deadbolt stroke, single rotation, 20mm each
• Version with round cylinder or profile cylinder
• Backset: 60-80mm
• No
• Certification according to EN 1634-1 to 3
• Intrusion resistance up to Class RC3 achievable in suitable door systems

Product description

• With these multi-point locking systems, a door handle, panic door fitting or a pushbar is mounted on the inside of the door. A door handle is also mounted on the outside of the door. In unlocked state, the door can be opened from both sides. In locked state, the door can not be opened from the outside, but can always be opened from the inside via the door handle, panic door fitting or pushbar (panic function outwards opening), the main bolt and the two single-throw bolts are retracted. The lock locks automatically when the door closes (automatic locking). The spindle (follower) is split with panic function B. This panic function is suitable for doors that also have to be opened from the outside at specific times (daytime operation). Daytime operation can be activated via the cylinder, with a key turned in the direction of opening to the stop - the door handle is then engaged on the outside of the door. Only available in combination with a panic inactive leaf locking system. This enables the door to be opened at all times, even if the lock on the active leaf is locked (panic function), via the panic fitting or pushbar, automatic locking when the door is closed via switch lock triggering.

Area of Application

• double-leaf security doors, private service doors, fire doors and escape route doors (standard doors)

Note

• Thumbturn cylinders may not be used
• In use with the panic passive leaf locking system 1860
• Use special profile half spindle MSL 5968
