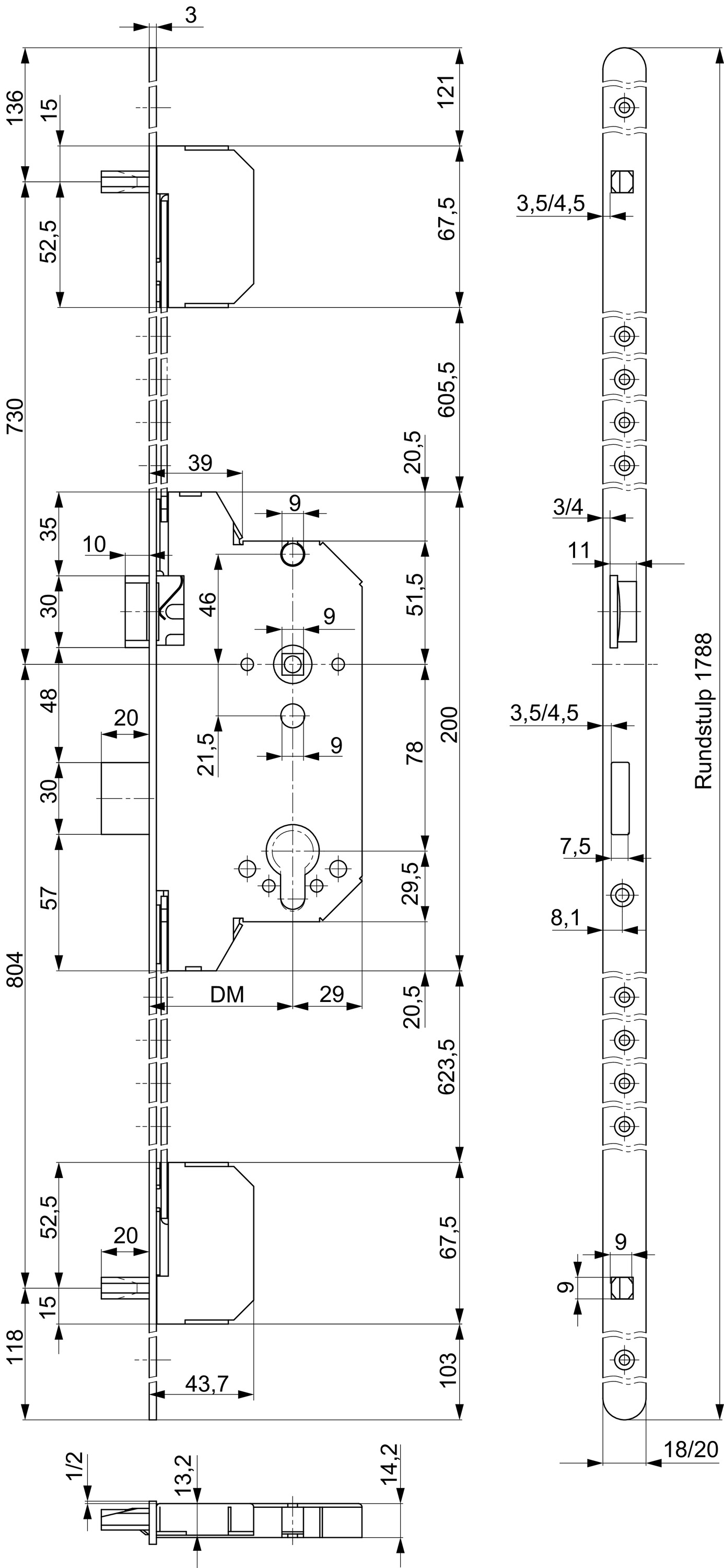

Panic security multi-point locking system 1859PDa

Overview of Advantages

• Deadbolt stroke, single rotation, 20mm each
• Version with round cylinder or profile cylinder
• Backset: 60-80mm
• No
• Certification according to EN 1125
• Certification according to EN 1634-1 to 3
• Intrusion resistance up to Class RC3 achievable in suitable door systems

Product description

• With this multi-point locking system, a door handle is mounted on both sides. The closed door can be opened from the inside via the panic function (outwards opening) in the lock. The spindle (follower) is split with panic function D. When the handle is actuated from the inside, the door can also be opened automatically from the outside, i.e. the handle is engaged on the outside and the rescue measures are not obstructed. With this function, the door must be locked with the key again to prevent the door from being opened from the outside.

Area of Application

• Escape door technology in commercial and public buildings with increased security, for new construction and renovations

Note

• Thumbturn cylinders may not be used
• On the frame side, only use bolt switch contact MSL 1886.
• Use special profile half spindle MSL 5968
