Panic security multi-point locking system 1859PE

Panic function E, latch blocking

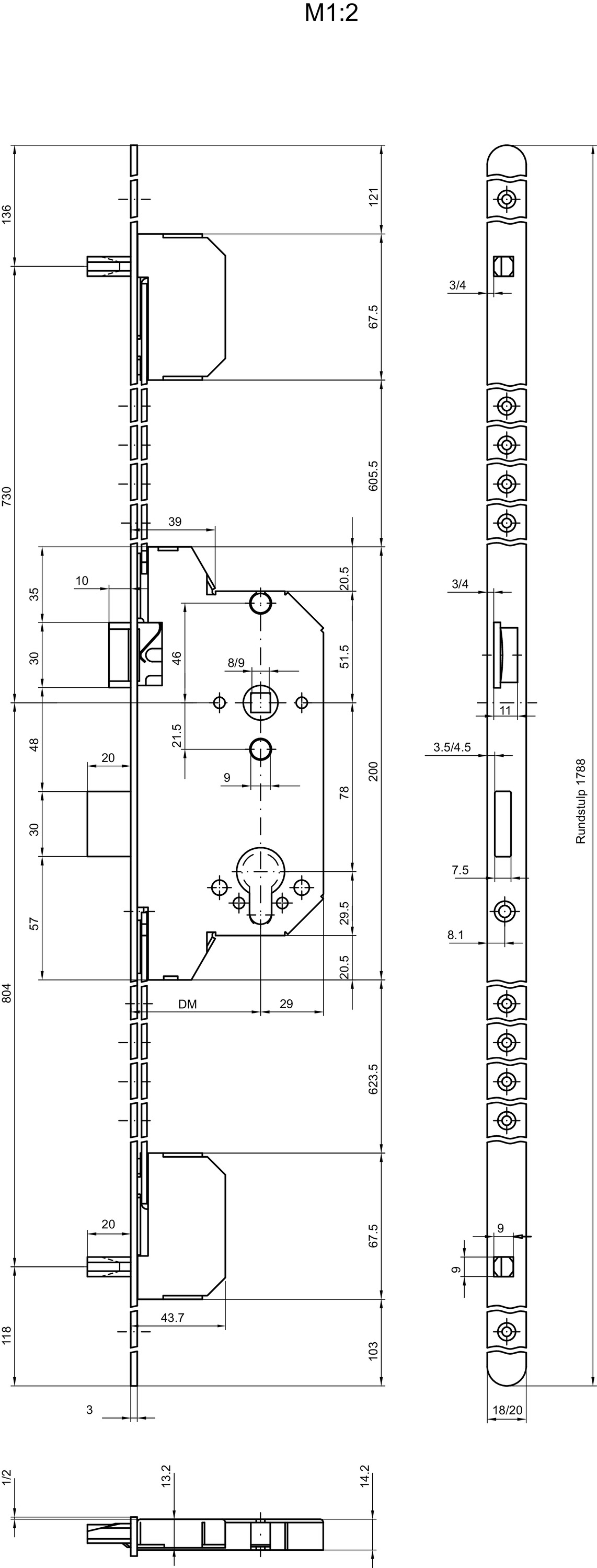

Product image

Overview of Advantages

Deadbolt stroke, single rotation, 20mm each
Version with round cylinder or profile cylinder
Backset: 60-80mm
No
Certification according to EN 1125
Certification according to EN 1634-1 to 3
Intrusion resistance up to Class RC3 achievable in suitable door systems

Product description

With this multi-point locking system, a door handle, panic bar or push bar is used for operation on the inside. A rod or knob plate can be mounted on the outside depending on the architectural specifications. The inside handle is permanently attached to the lock mechanism and thus enables the lock to be unlocked and the door to be opened from the inside, thus ensuring that people can always leave the building or area (panic function).

Area of Application

Entrance and private service doors
Security doors, escape route and fire doors

Note

Thumbturn cylinders may not be used
On the frame side, only use bolt switch contact MSL 1886.

Technical data

Bolt throw	20 mm
Latch	not reversible
Distance	78 mm
Forend shape	rounded
Latch material	Steel nickel-plated
material bolt	Steel nickel-plated
Panic function	E
Alternative function	Yes
Material faceplate	Inox
material bolt	Steel
Follower	9, one-piece
Dimensions of latch bolt mating component	Deadbolt stroke, single rotation, 20mm each

Variants that can be ordered

Order number	Type of cylinder	Backset	Faceplate dimensions	Forend shape	Follower	DIN-direction
11731049	RZ – round cylinder	60	1788x18x3	rounded	9, one-piece	Right
11731050	RZ – round cylinder	60	1788x18x3	rounded	9, one-piece	Left
11731051	RZ – round cylinder	70	1788x18x3	rounded	9, one-piece	Right
11731052	RZ – round cylinder	70	1788x18x3	rounded	9, one-piece	Left
11731053	RZ – round cylinder	80	1788x18x3	rounded	9, one-piece	Right
11731054	RZ – round cylinder	80	1788x18x3	rounded	9, one-piece	Left
11731055	PZ – profile cylinder	60	1788x18x3	rounded	9, one-piece	Right
11731056	PZ – profile cylinder	60	1788x18x3	rounded	9, one-piece	Left
11731057	PZ – profile cylinder	70	1788x18x3	rounded	9, one-piece	Right
11731058	PZ – profile cylinder	70	1788x18x3	rounded	9, one-piece	Left
11731059	PZ – profile cylinder	80	1788x18x3	rounded	9, one-piece	Right
11731060	PZ – profile cylinder	80	1788x18x3	rounded	9, one-piece	Left
11731401	RZ – round cylinder	60	1788x20x3	rounded	9, one-piece	Right
11731402	RZ – round cylinder	60	1788x20x3	rounded	9, one-piece	Left
11731403	RZ – round cylinder	70	1788x20x3	rounded	9, one-piece	Right
11731404	RZ – round cylinder	70	1788x20x3	rounded	9, one-piece	Left
11731405	RZ – round cylinder	80	1788x20x3	rounded	9, one-piece	Right
11731406	RZ – round cylinder	80	1788x20x3	rounded	9, one-piece	Left
11731407	PZ - profile cylinder	60	1788x20x3	rounded	9, one-piece	Right
11731408	PZ - profile cylinder	60	1788x20x3	rounded	9, one-piece	Left
11731409	PZ - profile cylinder	70	1788x20x3	rounded	9, one-piece	Right
11731410	PZ - profile cylinder	70	1788x20x3	rounded	9, one-piece	Left
11731411	PZ - profile cylinder	80	1788x20x3	rounded	9, one-piece	Right
11731412	PZ - profile cylinder	80	1788x20x3	rounded	9, one-piece	Left
