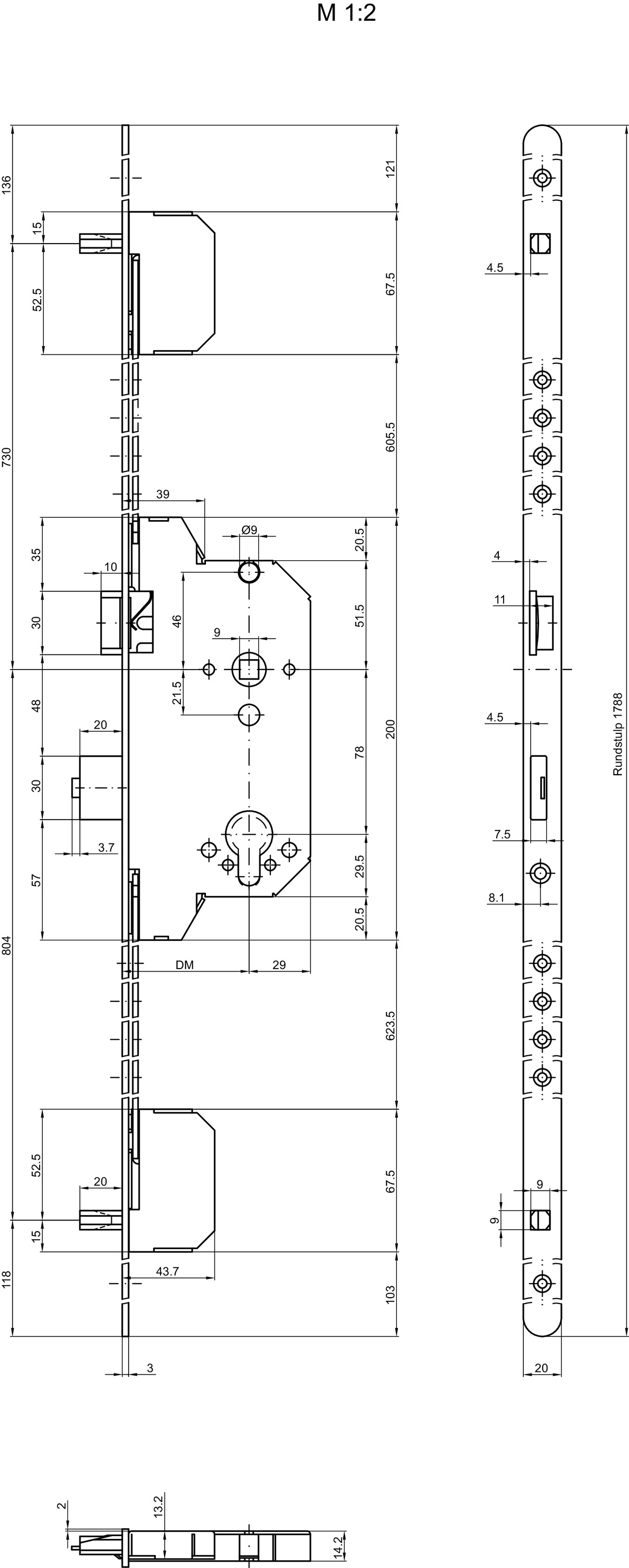

Panic security multi-point locking system 1859PE-ZF

Overview of Advantages

• Deadbolt stroke, single rotation, 20mm each
• Version with round cylinder or profile cylinder
• Backset: 60-80mm
• No
• Certification according to EN 1125
• Certification according to EN 1634-1 to 3
• Intrusion resistance up to Class RC3 achievable in suitable door systems

Product description

• With this multi-point locking system, a door handle, panic bar or push bar is used for operation on the inside. A rod or knob plate can be mounted on the outside depending on the architectural specifications. The inside handle is permanently attached to the lock mechanism and thus enables the lock to be unlocked and the door to be opened from the inside, thus ensuring that people can always leave the building or area (panic function).

Area of Application

• double-leaf security doors, private service doors, fire doors and escape route doors (standard doors)

Note

• Thumbturn cylinders may not be used
• In use with the panic passive leaf locking system 1860
