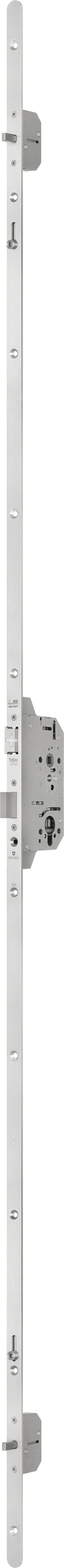

Security multi-point lock system 30740

Overview of Advantages

• DIN right hand and left hand adjustable without tools
• Six-point locking system

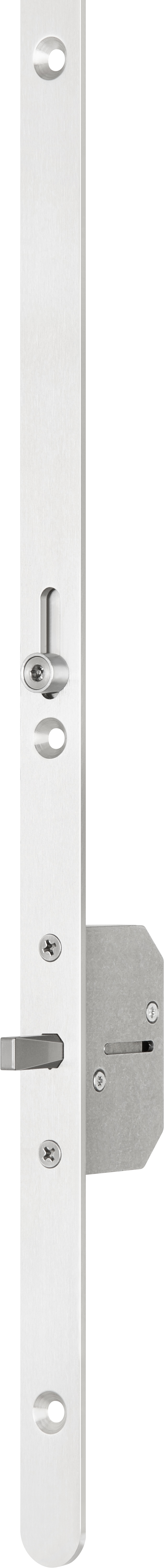

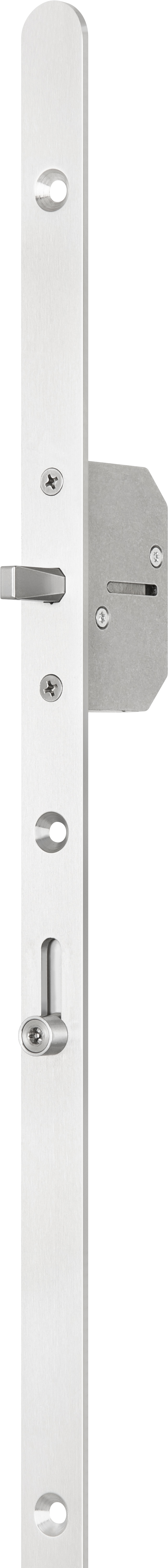

• Two additional bolts and two adjustable roller pins
• Latch blocking
• Bolt and additional bolt stroke 20 mm
• Single turn
• Automatic handle reset
• Conversion from handle to key and key to handle operation possible

Product description

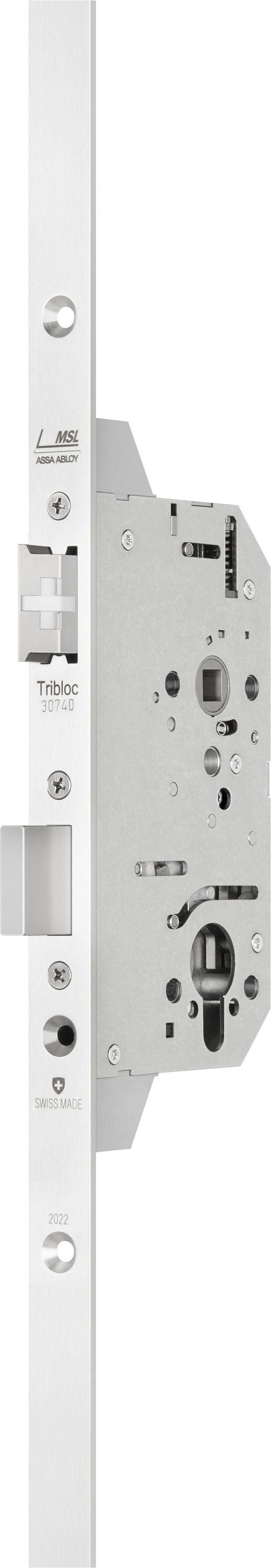

• A handle is mounted on both sides. If the door closes, the roller pins are moved downwards to the locking position in the striking plate in the door frame via an upwards handle movement and the additional bolts extend. This pulls the door leaf to the door frame. The eccentric roller pins enable easy readjustment if necessary. Turning the key extends the main bolt. The latch and the two roller pins are now blocked, so the lock is locked on six points. Turning the key in opening direction retracts the main bolt. Moving the handle downwards moves the roller pins into the opening position and the additional bolts are retracted. The latch is then retracted.

Area of Application

• For entrance doors and apartment entrance doors at risk of warping
• For security and fire doors in commercial and residential buildings

Note

• On the frame side, only use bolt switch contact MSL 1886.
