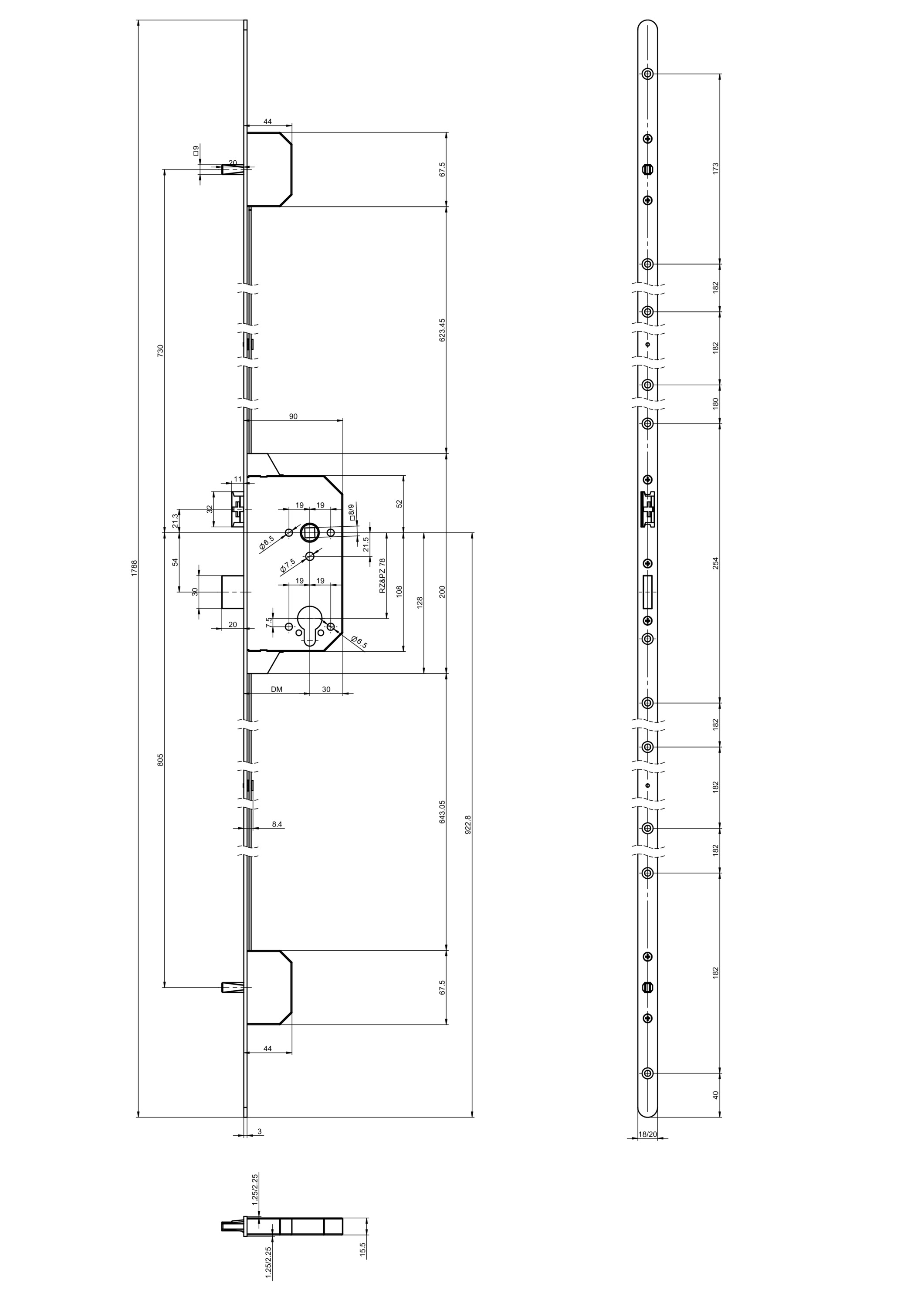

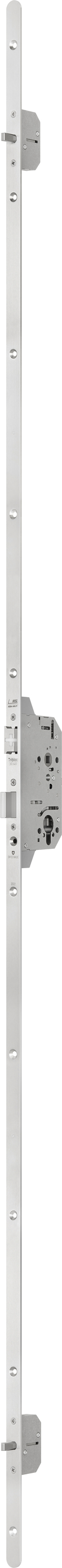

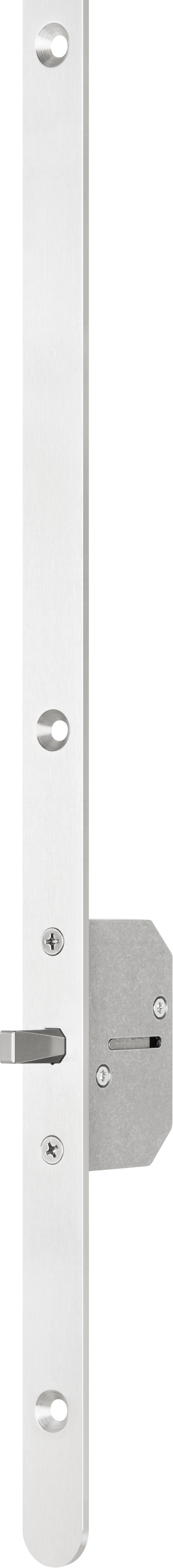

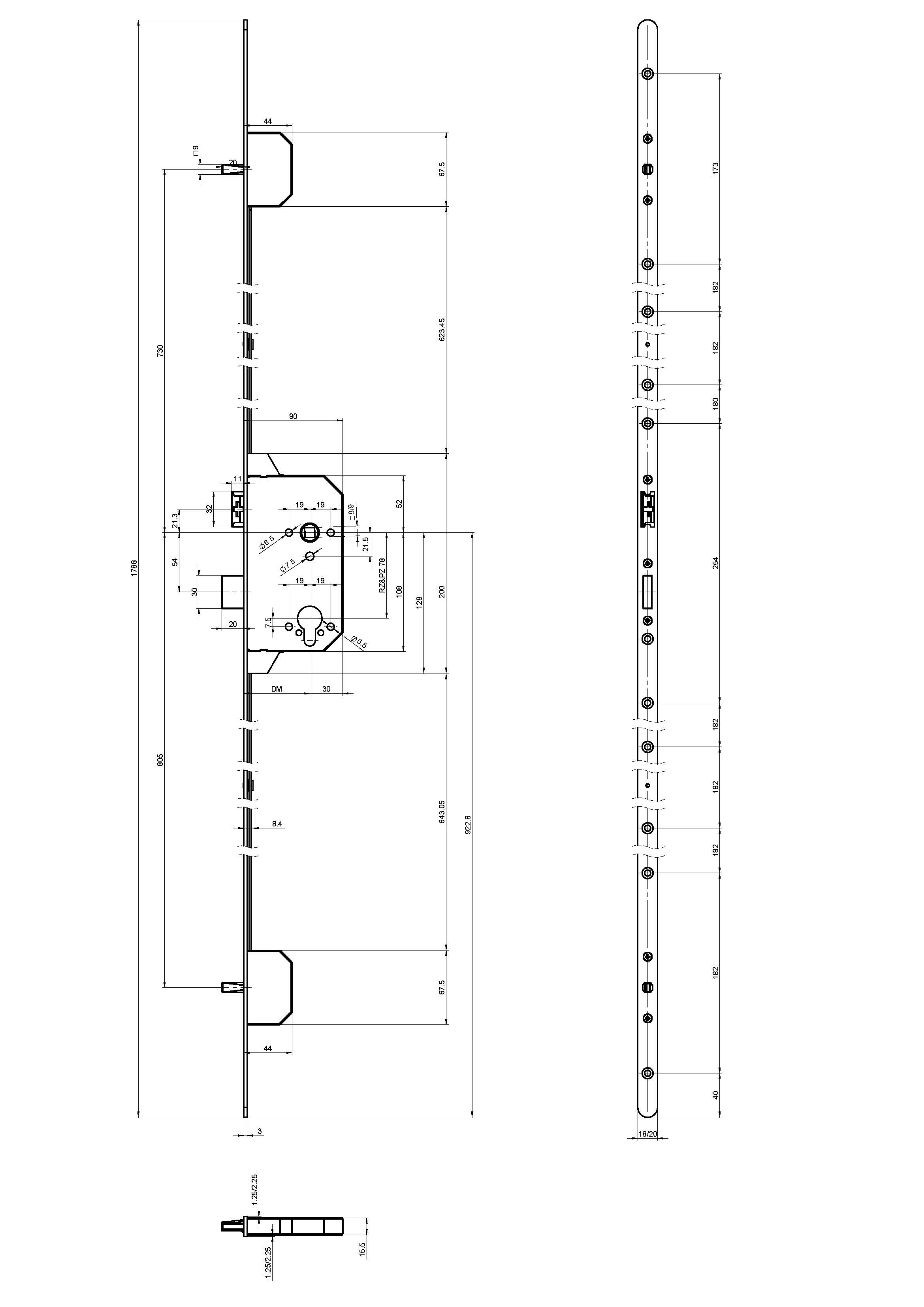

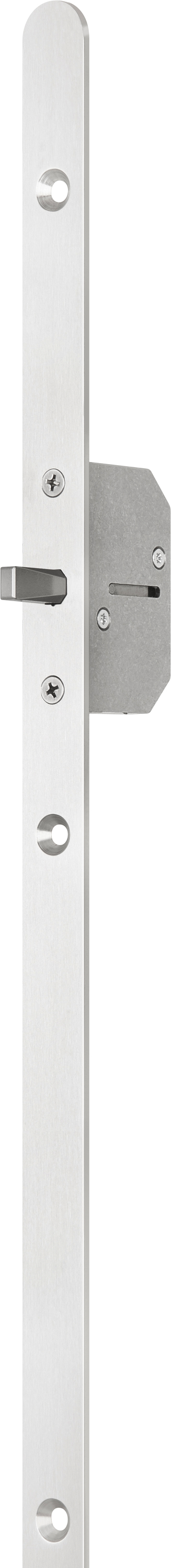

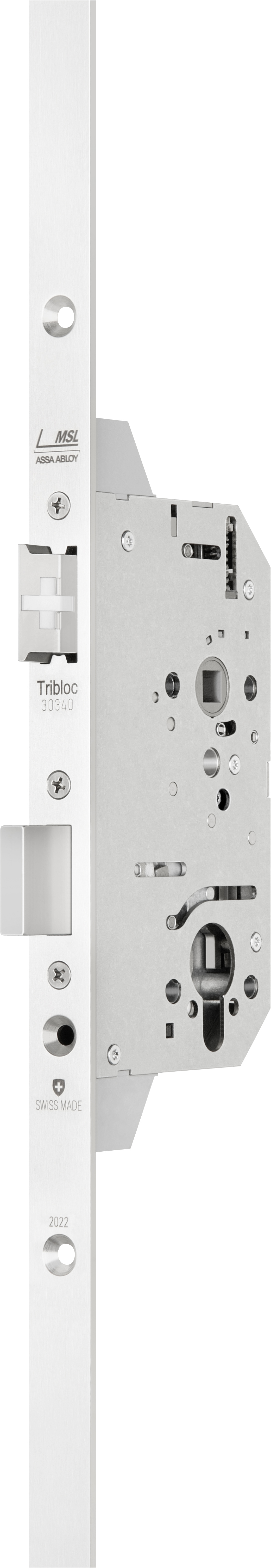

Security multi-point lock system 30340

Overview of Advantages

• DIN right hand and left hand adjustable without tools
• Four-point locking system
• Two additional bolts and one lock bolt
• Latch blocking
• Bolt and additional bolt stroke 20 mm
• Single turn
• Automatic handle reset
• Conversion from handle to key and key to handle operation possible

Product description

• With the PolyTribloc, the handle operation or key operation function can be set before installation.
• If the door is closed, all three bolts are extended with a key rotation in the locking direction and both latch and bolt are blocked. Unlocking takes place by turning the key in the opening direction, all three bolts are retracted. To lock the lock with less force, locking can take place by moving the handle upwards after half a turn of the key in the locking direction. The key then only needs to be moved to the removal position.
• When the handle is moved upwards, the additional bolts extend. Turning the key in locking direction extends the main bolt. This blocks the latch and additional bolts. Turning the key in opening direction retracts the main bolt. The additional bolts and latch are retracted downwards with a handle movement.

Area of Application

• For entrance doors and apartment entrance doors
• For security and fire doors in commercial and residential buildings

Note

• On the frame side, only use bolt switch contact MSL 1886.
• PU corresponds to a pack of 10 including depot fee for reusable packaging
