New spring concept with strong compression springs for heavy handles
bolt stroke: single-turn 20 mm,
Certification according to EN 179
Certification according to EN 1125
Approved in accordance with prEN15685
Certification according to EN 1634-1 to 3
Intrusion resistance up to Class RC3 achievable in suitable door systems

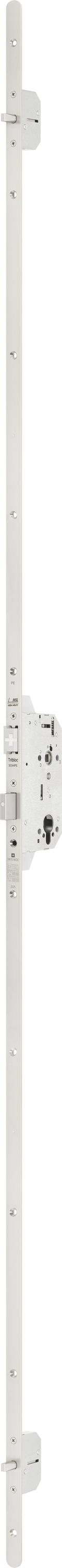

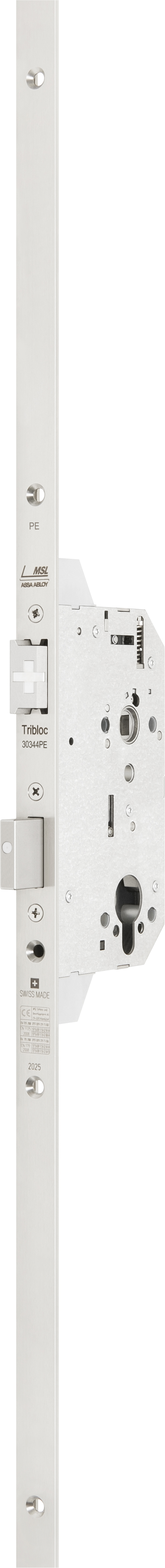

Product description
These mortice locks have a door handle, panic door fitting or push bar on the inside of the door. When locked, the door cannot be opened from the outside, but can always be opened from the inside using the door handle, panic door fitting or push bar (panic function). The square spindle (nut) is continuous with the panic function E. Depending on the architectural requirements, a bar or knob plate can be fitted on the outside. The door can be opened from the outside using the key via the changeover function.
Area of Application
Security doors, escape route and fire doors
Entrance and private service doors
Note
Not suitable for rotary knob cylinders
DIN direction can be changed (factory setting: DIN left)
Only use bolt switch contact MSL 1886 on the frame side
