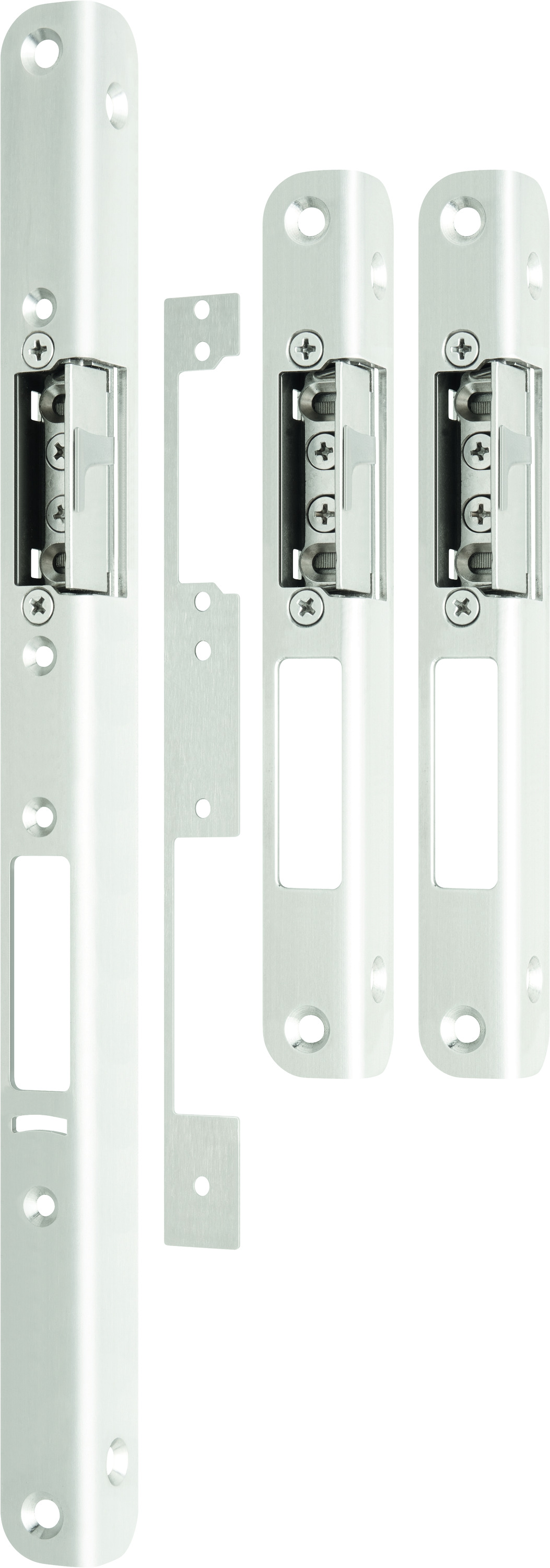

Face plate for passive leaf lock 24413-H-STW

Note

  • Set
Technical data
Area of applicationWood
SurfaceBrush-finished matt
Dimension320x21/22x3
Forend shapesquare, angled
MaterialInox
Variants that can be ordered
Order number
Description
14501059
14501060
Downloads for Product

General

Product sheet Face plate for passive leaf lock 24413-H-STW (PDF)

Certificates and attests

Certificate of constancy of performance EN 1125 FlipLock (PDF, 397 KB)

Medias

Product image (JPG, 365 KB)
Product image (EPS, 49.76 MB)

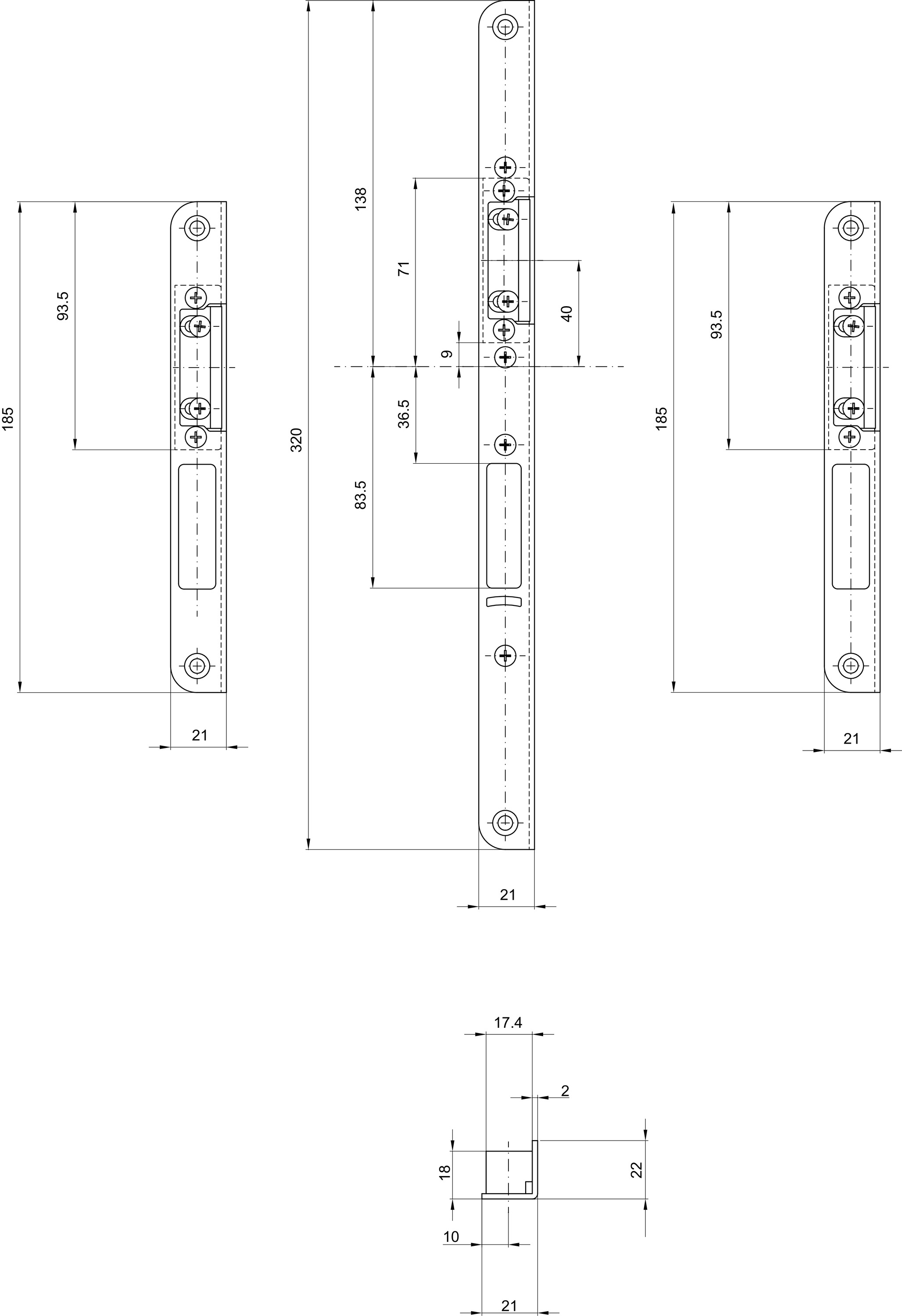

Technical drawing (JPG, 263 KB)
