Face plate for passive leaf lock 24413-M-STF
Note
- Set
| Area of application | Metal |
| Surface | Brush-finished matt |
| Dimension | 320x24/60x3 |
| Forend shape | square, flat |
| Material | Inox |
| Order number | Description |
|---|---|

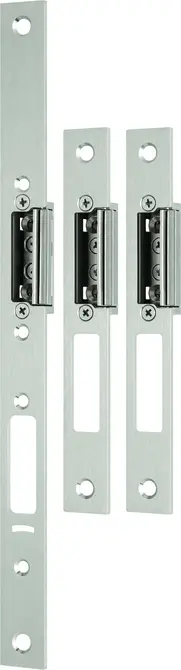

| 14501053 | Set flat face plate suitable for passive leaf locking system 24413-M and 24473-M for metal doors. INOX mb, square, suitable for DIN left and right hand use, adjustable by minus 1 to plus 3mm. 1 x flat face plate 320mm long: 24mm wide: 3mm thick: 2 x additional striking plates 185mm long: 24mm wide: 2mm thick |
| 14501057 | Flat long face plate suitable for passive leaf locking system 24413-M and 24473-M for metal doors. INOX mb, square, suitable for DIN left and right hand use, adjustable by minus 1 to plus 3mm.1 x flat long face plate 1950mm long: 24mm wide: 3mm thick |
